2 - SEPARATING THE TRACTOR
30

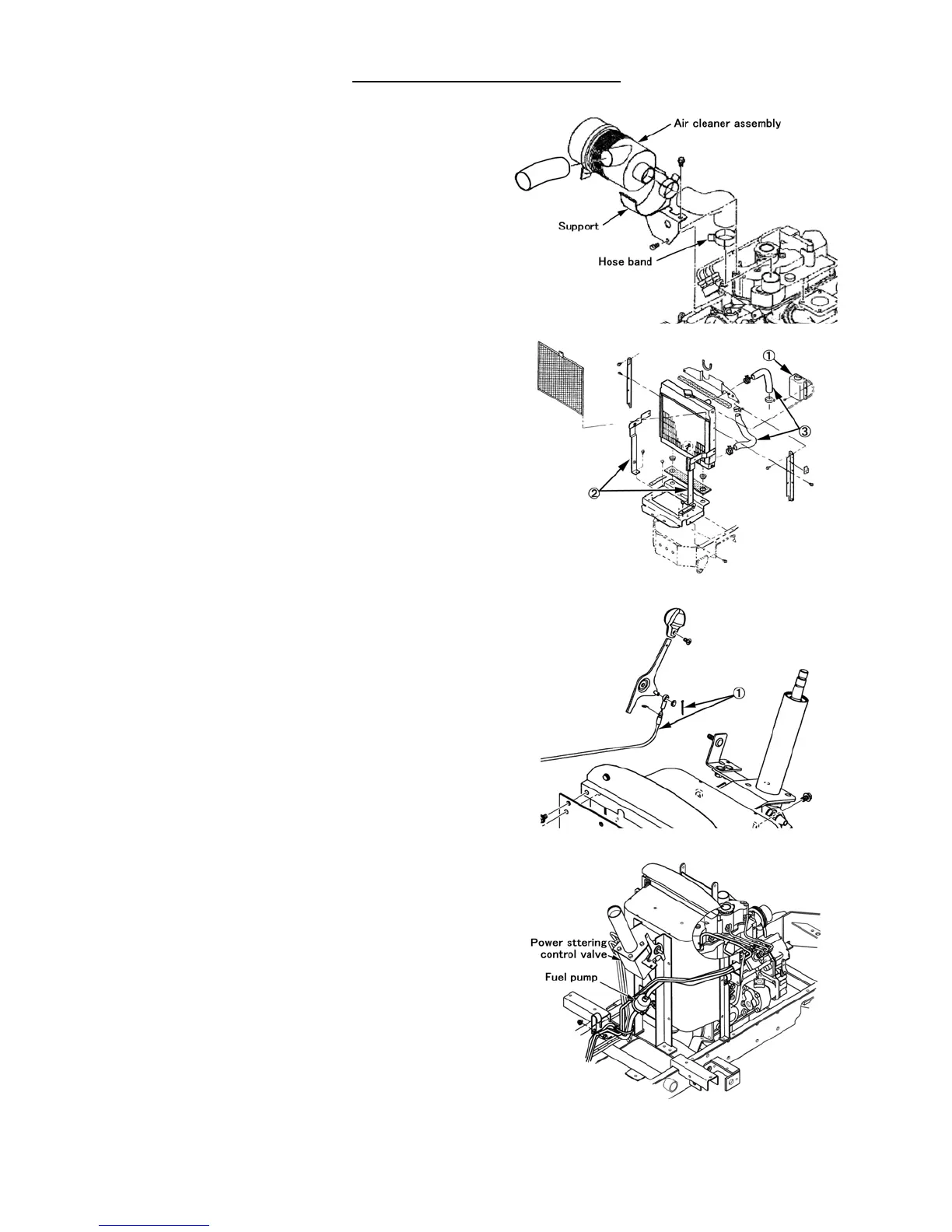

5) Air cleaner assembly
➀ Untighten the hose band of the intake manifold.
➁ Remove the air cleaner assembly from the air
cleaner support.
6) Radiator assembly
① Remove the reserve tank from the guard support.
② Remove the radiator supports (guard support).
③ Untighten the hose bands and disconnect the radiator
hoses.
④ Disconnect the drain hoses from the drain cock.
7) Throttle cable
➀ Remove the cotter pin from the throttle lever and
disconnect the throttle cable.
8) Power steering control valve, Fuel pump
① Disconnect the oil pipes from the power steering
control valve.
② Disconnect the fuel hoses and wire harness
connector from the fuel pump.
③ Remove the fuel pump from the steering column.
