ENGINE SYSTEMS
52
5

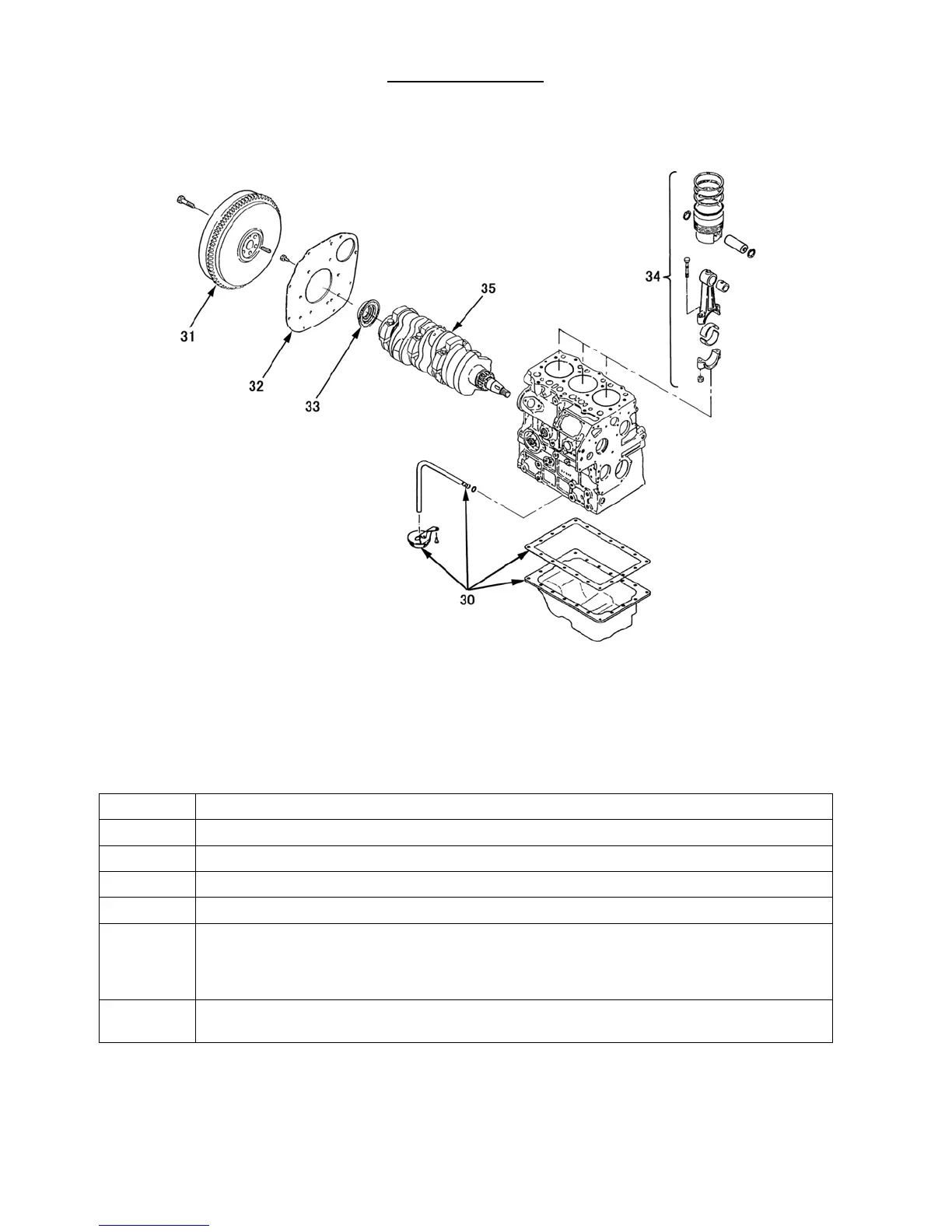

Order Parts Name
30 Oil pan · Gasket · Suction filter · Suction pipe
31 Fly wheel
32 Rear plate
33 Oil seal
34 Piston and connecting rod assembly
NOTE:
1. Before extracting piston, remove the carbon deposit from the TDC in the cylinder.
2. Place the connecting rod, cap and bearing removed in order of the cylinders.
35 Crank shaft and bearing holder assembly
NOTE: Remove the four bolts, and draw out the crank shaft and bearing holder assembly as a set.
