APPENDIX

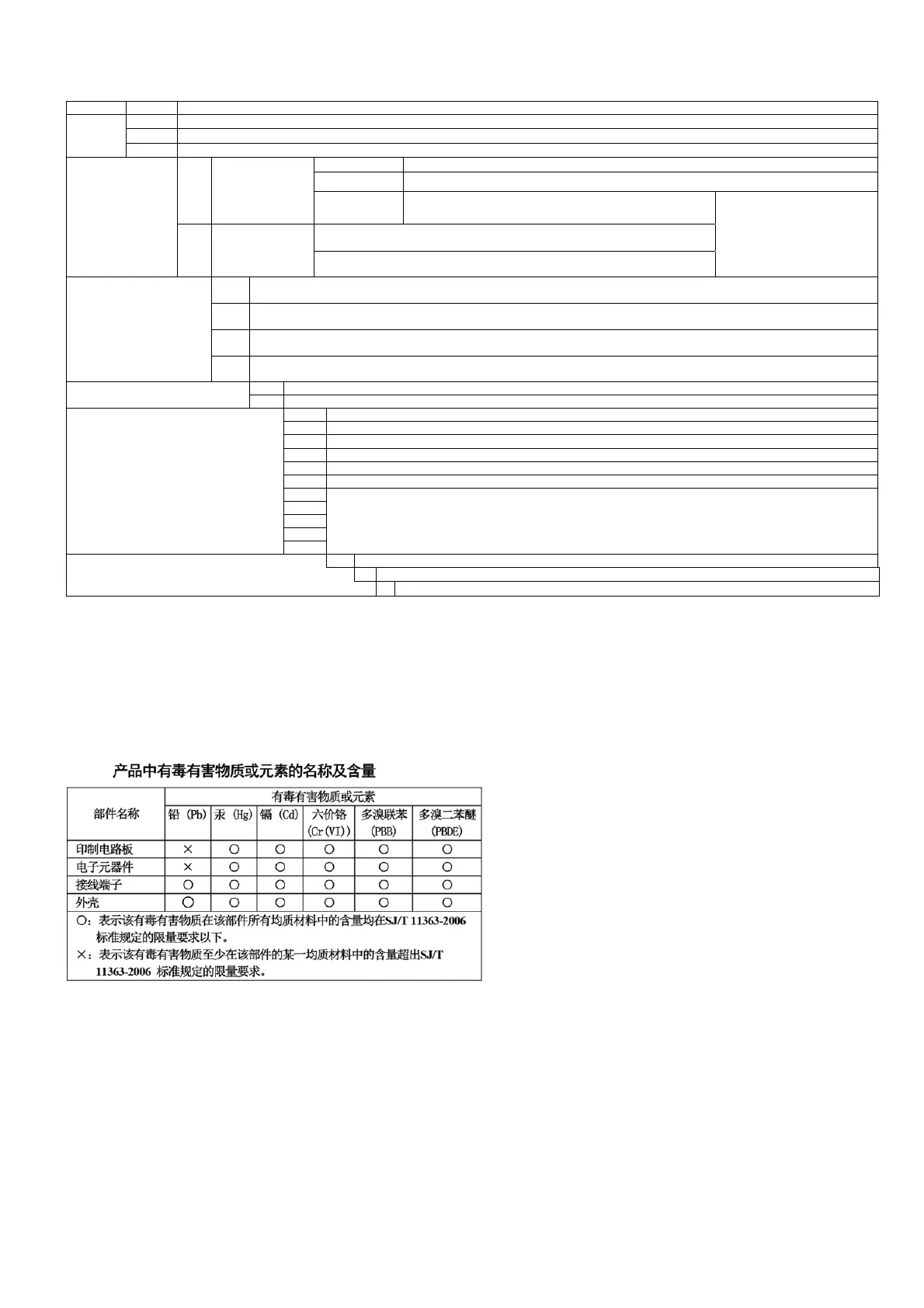

Item Code Specifications
1.Series
SR1 
48×48mm DIN Digital Controller
SR3 
96×96mm DIN Digital Controller
SR4 
96×48mm DIN Digital Controller
2.Input
8 Multi input
Thermocouple
B,R,S,K,E,J,T,N,PLⅡ,Wre5-26,{U,L(DIN43710)}
R.T.D
Pt100／JPt100
Voltage (mV)
−10 - 10，0 - 10，0 - 20，0 - 50，10 - 50，0 - 100mV DC
Input resistance: Min. 500k
Range scalable
(reverse scaling not available)
range : −1999–9999
span：10–5000
6 Voltage
−1–1，0–1，0–2，0–5，1–5，0–10V DC
Input resistance: Min. 500k
For 0 - 20mA/4 - 20mA input, use 0 - 5V/1 - 5V range with an
external resistor of 250±0.1% (not included)
3.Control output
Y
-
Contact: 1a x 1, Contact capacity: 240V AC 2A/resistive load
Proportional cycle: 1 - 120 sec.
I -
Current: 4 - 20mA DC
Load resistance: 600 max.
P -
SSR drive voltage: 12V 1.5V DC/30mA max.
Proportional cycle: 1 - 120 sec.
V -
Voltage: 0 - 10V DC
Load current: 2mA max.
4. Event
0 1a×1 (standard) 240V AC 1A or 24V DC 1A / resistive load
1 1a×2 240V AC 1A or 24V DC 1A / resistive load
5. Remarks
0 Without (Case color : Black)
9 With (Case color : Black)
W Without (Case color : Ivory)
X With (Case color : Ivory)
C China-standard (Chinese nameplate)
Z China-standard (Chinese nameplate) with extra features
1-8
Customized firmware
A
B
D-V
Y
6. Product information
-A Conformed to UL 610101-1 3rd Edition
0 Conformity to other standards
0 Conformity to other standards
