Shimaden SR90 Series User Manual

23

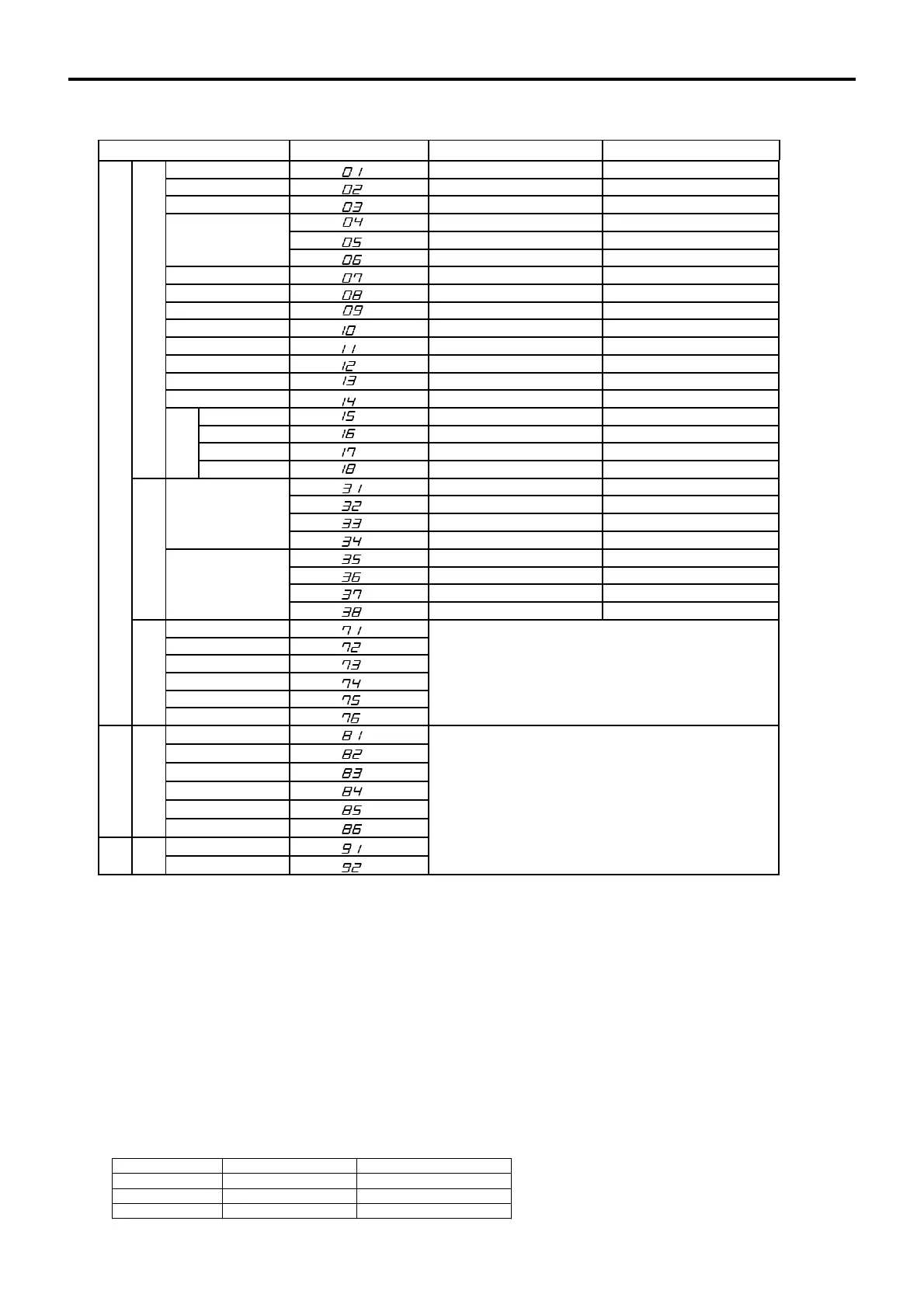

7. Table of Measuring Range Codes
Select a measuring range from the following table.
A change of the code will initialize all date related to the measuring range.
Input type Code Measuring range (°C) Measuring range (°F)
Universal Input
Thermocouple
B *1 0 to 1800 0 to 3300
R 0 to 1700 0 to 3100
S 0 to 1700 0 to 3100
K
*2 í199.9 to 400.0 í300 to 750
0.0 to 800.0 0 to 1500
0 to 1200 0 to 2200
E 0 to 700 0 to 1300
J 0 to 600 0 to 1100
T *2 í199.9 to 200.0 í300 to 400
N 0 to 1300 0 to 2300
PL II *3
0 to 1300 0 to 2300
C(WRe5-26) *4 0 to 2300 0 to 4200
U *5 *2 í199.9 to 200.0 í300 to 400
L *5 0 to 600 0 to 1100
Kelvin
K *6 10.0 to 350.0 K 10.0 to 350.0 K
AuFe-Cr *7 0.0 to 350.0 K 0.0 to 350.0 K
K *6 10 to 350 K 10 to 350 K
AuFe-Cr *7 0 to 350 K 0 to 350 K
R.T.D.
Pt100
í200 to 600 í300 to 1100
í100.0 to 100.0 í150.0 to 200.0
í50.0 to 50.0 í50.0 to 120.0
0.0 to 200.0 0.0 to 400.0
JPt100
í200 to 500 í300 to 1000
í100.0 to 100.0 í150.0 to 200.0
í50.0 to 50.0 í50.0 to 120.0
0.0 to 200.0 0.0 to 400.0
mV
í10 to 10mV
Initial value: 0.0 to 100.0
Input scaling setting range: í1999 to 9999 digit
Span: 10 to 5000 digit
Position of decimal point: None 1, 2 or 3 decimal places
Lower limit value < higher limit value
0 to 10mV
0 to 20mV
0 to 50mV
10 to 50mV
0 to 100mV
Voltage
V
í1 to 1V
Initial value: 0.0 to 100.0
Input scaling setting range: í1999 to 9999 digit
Span: 10 to 5000 digit
Position of decimal point: None 1, 2 or 3 decimal places
Lower limit value < higher limit value
0 to 1V
0 to 2V
0 to 5V
1 to 5V
0 to 10V
Curren
t
m
A
0 to 20mA
4 to 20mA
Thermocouple: B, R, S, K, E, J, T, N: JIS/IEC
R.T.D.: Pt100: JIS/IEC, JPt100: Former JIS
*1 Thermocouple B: Accuracy guarantee not applicable to 400°C (752°F) and below.
*2 Thermocouple K, T, U: Accuracy of those whose readings are below í100°C is ±(0.7% FS+ 1digit)
*3 Thermocouple PLII: Platinel
*4 Thermocouple C(WRe5-26): ASTM E988-96 (Reapproved 2002)
*5 Thermocouple U, L: DIN 43710
*6 Thermocouple K: Accuracy is as follows;
Temperature range External CJ Internal CJ
10.0 to 30.0 K ±(2.0%FS + 40
Υ+1digit)
30.0 to 70.0 K ±(1.0%FS + 14
Υ+1digit)
70.0 to 170.0 K ±(0.7%FS + 6
Υ+1digit)
170.0 to 270.0 K ±(0.5%FS + 3
Υ+1digit)
270.0 to 350.0 K ±(0.3%FS + 2
Υ+1digit)
*7 Thermocouple AuFe-Cr: Accuracy is as follows;
Temperature range External CJ Internal CJ
0.0 to 30.0 K ±(0.7%FS + 6
Υ+1digit)
30.0 to 70.0 K ±(0.5%FS + 3
Υ+1digit)
70.0 to 170.0 K ±(0.3%FS + 3.5
Υ+1digit)
170.0 to 280.0 K ±(0.3%FS + 2
Υ+1digit)
280.0 to 350.0 K ±(0.5%FS + 2
Υ+1digit)
NOTE: Do not use the above sensors (current/voltage, thermocouple, R.T.D.) for the measurement of power supply line.
NOTE: Unless otherwise specified, the measuring range listed below will be set as the factory default.
Input Specification/Rating Measuring Range
Universal input K thermocouple 0.0 to 800.0°C
Voltage (V) 0 to 10V DC 0.0 to 100.0
Current (mA) 4 to 20mA DC 0.0 to 100.0
