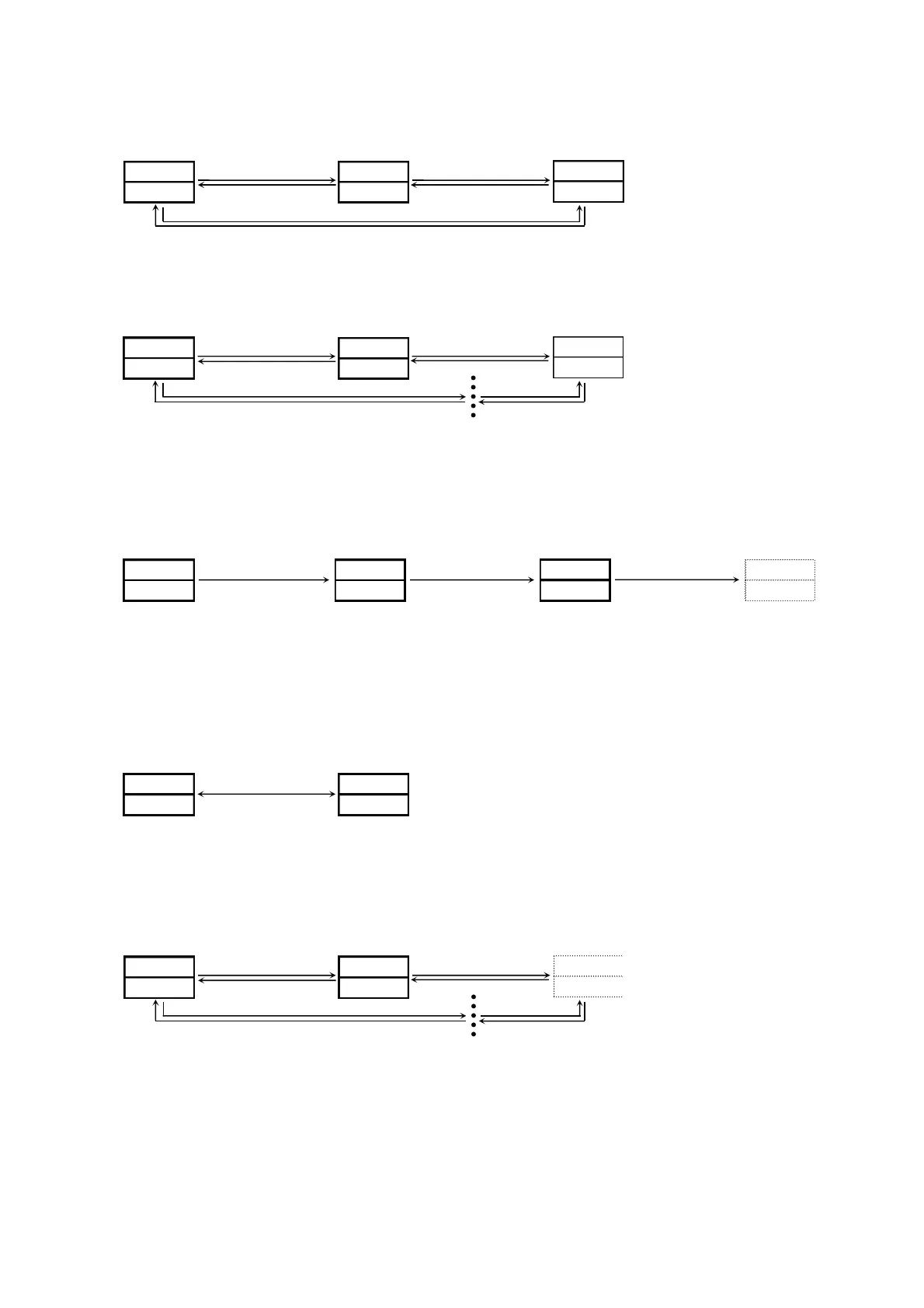

(5) Switching screens within screen group 2
The “2-0 initial screen” in screen group 2 is the PID1 setting initial screen. Each time the key is pressed, the setting initial
screen switches PID2→PID3→PID1. Pressing the key switches PID1→PID3→PID2.
Screen group 2
2-0 PID1 initial screen PID2 initial screen PID3 initial screen
Each time the key is pressed the screen display switches from the various initial screens to the next screen. If pressed when
the last screen is displayed, returns to the “2-0 initial screen.”
With screen group 2, each time the key is pressed, the screen is switched in the reverse direction.
2-0 PID1 initial screen 2-1 screen 2-2 screen
(6) Switching to screen group 3
Screen group 3 is the program screen group. It is not displayed unless it is set as an optional item.
Pressing the key on the “2-0 initial screen” switches to the “3-0 initial screen” of screen group 3.
Further pressing the key switches to the basic screen.
Screen group 0 Screen group 1 Screen group 2 Screen group 3
0-0 Basic screen 1-0 Initial screen 2-0 PID Initial screen 3-0 Initial screen
For more information on the programming function, see the “Programming Function Instructions.”
(7) Switching to screen group 4
Screen group 4 is the initial setting screen group. Various settings are made prior to using the controller.
Pressing the key on the basic screen of screen group 0 for at least 3 seconds switches to “4-0 initial screen” of screen group 4.
Pressing the key on the “4-0 initial screen” of screen group 4 for at least 3 seconds switches to the basic screen of screen group 0.
Screen group 0 Screen group 4
0-0 Basic screen 4-0 Initial screen
key
At least 3 seconds
(8) Switching screens within screen group 4
Each time the key is pressed screen display switches from the initial screens to the next screen. If pressed when the last
screen is displayed, returns to the “4-0 initial screen.”
With screen group 4, each time the key is pressed, the screen is switched in the reverse direction.
4-0 Initial screen 4-1 screen 4-2 screen
(9) Set data modification
Data is modified on the various screens by pressing the or key. The modified data is entered by pressing the key.
5-4. Auto return function
If no key operation is conducted for 3 minutes on the various screens (with the exception of the “0-2 output 1 monitoring screen”,
“0-3 output 2 monitoring screen”, “0-4 step No. monitoring screen”, “0-5 remaining time of step monitoring screen”, “0-6 number
of pattern execution monitoring screen”, “0-7 Execution PID No. monitoring screen”, “0-10 heater current 1 monitoring screen” or
“0-11 heater current 2 monitoring screen”), the mode automatically returns to the “0-0 basic screen” of screen group 0 (auto return).
