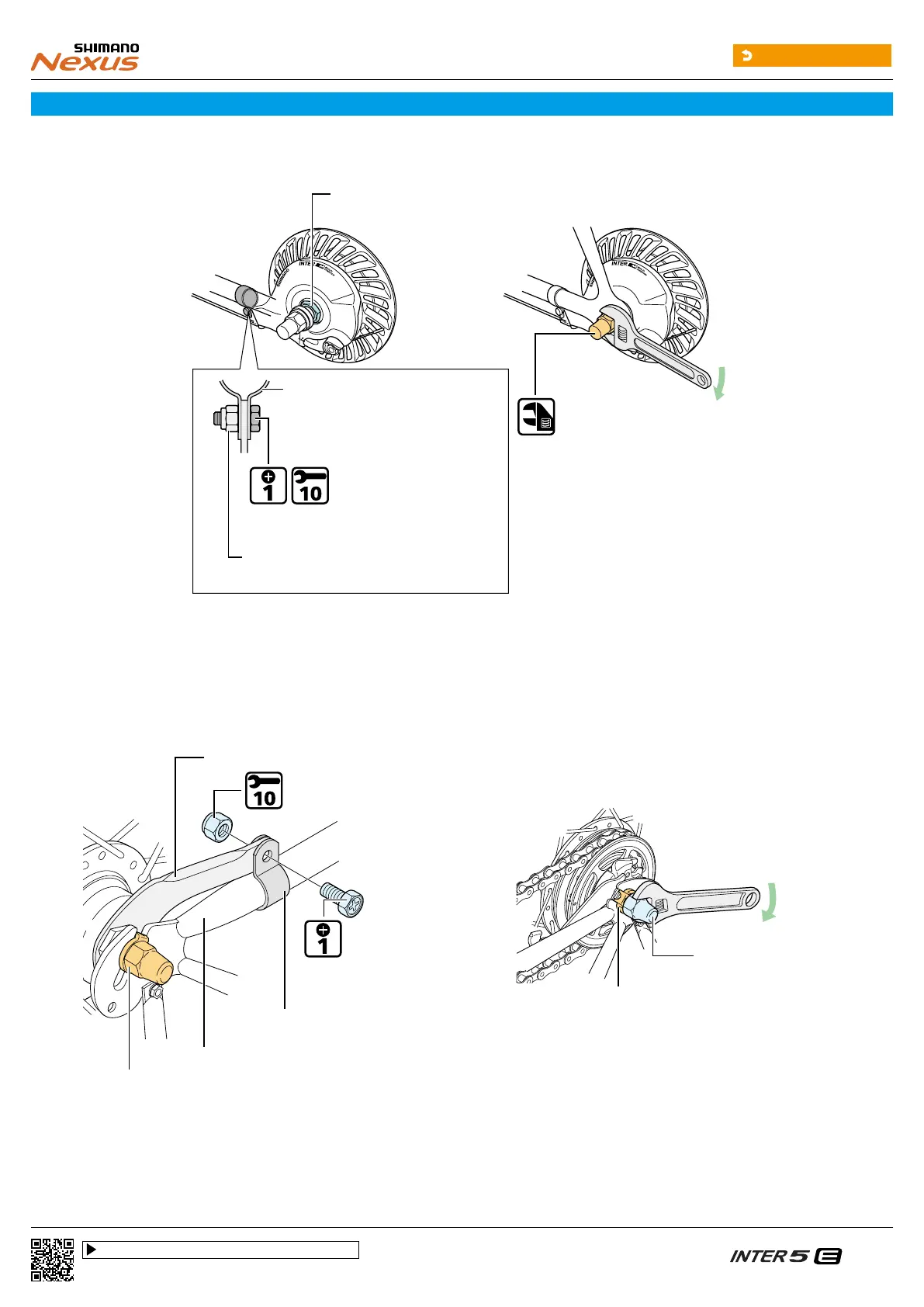

(6) Attach the brake arm with the arm clip.
Brake unit fixing nut
Cap nut
Arm clip
Clip nut
Clip bolt (M6 × 16 mm)
2 - 3 N·m
30 - 45 N·m
In the case of coaster brake specifications
(1) Secure the brake arm with the arm clip.
(2) Take up slack in the chain and secure the wheel to the frame with the cap nut.
Cap nut
Chainstay
Clip nut
Brake arm
Arm clip
Clip bolt
(M6 × 16 mm)
2 - 3 N·m
30 - 45 N·m
LOC
K
Non-turn washer
Cap nut
30 - 45 N·m
