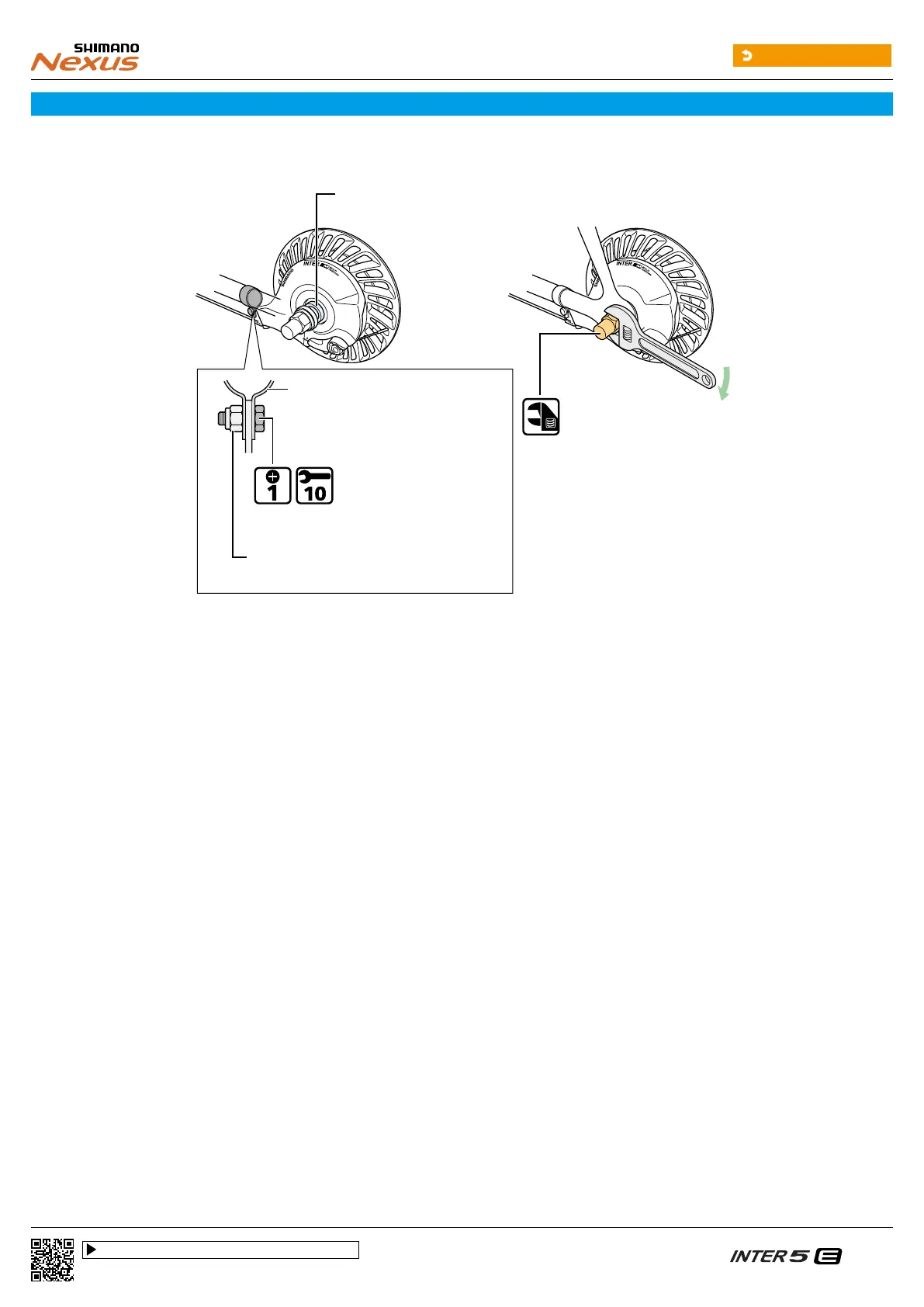

(6) Securely install with the cap nut.
Brake unit fixing washer
Cap nut
Arm clip
Clip nut
Clip bolt (M6 × 16 mm)
2 - 3 N·m
30 - 45 N·m
In the case of INTER M brake specifications (brake unit fixing nut)
(1) Attach the brake arm to the chainstay with the arm clip.
(2) Temporarily fix the clip bolt and clip nut by lightly tightening them.
(3) Take up slack in the chain, align the wheel with the frame center, and temporarily secure
it with the cap nut.
(4) Slightly loosen the cap nut, and fully tighten the brake unit fixing nut.
(5) Take up slack in the chain, align the wheel with the frame center, and secure it with the
cap nut.
