TECH TIPS

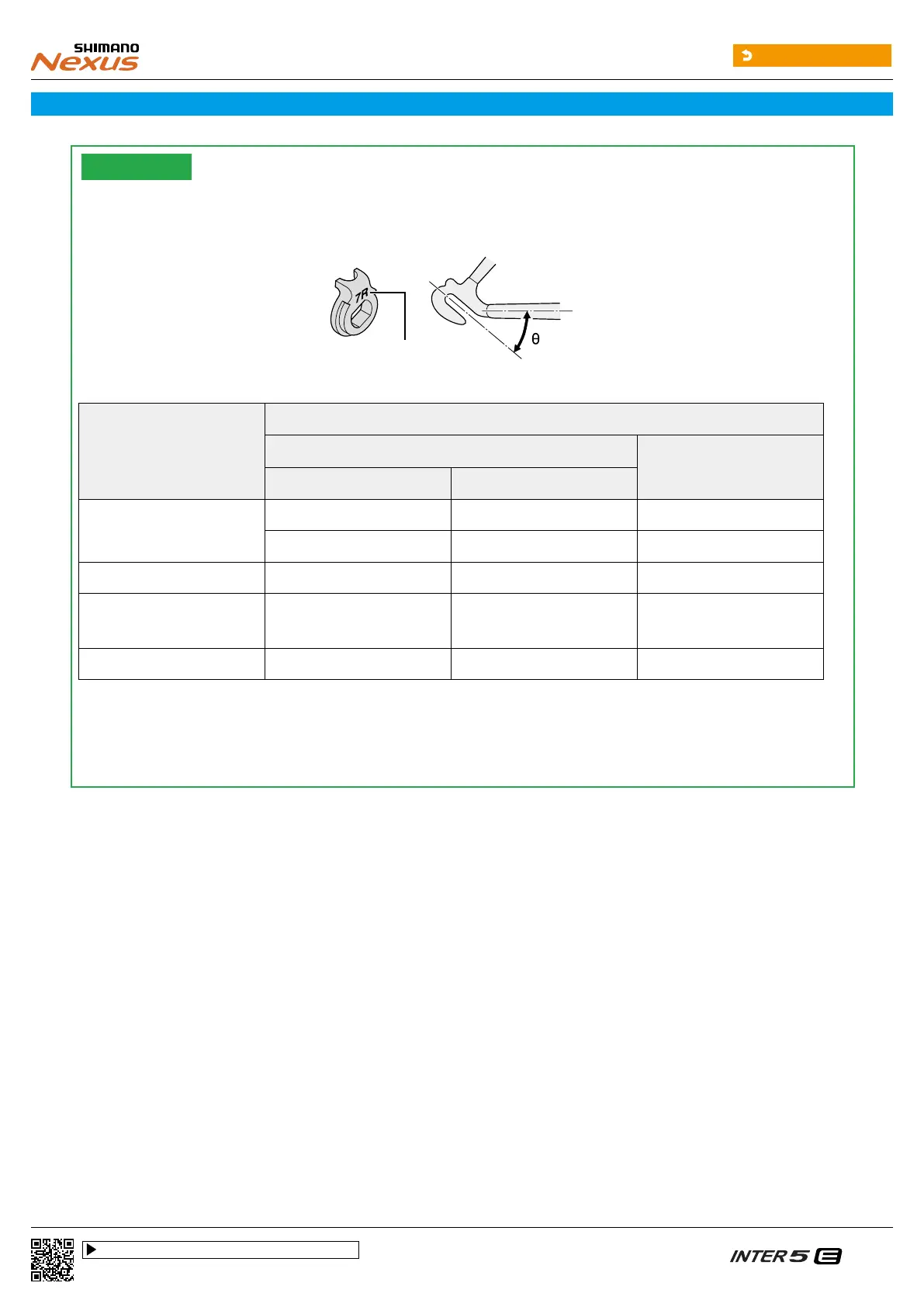

• Use a non-turn washer that matches the shape of the dropout. Different non-
turn washers are used for the left and right sides.
Mark
Dropout
Non-turn washer
Mark/Color
Size
For right For left
Standard
5R/Yellow 5L/Brown
θ ≤ 20°
7R/Black 7L/Gray
20° ≤ θ ≤ 38°
Reversed 6R/Silver 6L/White
θ = 0°
Reversed (full chain
case)
5R/Yellow 5L/Brown
θ = 0°
Vertical 8R/Blue 8L/Green
θ = 60° - 90°
* Vertical type: Does not include the coaster specifications.
• If the hub nuts are cap nuts, use a frame with dropouts that are at least 7 mm
thick.
3. Secure with the cap nut.
In the case of INTER M brake specifications (brake unit fixing washer)
(1) Check that the INTER M brake is securely installed with the brake unit fixing washer.
(2) Attach the brake arm to the chainstay with the arm clip.
(3) Temporarily fix the clip bolt and clip nut by lightly tightening them.
(4) Take up slack in the chain and secure the wheel to the frame with the cap nut.
(5) Attach the brake arm with the arm clip.
