Dealer’s Manual (SG-C7000-5V / SG-C7000-5R / SG-C7000-5C / SG-C7000-5D)
Return to index page
Click here for the latest Dealer's Manual
4. Install the inner cable mounting bolt unit.

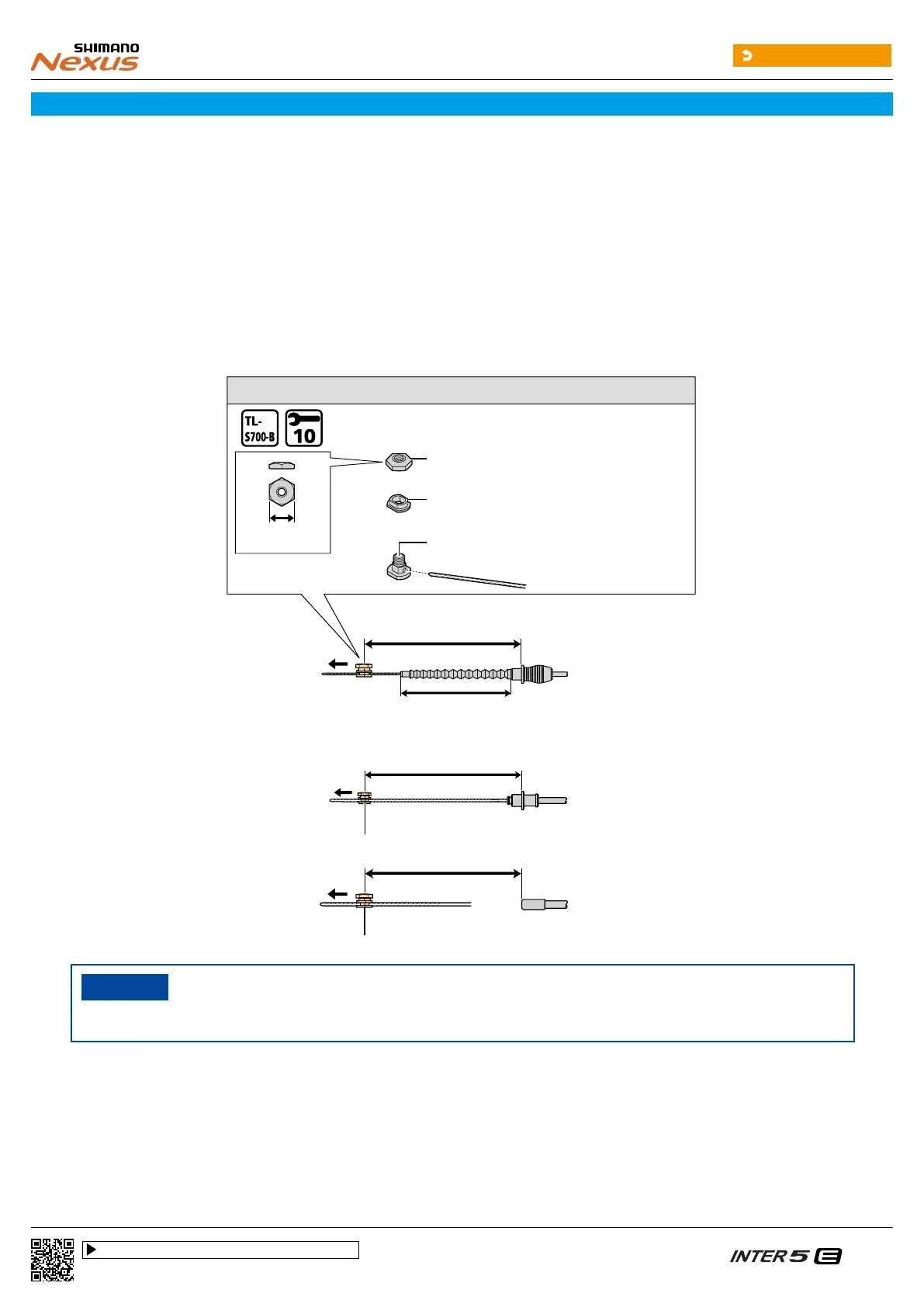

After checking that the end of the outer casing is securely set in the cable adjustment barrel
of the shifting lever, secure it at the specified length while pulling the inner cable.
SG-S7001 (internal 11-speed): 184 mm
SG-S7001 (internal 8-speed): 145 mm
SG-C6001 / SG-C6011 (internal 8-speed): 101 mm
SG-C7000 / SG-C7002 (internal 5-speed): 145 mm
Specified length
ALFINE: 75 mm or less
NEXUS: 63 mm or less
Specified length
Specified length
Inner cable mounting bolt unit
Inner cable mounting nut
Inner cable fixing washer (black)
Inner cable mounting bolt (black)
10 mm
3.5 - 5.5 N·m
NOTICE
• Use the special inner cable mounting bolt unit.
