Dealer’s Manual (SG-C7000-5V / SG-C7000-5R / SG-C7000-5C / SG-C7000-5D)
Return to index page
Click here for the latest Dealer's Manual
TECH TIPS
• When installing the inner cable mounting bolt unit, use the setting tool TL-
S700-B/TL-CJ40.
TL-S700-B (145 mm / 184 mm) TL-CJ40 (101 mm / 127 mm)

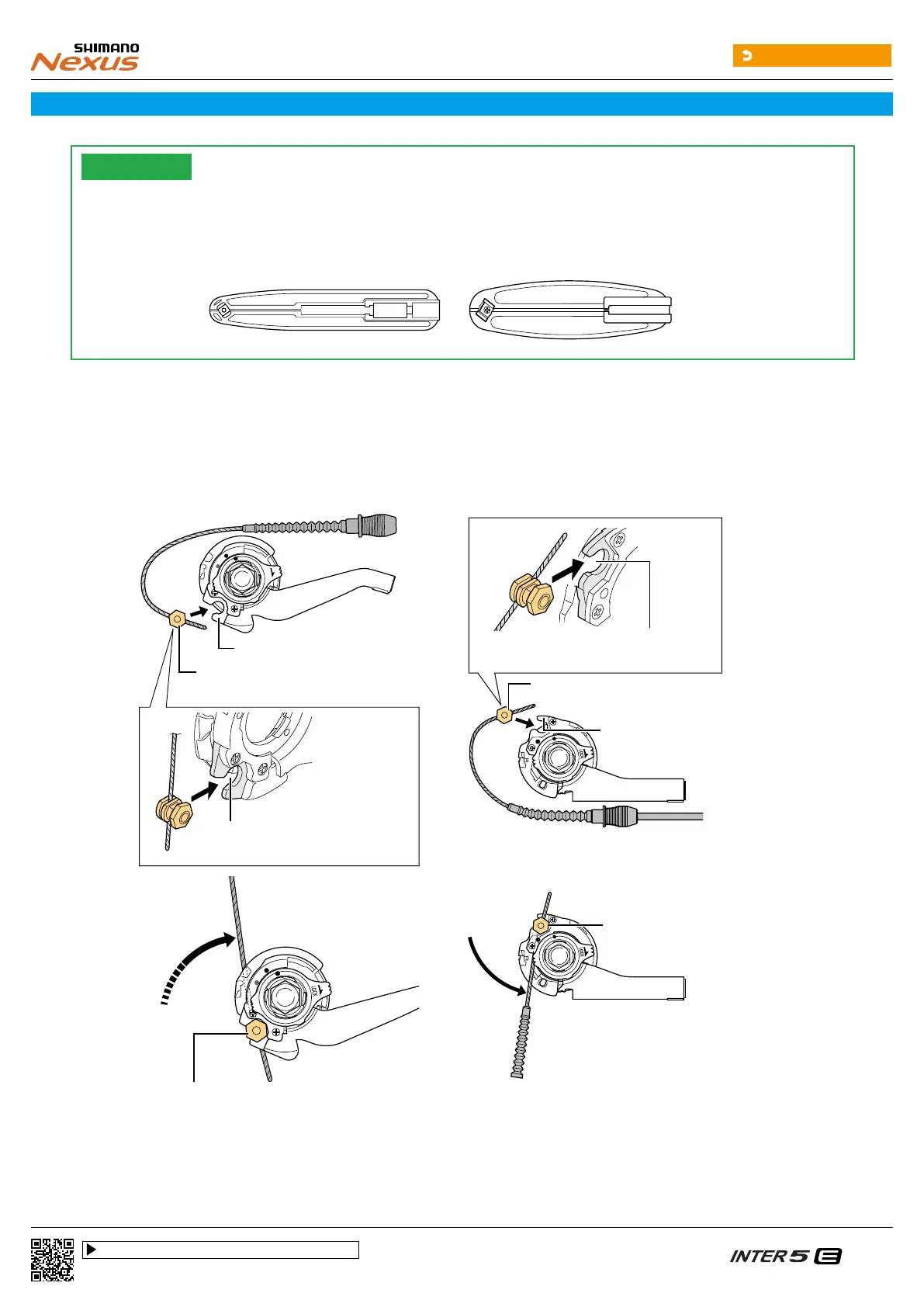

5. Install the inner cable mounting bolt unit.
(1) Fit the inner cable mounting bolt unit into the gap in the pulley.
(2) Turn the cable 60° clockwise or counterclockwise and attach it to the hook.
LOCK
Gap in pulley
Pulley
Hook
Inner cable mounting bolt unit
Inner cable mounting bolt unit
Pulley
Hook
Gap in pulley
