Dealer’s Manual (SG-C7000-5V / SG-C7000-5R / SG-C7000-5C / SG-C7000-5D)
Return to index page
Click here for the latest Dealer's Manual

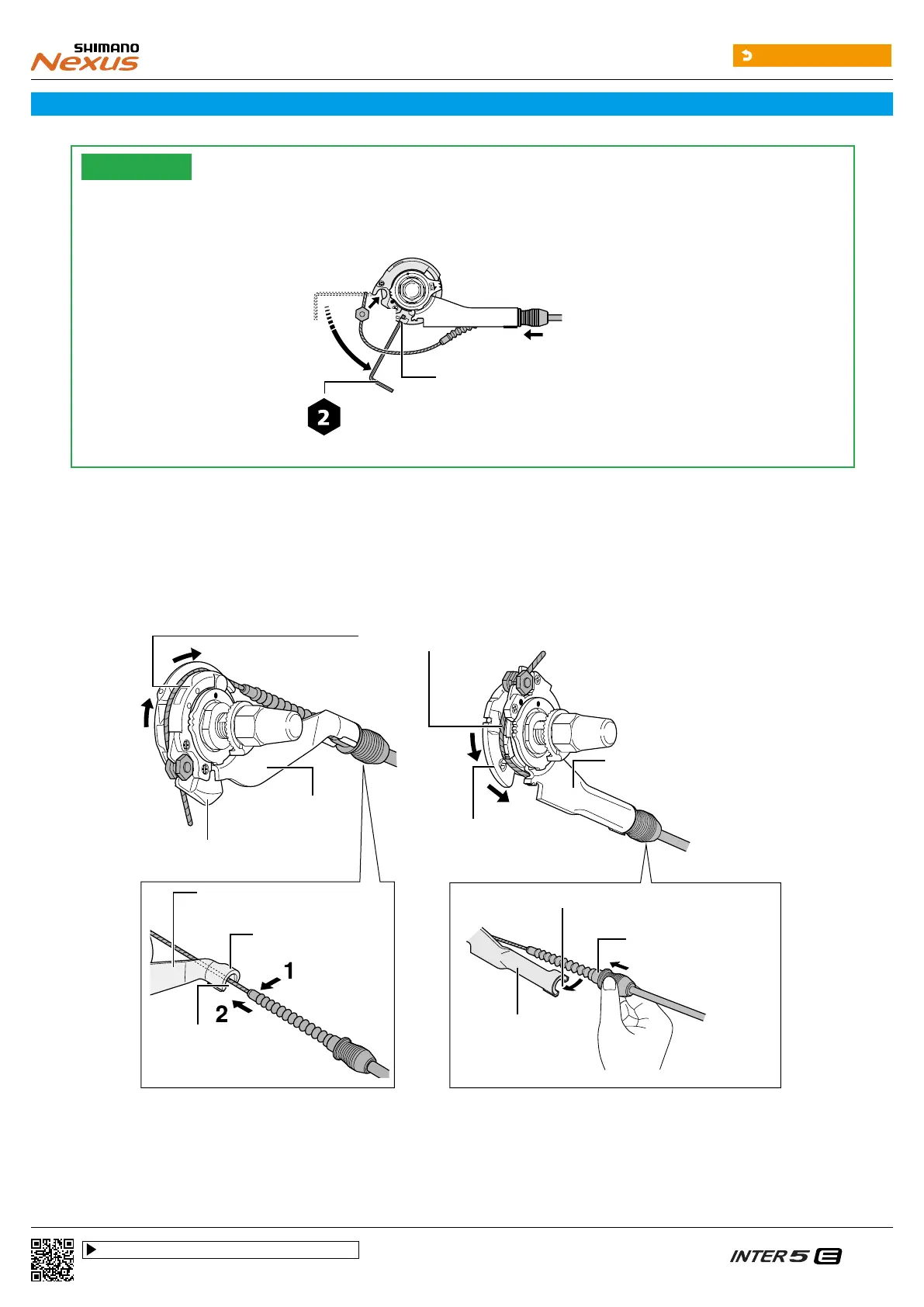

TECH TIPS
• Some models enable the outer casing holder of the cassette joint to be installed
first by turning the pulley of the cassette joint.
(1)
(2)
(3)
Hole in pulley
or #14 spoke
6. Install the inner cable and outer casing.
Attach the inner cable to the pulley as shown in the figure, pass the inner cable through the
slit in the cassette joint bracket, and then insert the end of the outer casing securely into the
outer casing holder.
Inner cable
Pulley
Slit
Outer casing
holder
Bracket
Bracket
Slit
Pulley
Bracket
Outer casing
holder
Bracket
