Dealer’s Manual (SG-C7050-5V / SG-C7050-5R / SG-C7050-5C / SG-C7050-5D)
Return to index page
https://si.shimano.com/DM/CASG003
Click here for the latest Dealer's Manual
2

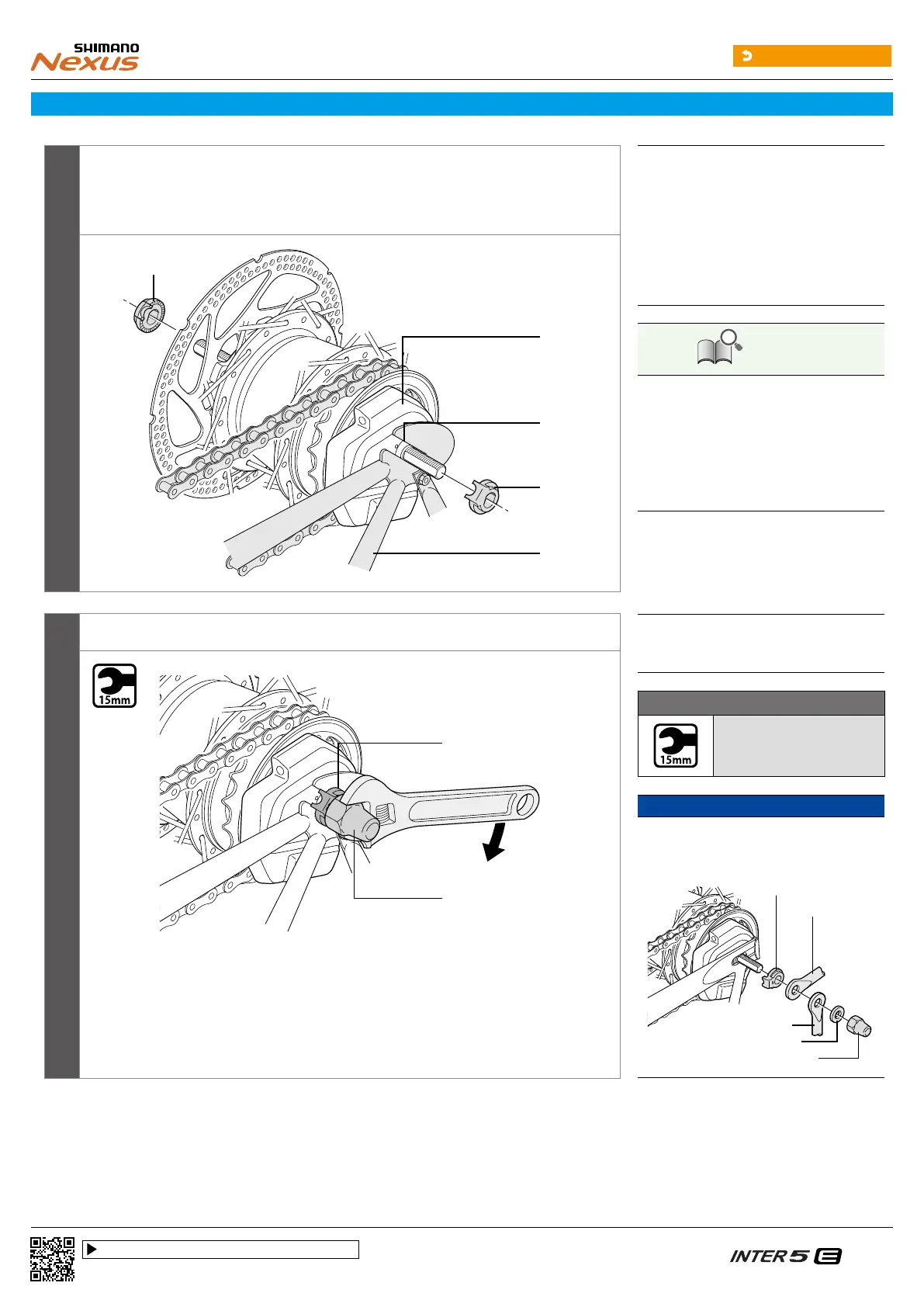

Place non-turn washers and onto the right and left sides of the hub axle.
At this time, turn the motor unit so that the protrusion of the non-turn washers fit into the
grooves of the dropouts and align the washers to be almost parallel to the chainstay.
(A)
Non-turn washer
(for left-side use)
(B)
Motor unit
(C)
Dropout groove
(D)
Non-turn washer
(for right-side use)
(E)
Chainstay
TECH TIPS
•
Install the non-turn washer with its
protrusion part aligned with the straight
part of the dropout.
•
Install the non-turn washer so that the
protrusion fits securely in the dropout
groove at the front and back sides of the
hub axle.
7R
(A)
(D)
(E)
(B)
(C)
3
Take up slack in the chain and secure the wheel to the frame with the hub nut.
(A)
Non-turn washer
(B)
Hub nut
Tightening torque
30 - 45 N·m
NOTICE
•
When installing parts such as a mudguard
stay to the hub axle, install them in the
order shown in the figure.
Non-turn washer
Mudguard stay
Carrier stay
Washer
Hub nut
(A)
(B)
