Dealer’s Manual (SG-C7050-5V / SG-C7050-5R / SG-C7050-5C / SG-C7050-5D)
Return to index page
https://si.shimano.com/DM/CASG003
Click here for the latest Dealer's Manual
•

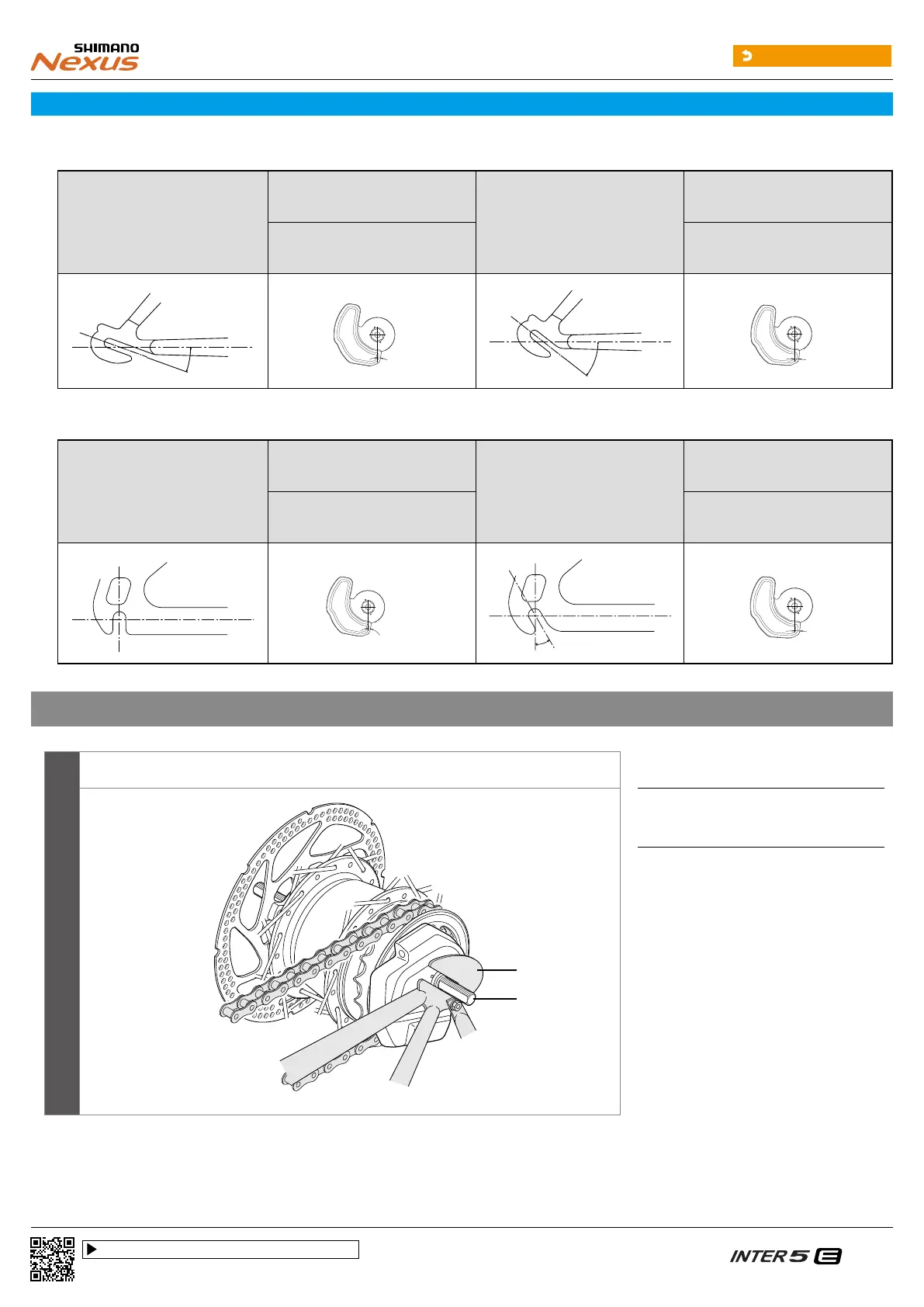

When the dropout is the reversed type
Dropout
Installation angle of non-turn
washer and motor unit
Dropout shape
Installation angle of non-turn
washer and motor unit
5R (yellow)/
5L (brown)
7R (black)/
7L (gray)
20°
9°
38°
5°
•
When the dropout is the straight drop type
Dropout
Installation angle of non-turn
washer and motor unit
Dropout shape
Installation angle of non-turn
washer and motor unit
8R (blue)/
8L (green)
9R (light brown)/
9L (light green)
10.7°
30°
4°
Installation methods
1
Mount the chain on the sprocket, then set the hub axle into the dropout.
(A)
(B)
(A)
Dropout
(B)
Hub axle
