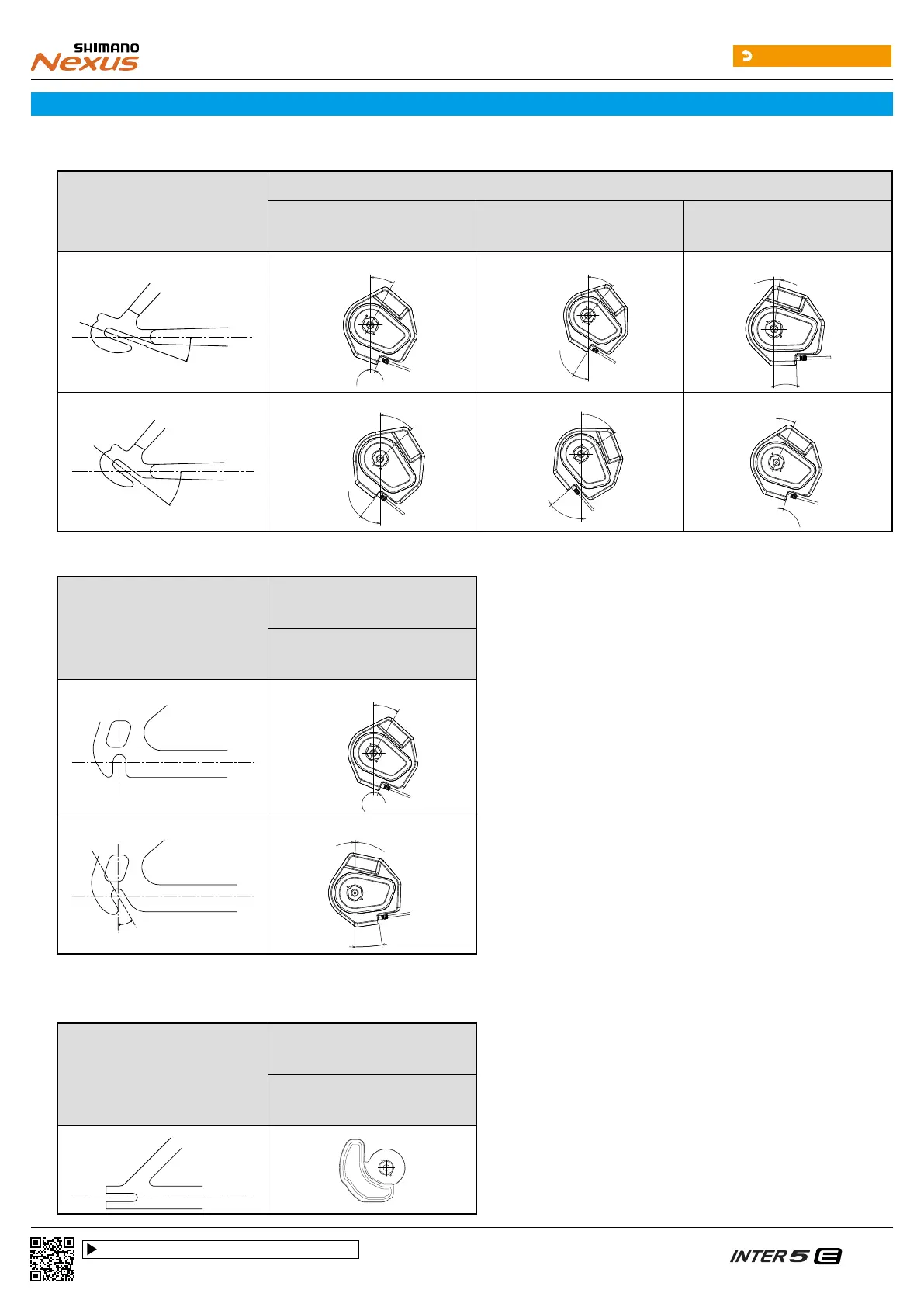

• When the dropout is the standard type
Dropout
Installation angle of non-turn washer and motor unit
5R (yellow)/
5L (brown)
6R (silver)/
6L (white)
7R (black)/
7L (gray)
20°
20.5°
29°
31.5°
40°
1.5°
7°
38°
38.5°
47°
49.5°
58°
16.5°
25°
• When the dropout is the straight drop type
Dropout
Installation angle of non-turn
washer and motor unit
8R (blue)/
8L (green)
22.17°
30.67°
30°
0.67°
7.83°
MU-UR510
• When the dropout is the standard type
Dropout
Installation angle of non-turn
washer and motor unit
6R (silver)/
6L (white)
