Slotted
screwdriver
E-ring

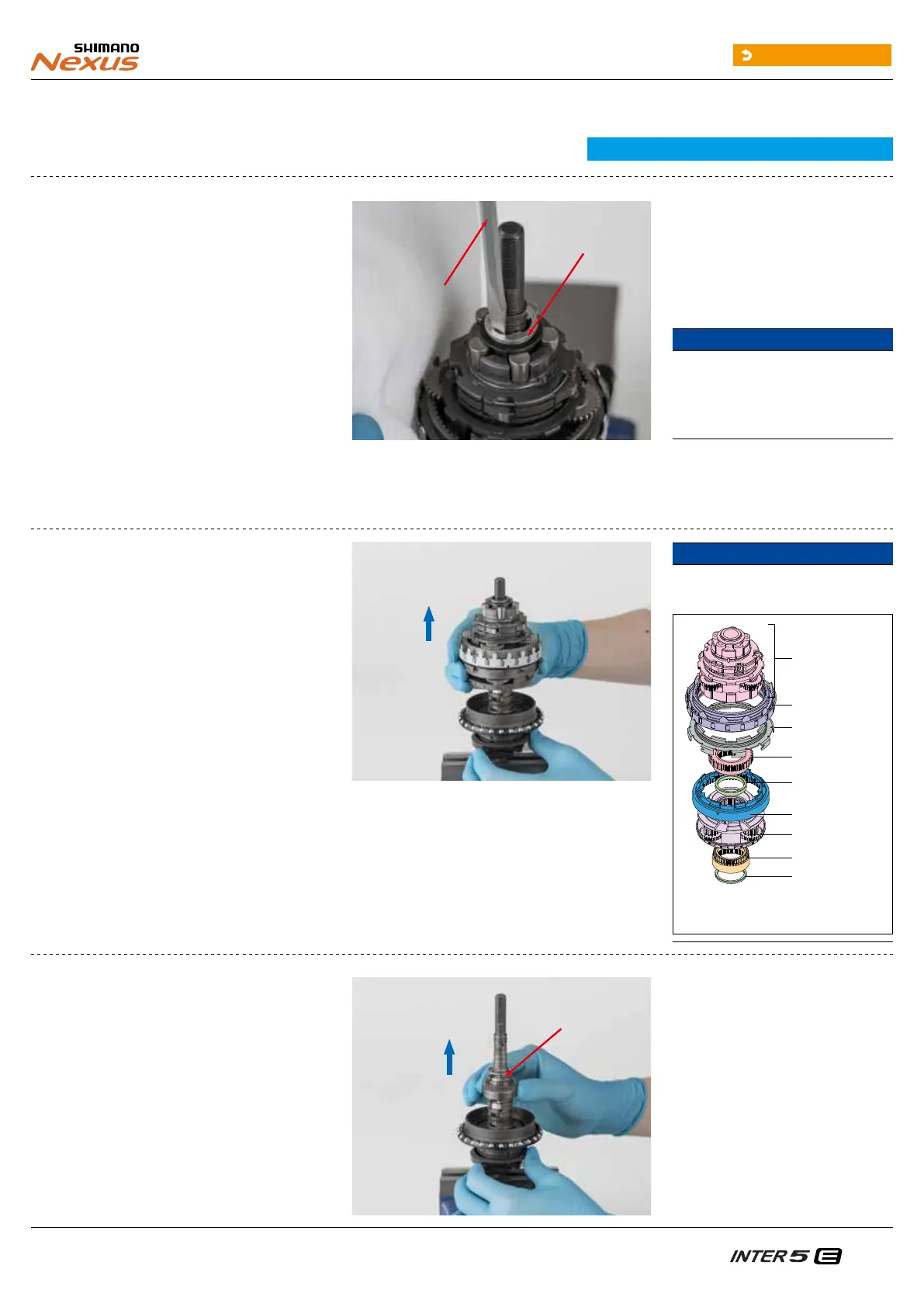

3. Carefully remove the E-ring with
a slotted screwdriver.
4. Lift the entire carrier unit straight
up and remove it.
NOTICE
•
The E-ring detaches with some force,
so be careful not to lose it.
•
Do not reuse an E-ring that has been
removed.
NOTICE
•
The carrier unit is structured from the
following parts.
The carrier unit is structured from several parts.
Disassembling the Internal Assembly
Perform steps 5 through 7 with the cassette joint turned until it makes contact.
Sun Gear1
5. Remove Sun Gear1.
Carrier2 Unit
Ring Gear2
Ring Gear1 washer*
Sun Gear3
Sun Gear2 guide ring
Sun Gear1 guide ring
Ring Gear1
Carrier1 Unit
Sun Gear1
* The Ring Gear1 washer is included only when the rst two
letters stamped on the hub axle are “RE - RL, SA - SL, or TA
- TL“. When reassembling the product, ensure that the part
conguration at the time of disassembly is maintained.
