Stop washer
Right-hand lock nut

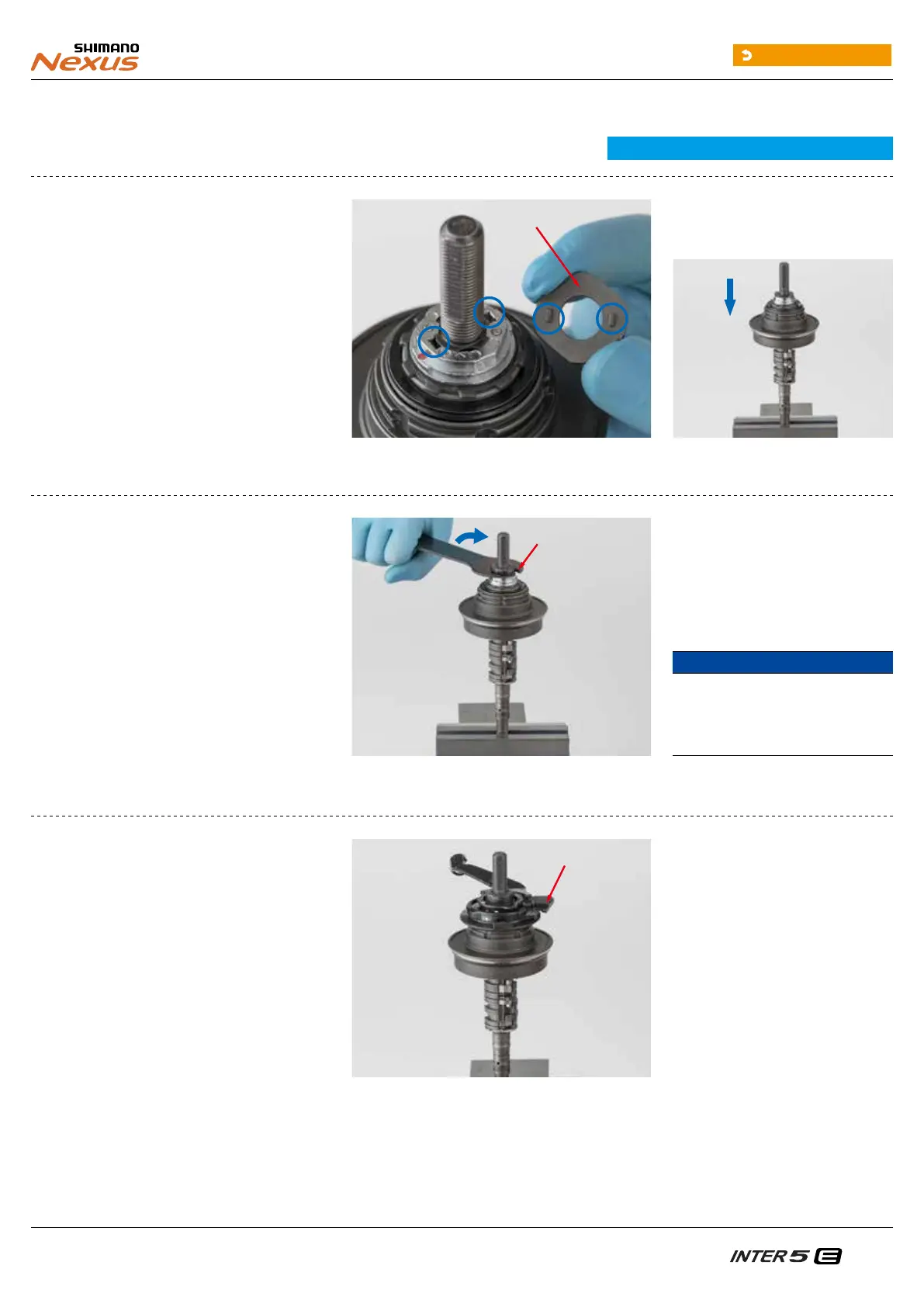

7. When installing the stop washer,
align the two teeth with the two
grooves of the lock washer.
8. Tighten the right-hand lock nut.
9. Install the cassette joint.
NOTICE
•
If either the lock washer or driver
plate rotates during this step, return
to assembly step 3 and make sure that
the cone is correctly seated.
Cassette joint
Refer to "Installing the cassette joint."
