73
Return to index page
Brake arm unit
Serrations
Ball retainer

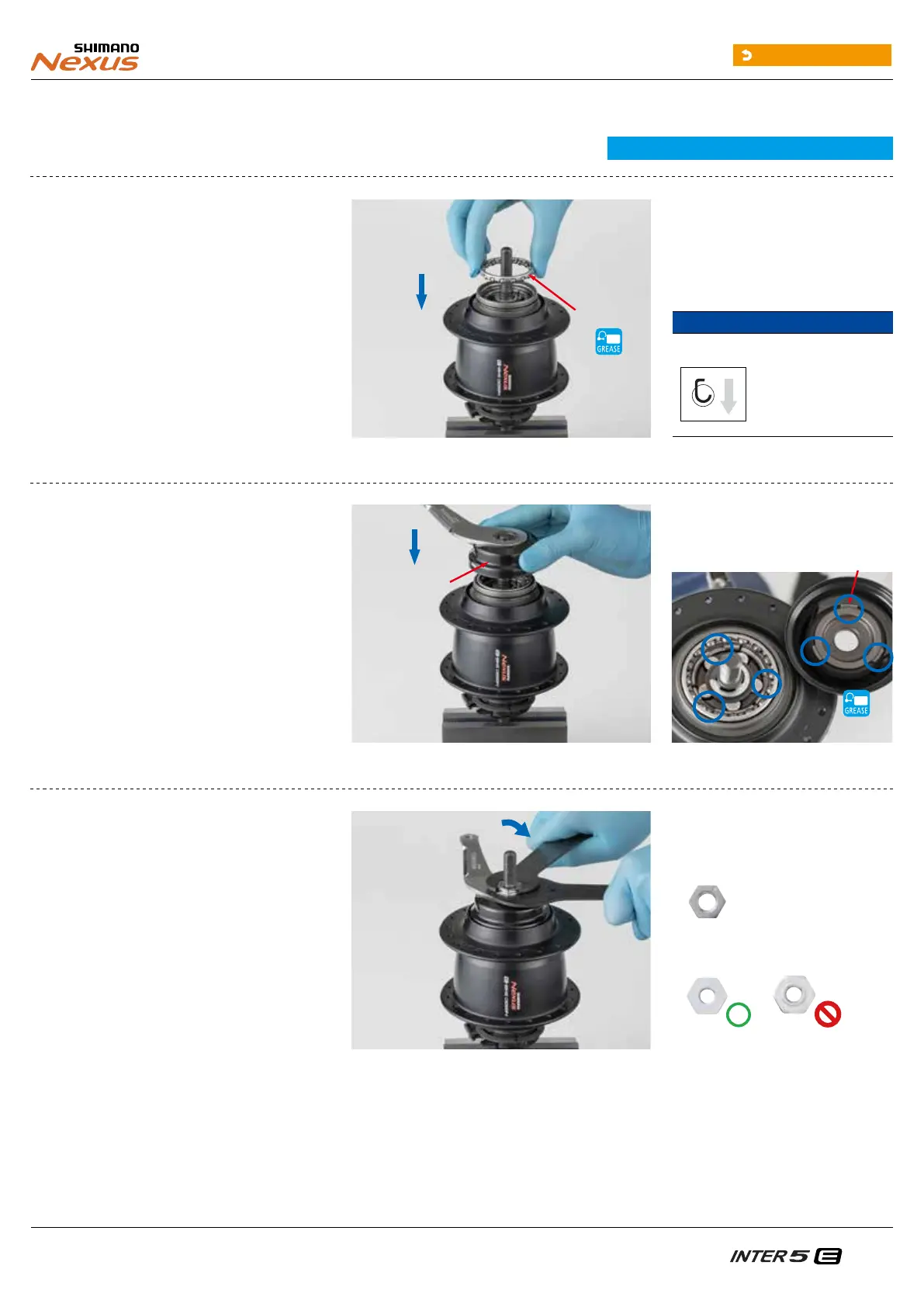

19. Place ball retainer onto the hub
shell.
20. Place the brake arm unit onto
the hub axle and turn it to the
left and right so that the
serrations of the brake shoe and
brake arm unit engage with
each other.
21. Screw the stop nut to adjust so
that the hub shell can be turned
smoothly without any play.
After adjusting, secure the stop
nut with the locknut.
NOTICE
•
Be careful of the setting direction.
Locknut
Stop Nut
(Y-04130100)
(Y-04130100)
Assembling the Internal Assembly
