Series ALFINE NEXUS
Function name INTER-11 INTER-8 INTER-8 INTER-8 INTER-8 INTER-8
Model No. SG-S7001-11 SG-S7001-8
SG-C6011-8R
SG-C6001-8R
SG-C6011-8V
SG-C6001-8V
SG-C6001-8C SG-C6001-8D SG-C6001-8CD
Speed 11 8
Gear ratio: Total 409% 307%
Spoke size #13 / #14
A Over locknut dim. / O.L.D. (mm) 135 132 132.3 135
B Axle length (mm) 187 184 187
C Flange distance (mm) 57.3 58.3 57.3 58.3
D Spoke hole P.C.D. (mm) 92.6
E Flange diameter (mm) 104.3 105.2
F
Flange width (mm): F1 (left) 3.2
Flange width (mm): F2 (right) 3.2
G
Chain line (mm): G1 (outward assembly) 46.8 47.7 47.85 46.8
Chain line (mm): G2 (inward assembly) 41.8 42.7 42.85 41.8
H Offset (mm) 3.15 2.7 2.55 3.15 4
J Axle length from hub (left) 26 25.7 26 26.6
K Axle length from hub (right) 26 25.4
L Axle size BC3 / 8 TPI 26
N
Rear dropout mounting width (left,
includes stay etc.)
5-9 4-9 5-9 4-9
P
Rear dropout mounting width (right,
includes stay etc.)
5-9 4-9 5-9 4-9
Q Non-turn washer width 6.4
R Spoke hole diameter (mm) 2.9 2.9 2.9 2.9 2.9 2.9
S Spoke hole chamfer 90°
Internal geared hub
C-272
ALFINE INTER-11, 8 / NEXUS INTER-8, 7, 5E
C-273
Ver. 1.8, Jan. 8, 2019, SHIMANO INC.
Series NEXUS
Function name INTER-5E
Model No. SG-C7000-5D
SG-C7000-5R
SG-C7000-5V
SG-C7000-5C
Speed 5
Gear ratio: Total 263%
Spoke size #13 / #14
A Over locknut dim. / O.L.D. (mm) 135
B Axle length (mm) 187
C Flange distance (mm) 57.3 58.3
D Spoke hole P.C.D. (mm) 92.6
E Flange diameter (mm) 105.2
F
Flange width (mm): F1 (left) 3.2
Flange width (mm): F2 (right) 3.2
G
Chain line (mm): G1 (outward assembly) 47.2
Chain line (mm): G2 (inward assembly) 42.2
H Offset (mm) 3.2 3.2 / 3.7 (-5C spec.)
J Axle length from hub (left) 26
K Axle length from hub (right) 26
L Axle size BC3 / 8 TPI 26
N Rear dropout mounting width (left, includes stay etc.) 5-9
P
Rear dropout mounting width (right, includes stay etc.)
5-9
Q Non-turn washer width 6.4
R Spoke hole diameter (mm) 2.9
S Spoke hole chamfer 90°

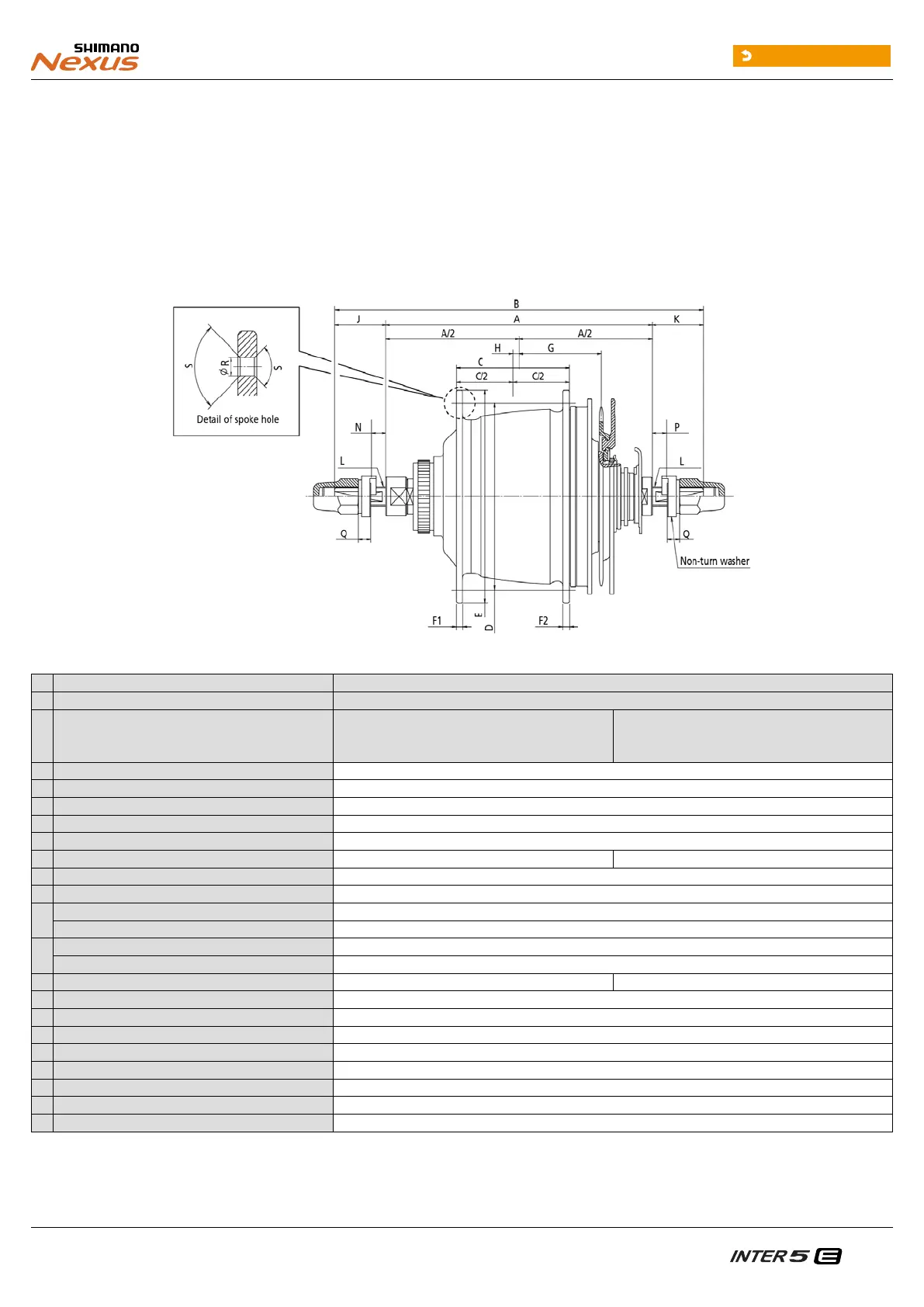

SG-C7000-5V / SG-C7000-5R / SG-C7000-5C / SG-C7000-5D
Hub dimensions (Over Locknut Dimensions and Axle)
