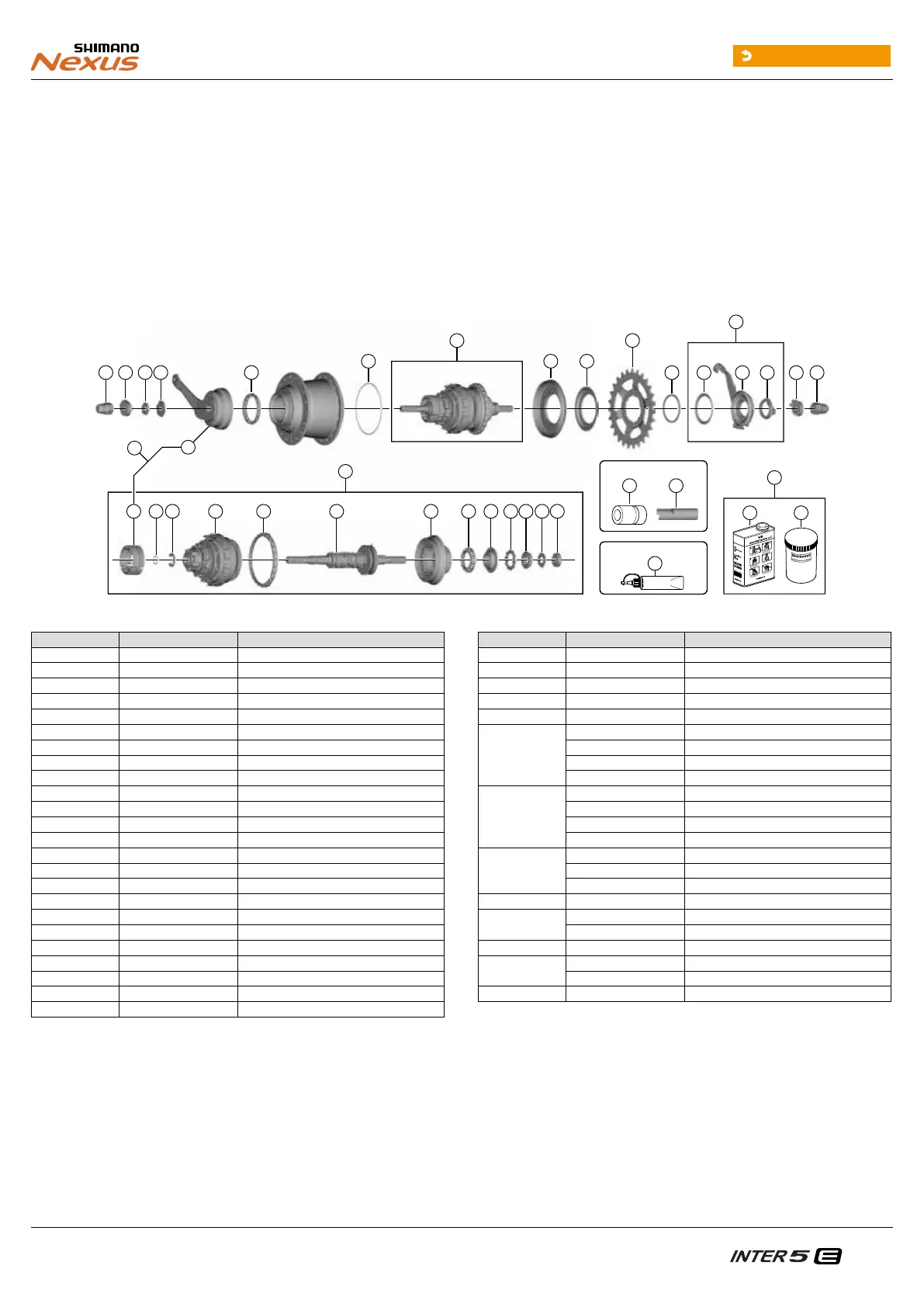

NEXUS 5-speed Internal Hub w/Coaster Brake
SG-C7000-5C
1
2
3
4
5
6
9
5
m
m
Internal Assembly
2120
19
18
15 1629 31
22
32
33 35 36 37 30 29
2 3 4 5 6 7 8 9 121110 13 14
1
CJ-C7000-5
34
1
Internal Hub Grease
TL-C7001
TL-S702
26
27 28
25
23 24
17
ITEM NO. SHIMANO CODE NO. DESCRIPTION
1 Y3FH98010 Internal Assembly (Axle Length 187 mm)
2 Y37G98020 Brake Shoe Unit (3 pcs.)
3 Y37E08000 O-Ring
4 Y3FE10000 E-Ring (D9.6)
5 Y3FE98020 Carrier Unit
6 Y38X98050 Ball Retainer O (3/16" x 26)
7 Y3FH98020 Hub Axle Unit (Axle Length 187 mm)
8 Y3FF98040 Driver Unit
9 Y3FF98050 Ball Retainer A (7/32" x 13)
10 Y3FJ98030 Right Hand Cone w/Seal
11 Y31L04000 Drive Plate
12 Y31L98030 Lock Washer
13 Y34R09000 Joint Nut Stop Washer
14 Y35Z11000 Right Hand Serrated Lock Nut (5.4 mm)
15 Y35P28000 Left Hand Lock Nut (3 mm)
16 Y35P22000 Stop Nut
17 Y31N98060 Brake Shoe Unit & Brake Arm Unit
18 Y31N98050 Brake Arm Unit (3 Serration)
19 Y38R98190 Ball Retainer B (3/16" x 16)
20 Y35J11100 Hub Shell Slide Spring
21 Y37G98080 Right Hand Dust Cap A w/Seal
22 Y3FF47000 Right Hand Dust Cap C
23 Y13098022 TL-S702 Right Hand Cone Installation Tool
24 Y70821000 TL-C7001 Right Hand Cone Removal Tool
ITEM NO. SHIMANO CODE NO. DESCRIPTION
25 Y04130100 Internal Hub Grease (Net. 100g)
26 Y00298010 WB maintenance oil set
27 Y00201000 WB maintenance oil (1L)
28 Y00201100 Bottle
29 Y31414010 Cap Nut (3/8")
30
Y33Z20500 Non-turn Washer 5R (Yellow)
Y33M39600 Non-turn Washer 6R (Silver)
Y33M39700 Non-turn Washer 7R (Black)
Y34R85010 Non-turn Washer 8R (Dark Blue)
31
Y33M39510 Non-turn Washer 5L (Brown)
Y33M39610 Non-turn Washer 6L (White)
Y33M39710 Non-turn Washer 7L (Gray)
Y34R85000 Non-turn Washer 8L (Dark Green)
32
Y0FM24000 Sprocket Wheel 24T (CS-C7000)
Y0FM01000 Sprocket Wheel 27T (CS-C7000)
Y0FM30000 Sprocket Wheel 30T (CS-C7000)
33 Y7ZP04000 Snap Ring
34
Y7ZP98010 CJ-C7000-5 Cassette Joint Unit
Y7ZP98030
CJ-C7000-5 Cassette Joint Unit for Belt drive system
35 Y7ZP05000 Driver Cap
36
Y7ZP98020 CJ-C7000-5 Cassette Joint
Y7ZP98040
CJ-C7000-5 Cassette Joint for Belt drive system
37 Y33Z98020 Cassette Joint Fixing Ring
Spare parts list
