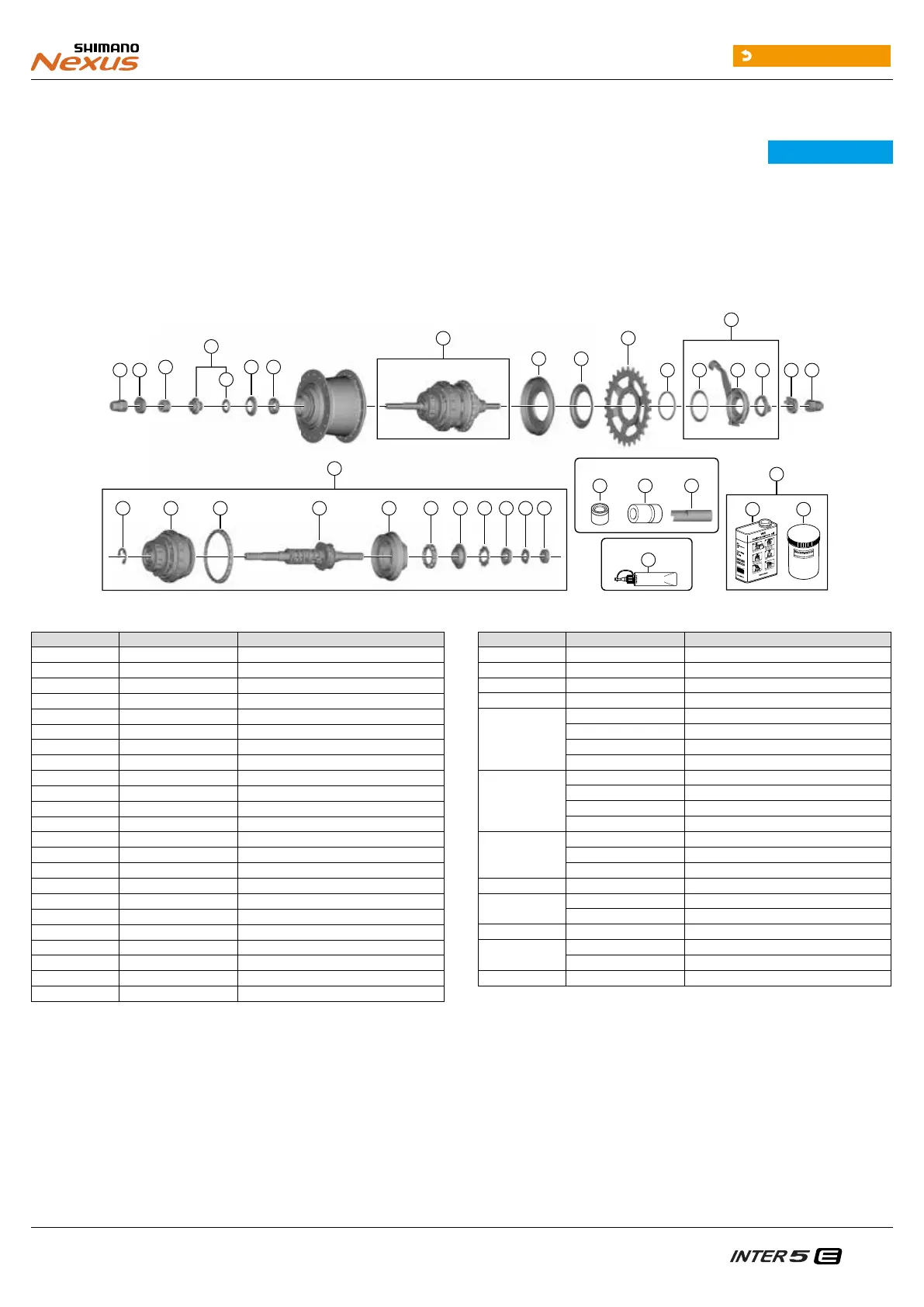

NEXUS 5-speed Internal Hub
SG-C7000-5D
1
2
3
4
5
6
9
5
m
m
Internal Assembly
13
15
14
18 19
16 17
2 3 4 5 6 7 8 9 10 11 12
1
1
24
25 26
Internal Hub Grease
TL-C7001
TL-S702
23
21 22
TL-AF30
20
27 29
30
31 33 34 35 28 27
CJ-C7000-5
32
Spare parts list
ITEM NO. SHIMANO CODE NO. DESCRIPTION
1 Y3FJ98010 Internal Assembly (Axle Length 187 mm)
2 Y3FF49000 Stop Ring Diameter (12 mm / 1.3 mm)
3 Y3FF98020 Carrier Unit
4 Y38X98050 Ball Retainer O (3/16" x 26)
5 Y3FJ98020 Hub Axle Unit (Axle Length 187 mm)
6 Y3FF98040 Driver Unit
7 Y3FF98050 Ball Retainer A (7/32" x 13)
8 Y3FJ98030 Right Hand Cone w/Seal
9 Y31L04000 Drive Plate
10 Y31L98030 Lock Washer
11 Y34R09000 Joint Nut Stop Washer
12 Y35Z11000 Right Hand Serrated Lock Nut (5.4 mm)
13 Y35Z19000 Left Hand Serrated Lock Nut (10.7 mm)
14 Y31L98040 Left Hand Cone w/Dust Cap & Seal Ring
15 Y37710000 Seal Ring
16 Y32T08100 Left Hand Inner Dust Cap
17 Y36U98030 Ball Retainer (7/32" x 9)
18 Y37G98080 Right Hand Dust Cap A w/Seal
19 Y3FF47000 Right Hand Dust Cap C
20 Y70811000
TL-AF30 Left Hand Inner Dust Cap Installation Tool
21 Y13098022 TL-S702 Right Hand Cone Installation Tool
22 Y70821000 TL-C7001 Right Hand Cone Removal Tool
23 Y04130100 Internal Hub Grease (Net. 100g)
ITEM NO. SHIMANO CODE NO. DESCRIPTION
24 Y00298010 WB maintenance oil set
25 Y00201000 WB maintenance oil (1L)
26 Y00201100 Bottle
27 Y31414010 Cap Nut (3/8")
28
Y33Z20500 Non-turn Washer 5R (Yellow)
Y33M39600 Non-turn Washer 6R (Silver)
Y33M39700 Non-turn Washer 7R (Black)
Y34R85010 Non-turn Washer 8R (Dark Blue)
29
Y33M39510 Non-turn Washer 5L (Brown)
Y33M39610 Non-turn Washer 6L (White)
Y33M39710 Non-turn Washer 7L (Gray)
Y34R85000 Non-turn Washer 8L (Dark Green)
30
Y0FM24000 Sprocket Wheel 24T (CS-C7000)
Y0FM01000 Sprocket Wheel 27T (CS-C7000)
Y0FM30000 Sprocket Wheel 30T (CS-C7000)
31 Y7ZP04000 Snap Ring
32
Y7ZP98010 CJ-C7000-5 Cassette Joint Unit
Y7ZP98030
CJ-C7000-5 Cassette Joint Unit for Belt drive system
33 Y7ZP05000 Driver Cap
34
Y7ZP98020 CJ-C7000-5 Cassette Joint
Y7ZP98040
CJ-C7000-5 Cassette Joint for Belt drive system
35 Y33Z98020 Cassette Joint Fixing Ring
