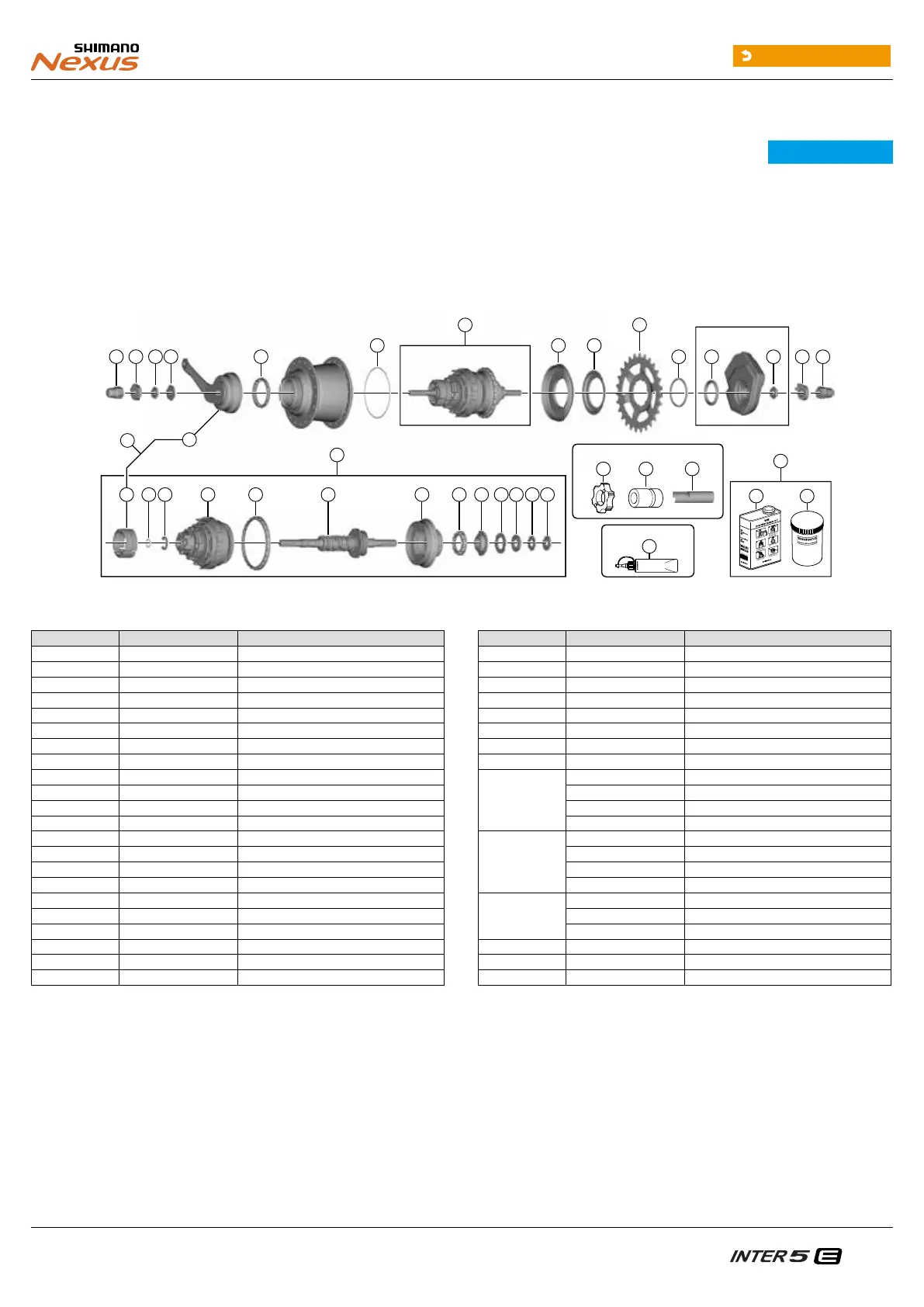

Shimano INTER 5E - SG-C7050-5 C Internal Hub Parts

86
Return to index page
NEXUS 5-speed Internal Hub w/Coaster Brake
SG-C7050-5C
1
2
3
4
5
6
9
5
m
m
Internal Assembly
2120
19
18
15 1630 32
22
33
34 35 36 31 30
2 3 4 5 6 7 8 9 121110 13 14
1
MU-UR500
1
Internal Hub Grease
27
28 29
26
17
TL-SGE1
TL-C7001
TL-S702
24 2523
Spare parts list
ITEM NO. SHIMANO CODE NO. DESCRIPTION
1 Y3FE98010 Internal Assembly (Axle Length 187 mm)
2 Y37G98020 Brake Shoe Unit (3 pcs.)
3 Y37E08000 O-Ring
4 Y3FE10000 E-Ring (D9.6)
5 Y3FE98020 Carrier Unit
6 Y38X98050 Ball Retainer O (3/16" x 26)
7 Y3FE98030 Hub Axle Unit (Axle Length 187 mm)
8 Y3FF98040 Driver Unit
9 Y3FF98050 Ball Retainer A (7/32" x 13)
10 Y3FF98060 Right Hand Cone w/Seal
11 Y37S07000 Drive Plate
12 Y37S98050 Lock Washer
13 Y38F17000 Right Hand Lock Nut Washer
14 Y38F16000 Right Hand Lock Nut (3.7 mm)
15 Y35P28000 Left Hand Lock Nut (3 mm)
16 Y35P22000 Stop Nut
17 Y31N98060 Brake Shoe Unit & Brake Arm Unit
18 Y31N98050 Brake Arm Unit (3 Serration)
19 Y38R98190 Ball Retainer B (3/16" x 16)
20 Y35J11100 Hub Shell Slide Spring
21 Y37G98080 Right Hand Dust Cap A w/Seal
22 Y3FF47000 Right Hand Dust Cap C
ITEM NO. SHIMANO CODE NO. DESCRIPTION
23 Y20W10000 TL-SGE1 1st Gear Set Tool
24 Y13098022 TL-S702 Right Hand Cone Installation Tool
25 Y70821000 TL-C7001 Right Hand Cone Removal Tool
26 Y04130100 Internal Hub Grease (Net. 100g)
27 Y00298010 WB maintenance oil set
28 Y00201000 WB maintenance oil (1L)
29 Y00201100 Bottle
30 Y31414010 Cap Nut (3/8")
31
Y33Z20500 Non-turn Washer 5R (Yellow)
Y33M39600 Non-turn Washer 6R (Silver)
Y33M39700 Non-turn Washer 7R (Black)
Y34R85010 Non-turn Washer 8R (Dark Blue)
32
Y33M39510 Non-turn Washer 5L (Brown)
Y33M39610 Non-turn Washer 6L (White)
Y33M39710 Non-turn Washer 7L (Gray)
Y34R85000 Non-turn Washer 8L (Dark Green)
33
Y0FM24000 Sprocket Wheel 24T (CS-C7000)
Y0FM01000 Sprocket Wheel 27T (CS-C7000)
Y0FM30000 Sprocket Wheel 30T (CS-C7000)
34 Y7ZP04000 Snap Ring
35 Y78U00022 Motor Unit Seal
36 Y707000Y0 Lock Nut
