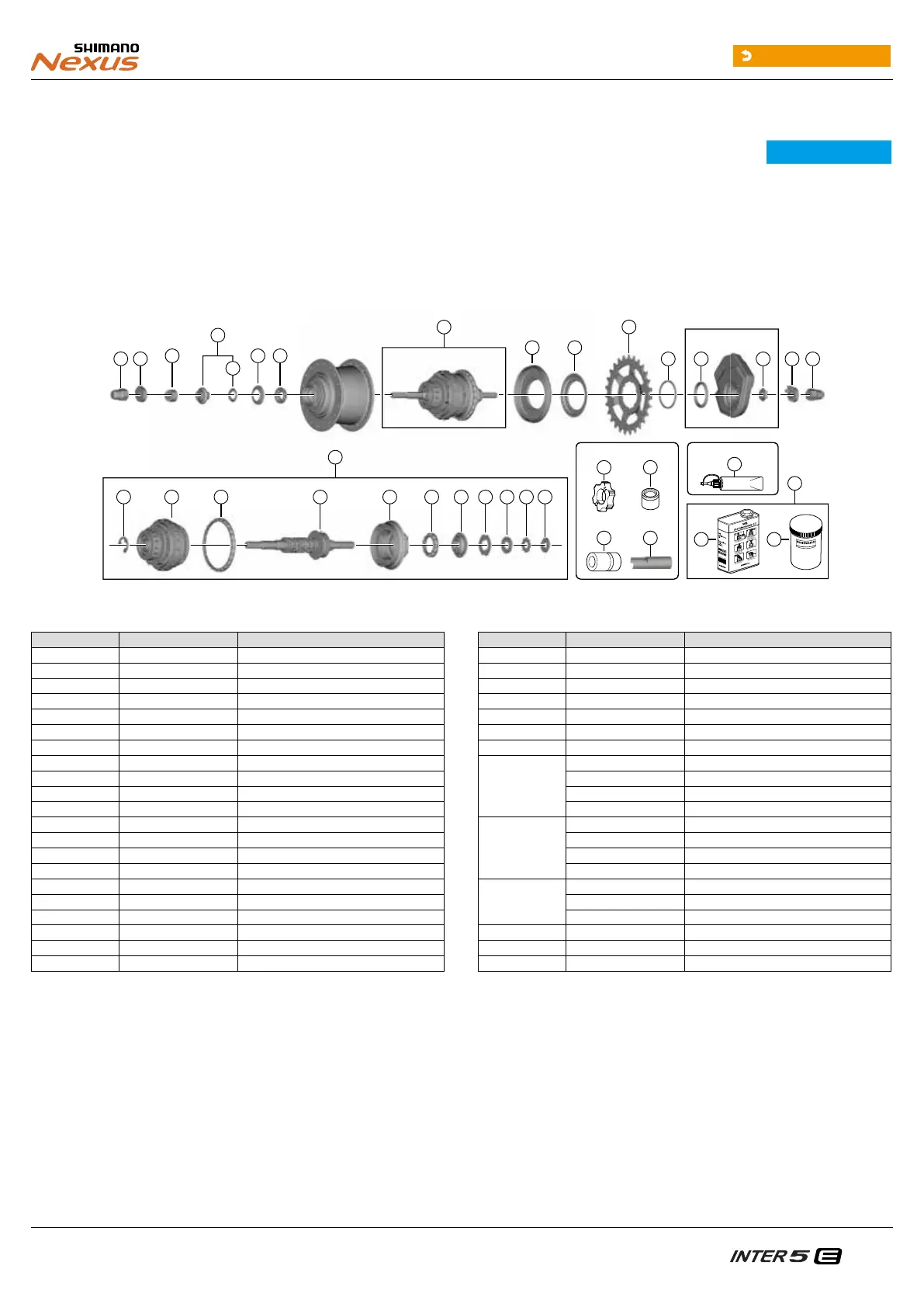

NEXUS 5-speed Internal Hub
SG-C7050-5D
1
2
3
4
5
6
9
5
m
m
Internal Assembly
13
15
14
18 19
16 17
2 3 4 5 6 7 8 9 10 11 12
1
1
25
26 27
Internal Hub Grease
24
28 30
31
32 29 2833 34
MU-UR500
TL-SGE1 TL-AF30
TL-C7001
TL-S702
22 23
20 21
Spare parts list
ITEM NO. SHIMANO CODE NO. DESCRIPTION
1 Y3FF98010 Internal Assembly (Axle Length 187 mm)
2 Y3FF49000 Stop Ring Diameter (12 mm / 1.3 mm)
3 Y3FF98020 Carrier Unit
4 Y38X98050 Ball Retainer O (3/16" x 26)
5 Y3FF98030 Hub Axle Unit (Axle Length 187 mm)
6 Y3FF98040 Driver Unit
7 Y3FF98050 Ball Retainer A (7/32" x 13)
8 Y3FF98060 Right Hand Cone w/Seal
9 Y37S07000 Drive Plate
10 Y37S98050 Lock Washer
11 Y38F17000 Right Hand Lock Nut Washer
12 Y38F16000 Right Hand Lock Nut (3.7 mm)
13 Y35Z19000 Left Hand Serrated Lock Nut (10.7 mm)
14 Y31L98040 Left Hand Cone w/Dust Cap & Seal Ring
15 Y37710000 Seal Ring
16 Y32T08100 Left Hand Inner Dust Cap
17 Y36U98030 Ball Retainer (7/32" x 9)
18 Y37G98080 Right Hand Dust Cap A w/Seal
19 Y3FF47000 Right Hand Dust Cap C
20 Y20W10000 TL-SGE1 1st Gear Set Tool
21 Y70811000
TL-AF30 Left Hand Inner Dust Cap Installation Tool
ITEM NO. SHIMANO CODE NO. DESCRIPTION
22 Y13098022 TL-S702 Right Hand Cone Installation Tool
23 Y70821000 TL-C7001 Right Hand Cone Removal Tool
24 Y04130100 Internal Hub Grease (Net. 100g)
25 Y00298010 WB maintenance oil set
26 Y00201000 WB maintenance oil (1L)
27 Y00201100 Bottle
28 Y31414010 Cap Nut (3/8")
29
Y33Z20500 Non-turn Washer 5R (Yellow)
Y33M39600 Non-turn Washer 6R (Silver)
Y33M39700 Non-turn Washer 7R (Black)
Y34R85010 Non-turn Washer 8R (Dark Blue)
30
Y33M39510 Non-turn Washer 5L (Brown)
Y33M39610 Non-turn Washer 6L (White)
Y33M39710 Non-turn Washer 7L (Gray)
Y34R85000 Non-turn Washer 8L (Dark Green)
31
Y0FM24000 Sprocket Wheel 24T (CS-C7000)
Y0FM01000 Sprocket Wheel 27T (CS-C7000)
Y0FM30000 Sprocket Wheel 30T (CS-C7000)
32 Y7ZP04000 Snap Ring
33 Y78U00022 Motor Unit Seal
34 Y707000Y0 Lock Nut
