Built-in installation to the handlebar/stem
Built-in installation of a clamp band type cycle computer is possible in a stem integrated type handlebar, etc. In
many cases, the procedure involves installing a cycle computer with electric wires connected in advance to the
handlebar. Install it with the SHIMANO logo on the right when facing the front of the bicycle, and secure it from
the rear.

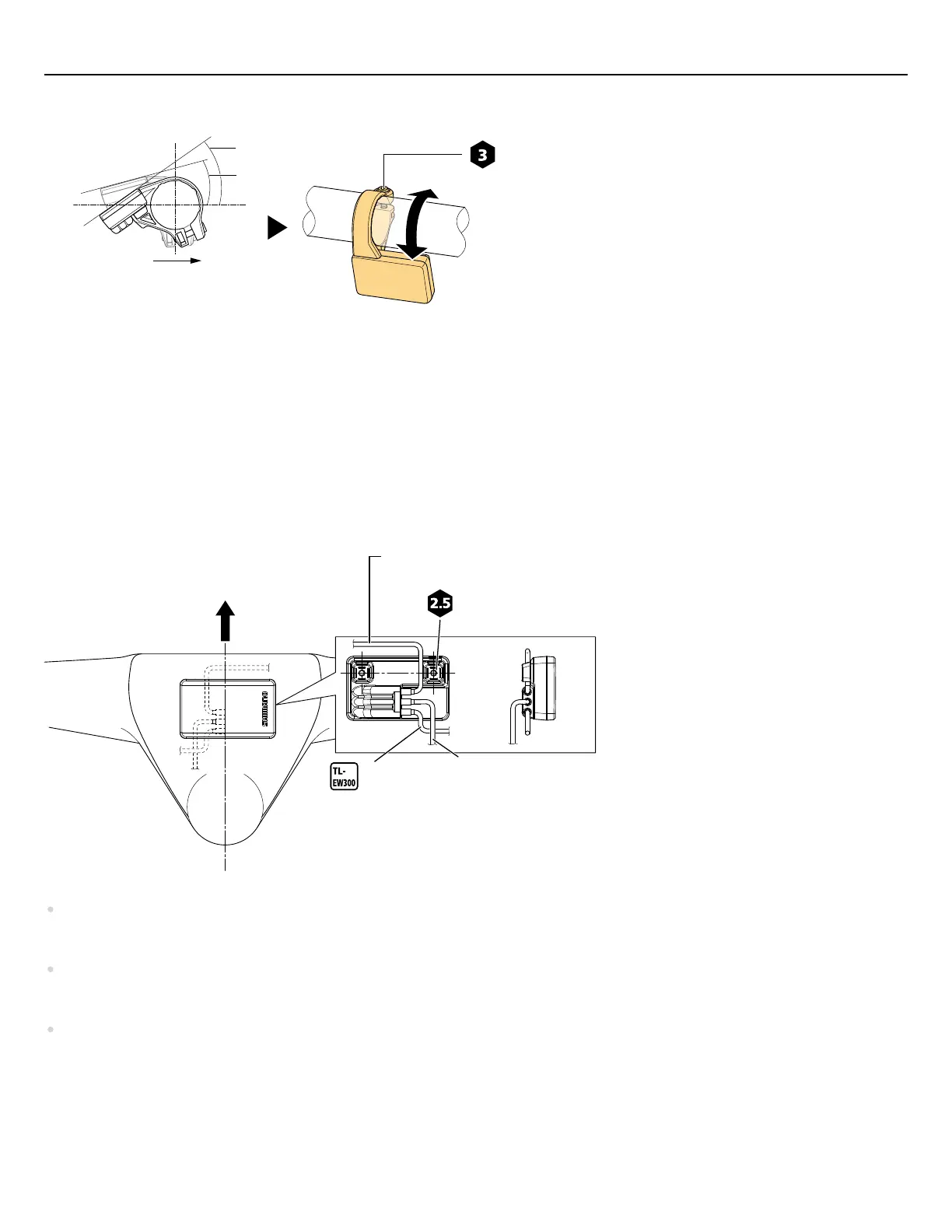

Built-in installation to the stem integrated type handlebar and wiring example
Connect to right switch
Connect to
left switch
Rear view
Connect to drive unit or
satellite system ON/OFF
switch
Fixing screw x 2
Front
0.6 N·m
Adjust the installation angle, and secure the cycle computer to the handlebar.
Front
Clamp screw
0.8 N·m
35°
15°
2.
When performing installation, make sure to refer to the manual of the assist bicycle or handlebar compatible
with built-in installation.
Make sure to use the fixing screws provided by the manufacturer of the handlebar or assist bicycle. Screws of
an inappropriate length may damage the cycle computer or have insufficient holding force.
Be careful not to apply excessive force to or bend the brake hose or electric wires.
