Adjusting the installation angle
Removing the cycle computer

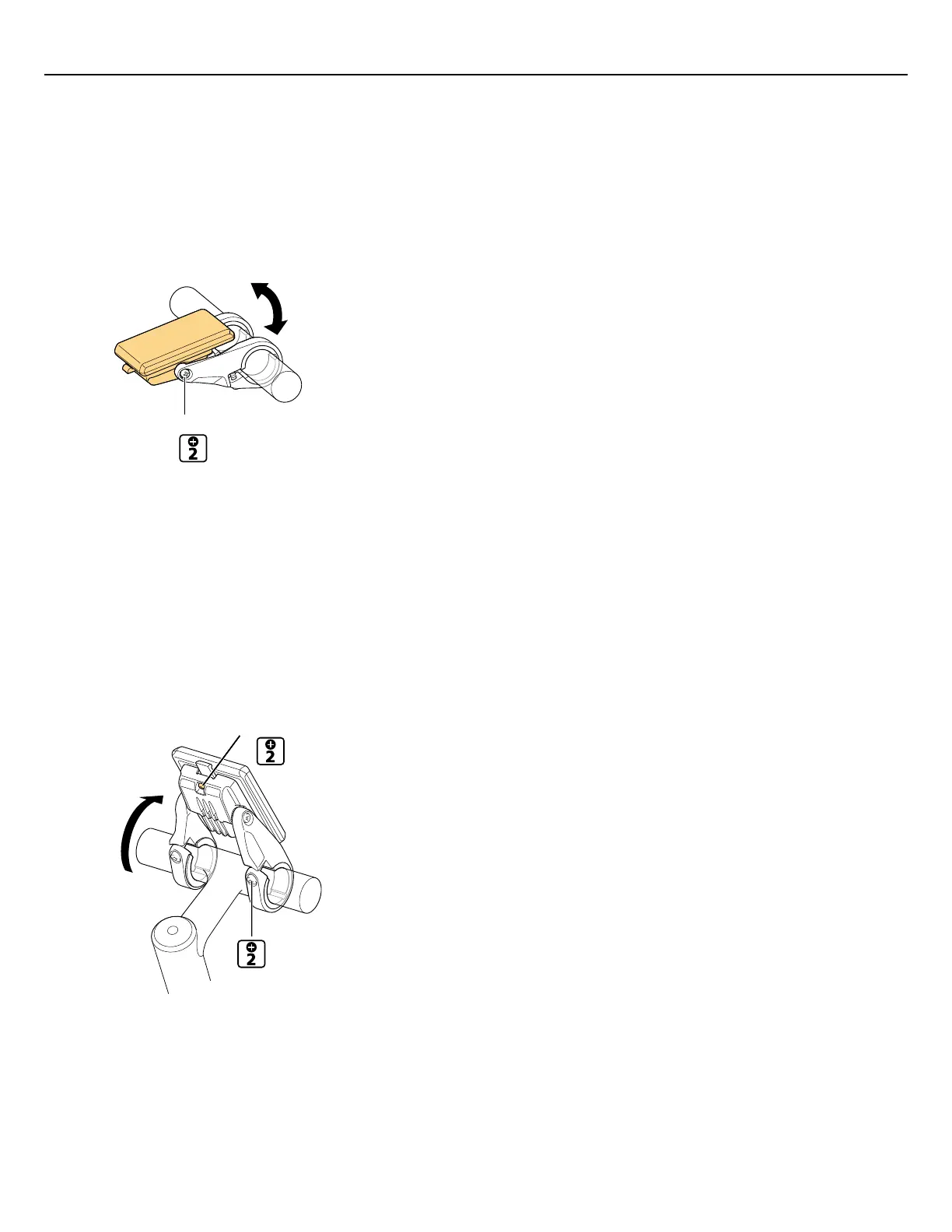

Adjust the installation angle of the cycle computer.
Loosen the angle adjustment screw.(1)
After adjusting the angle of the cycle computer to make it easier to see while riding, tighten the angle
adjustment screw.
Angle adjustment screw
0.5 N·m
(2)
1.
Loosen the fixing screw on the bottom side of the bracket.
If the cycle computer was not secured, this procedure is not necessary. Skip to step 2 .
Loosen the clamp screw, then stand the cycle computer and bracket up on the stem (as though you are
turning the cycle computer around).
(1)
Loosen the fixing screws.
(1)
Fixing screw(2)
Clamp screw(1)
(2)
1.
Installation/removal
Installing the cycle computer
24
