Shini SCD Series User Manual

174(202)
8) Fit all springs and tighten the screws (Fig. 7).
9) Install both the transmission belt (Fig. 13) and belt tension regulator (Fig. 14).
10) Install micro-switch and fixed board firmly (Fig. 10).
1
2
3
4
5
6
7
8
9
10
11
12
13
14

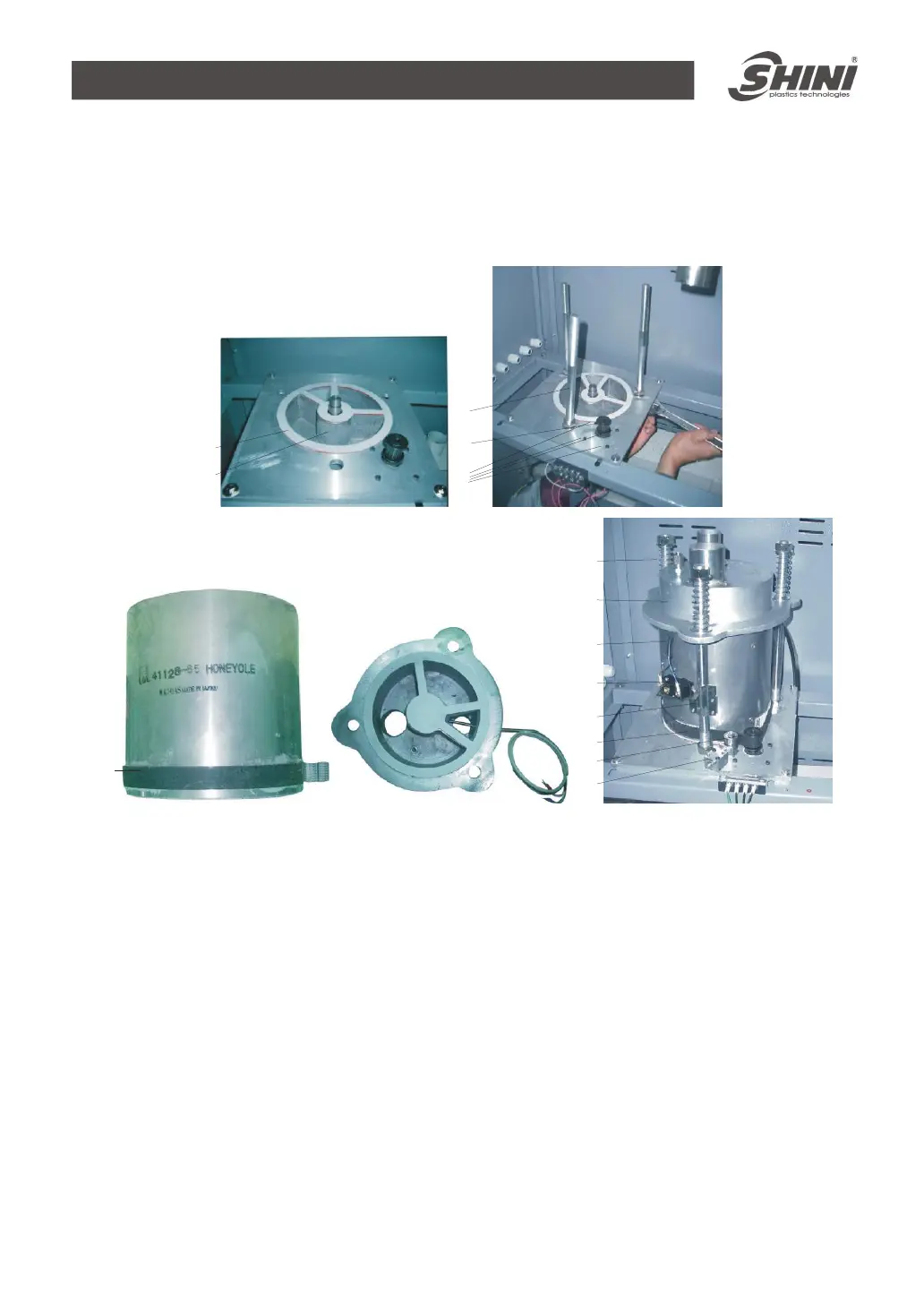

Picture 3-5：Installation of the Rotor
