Shini SCD Series User Manual

20(202)
1) Check whether internal bin and connecting pipe are clean or not before using.
2) Using equipped with HEPA and model of optional grade series.
3) If customer do not equip with HEPA, filter with accuracy of 5um is available,
which is installed inside storage bin.

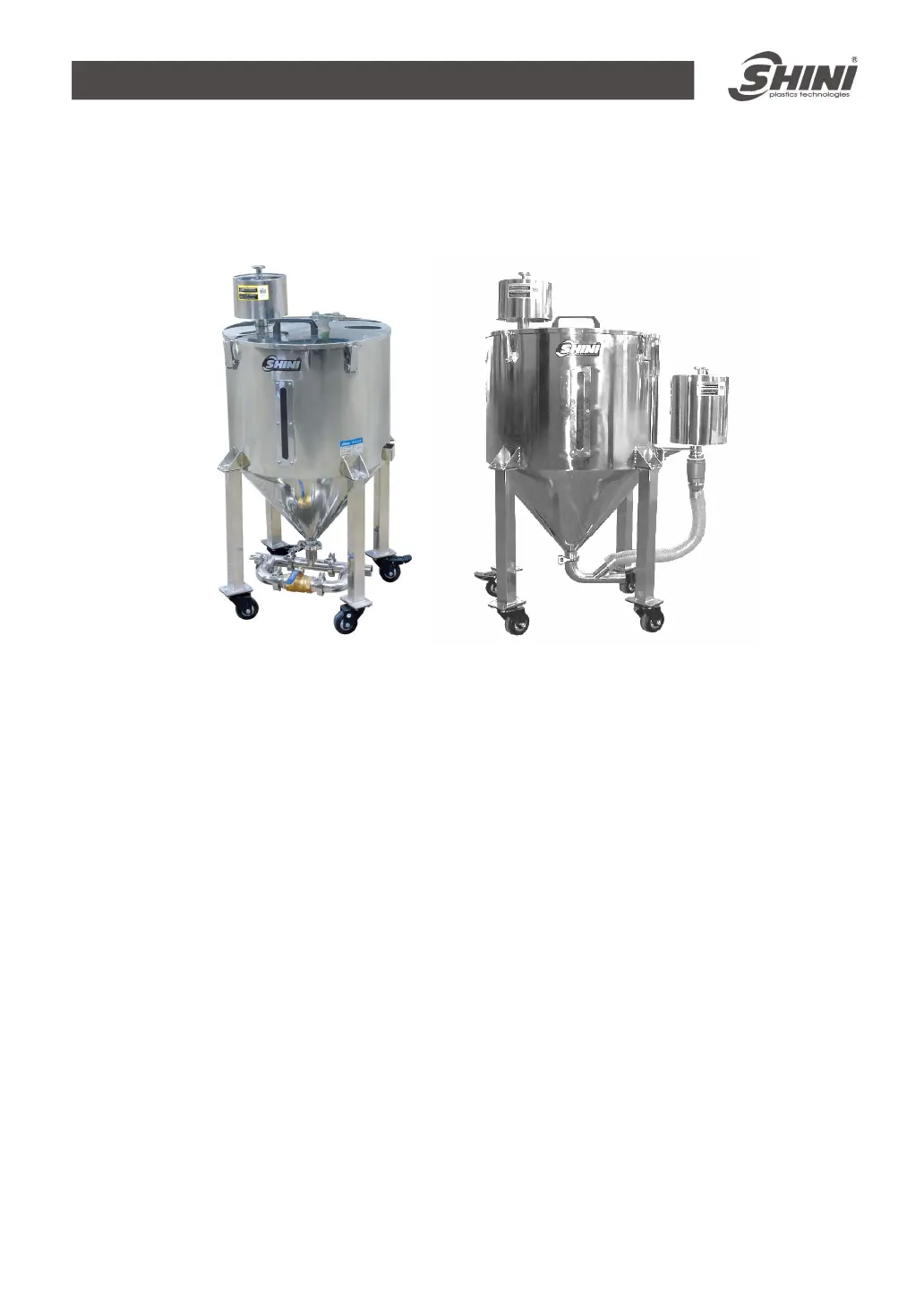

Picture 1-3：Material Stage Bin of Optical Grade MST-80U-OP
1.4.3 Notes of using HEPA
1) Take note of air flow direction of plate filter, avoiding reversing side.
2) Take note of sequence of installation of the two plate filter, that is installed
above with accuracy of 5um and below with accuracy of 0.3um.
3) The two plate filters are installed tightly to align locating device and keep the
detection location of upper and lower pressure on the same side.
4) The upper low efficient filter should be cleaned timely (once a week is
suggested). When air supply is lacked obviously and cleaning efficiency of
cylinder type filter is not obvious, we suggest cleaning middle-efficiency filter
with accuracy of 5um, or replace high-efficiency filter with accuracy of 0.3um.
5) It is not available for high-efficiency filter with accuracy of 0.3um to recycle for
use because of vulnerability.
6) Differential pressure indicator optionally connects to the pressure detection
location of upper and lower plate cover. When pressure difference is above
1000Pa, we suggest cleaning middle-efficiency filter with accuracy of 5um.
And if the efficiency is not good, we suggest replacing high-efficiency filter
