46(202)
2.6.9 Material Stage Bin of Optical Grade MST-80U-OP
Name of components:
1. Brake-type universal floor stand 2. Free-style universal floor stand 3. Floor stand
4. Inner hexagonal screw column 5. 1.5” Elbow 6. Seal ring 1.5”
7. 1.5” Fast pipe connector 8. Feed port 9. 1.5” Three way
10. Material storage tank 11. Cover back button 2 12. Flat gasket
13. Spring gasket 14. Acorn nut 8 15. Fastener for sight glass window
16. Acryl 17. Fastener for sight glass window
18. Nut 19. Connection pipe 20. 1.5” Ball valve
21. Acorn nut 22. Spring gasket 23. Flat gasket
24. Cover back button 1 25. Snap hook 26. Material storage tank fastener
27. Material storage tank top 28. Filter 1 fastener 29. Filter 1
30. Filter cover 1 31. Flat gasket 32. Star nut
33. Inner hexagonal screw column 34. Square aluminum handle 35. Pin

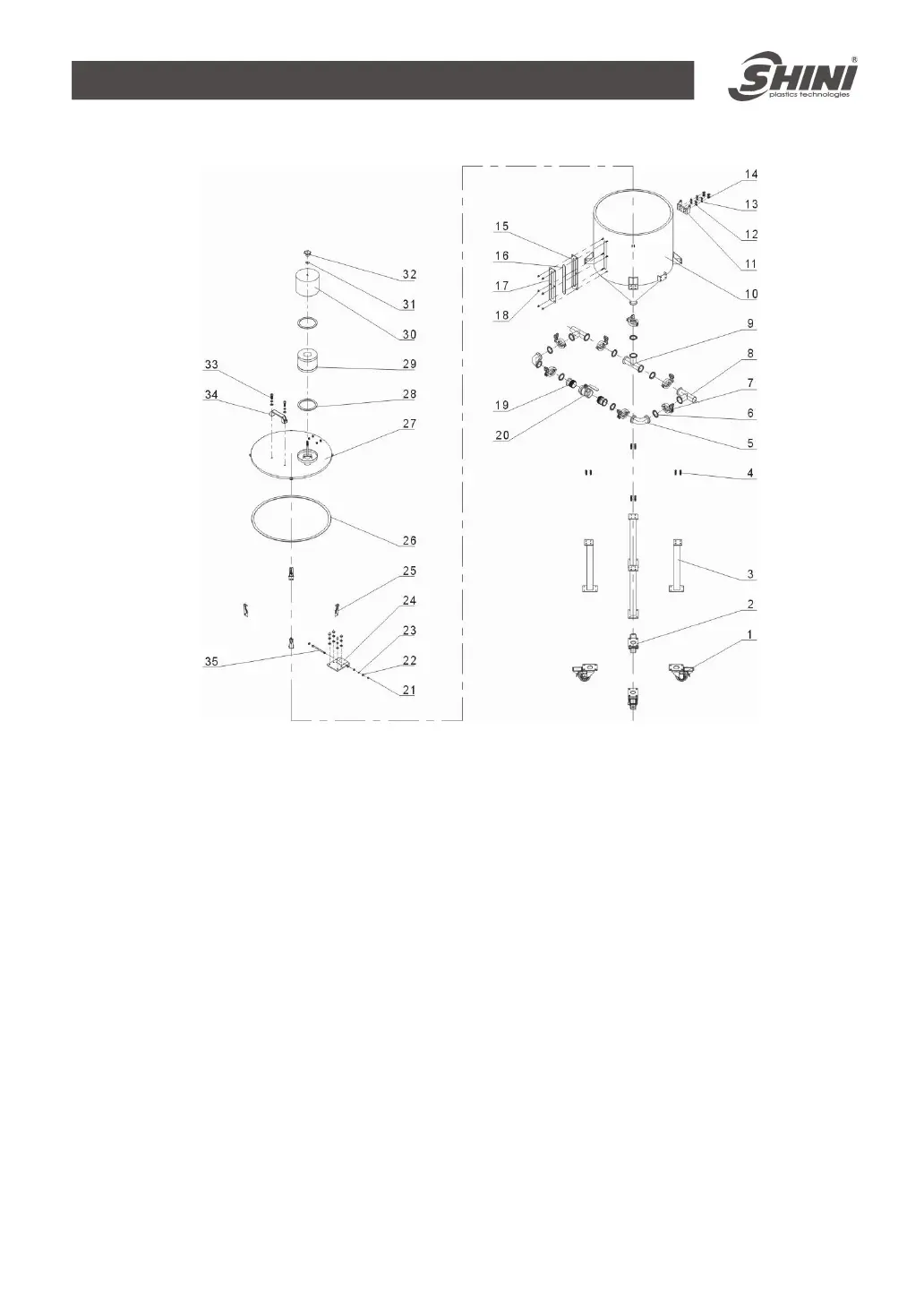

Picture 2-10：Material Stage Bin of Optical Grade MST-80U-OP
