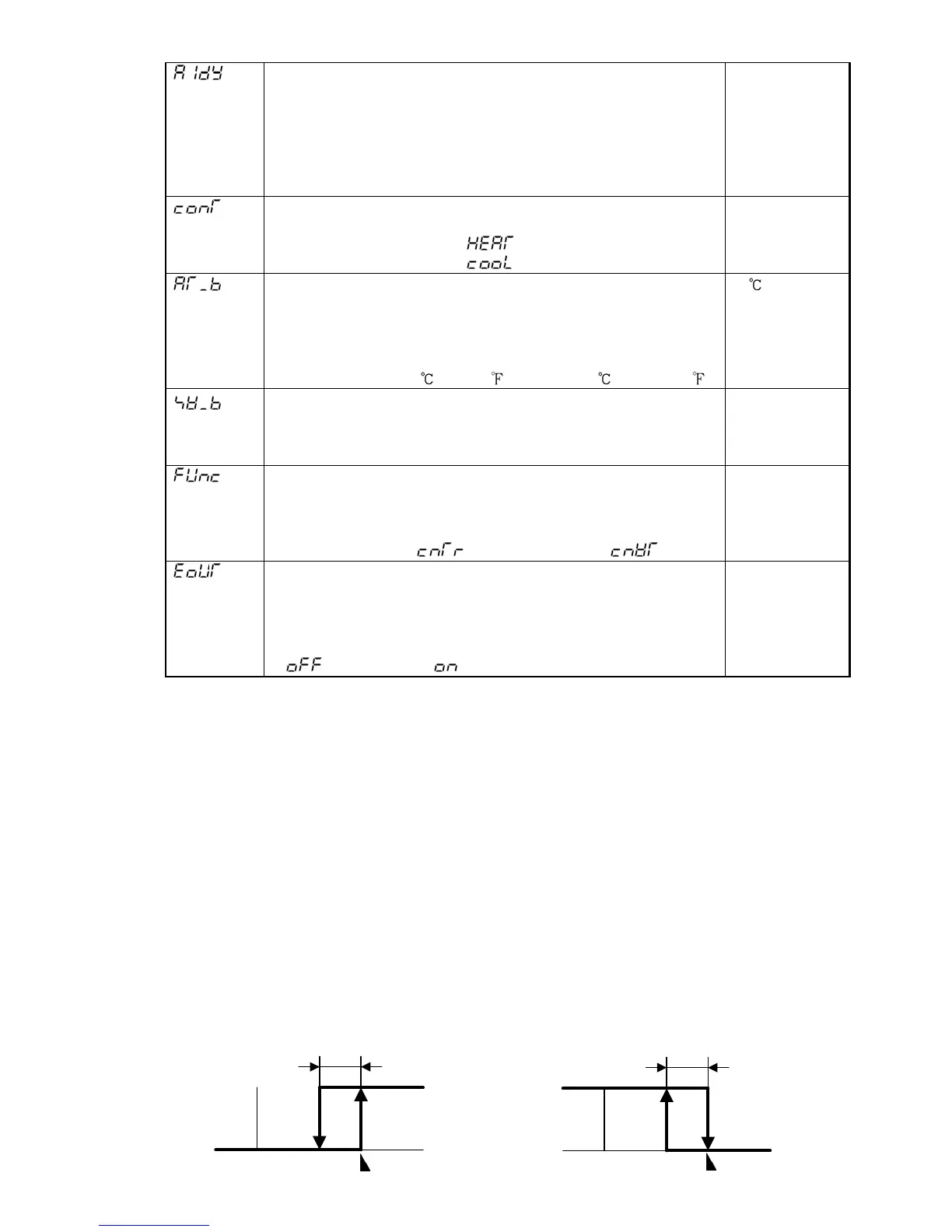

Alarm 1 hysteresis
ON
OFF
SV setting
+Alarm 1 setting point
¢
Alarm action delayed timer setting
Sets the alarm action delayed time. Alarm output activates
when the setting time has passed after the input enters alarm
output range.
This setting item is not indicated when “No alarm” action is
selected in [Alarm action selection].
Setting range: 0 to 9999 seconds
0 seconds
Direct/Reverse selection
Selects reverse (heating) or direct (cooling) control action.
Reverse (Heating) action :
Direct (Cooling) action :
Reverse
(Heating) action
AT bias setting
Set the PID auto-tuning bias value.
This setting item is not indicated when DC voltage or current
input is selected in [Sensor selection] and when action is not
PID, either.
Setting range: 0 to 50 (0 to 100 ) or 0.0 to 50.0 (0.0 to 100.0 )
20
SVTC bias setting
Control desired value
: Value that was received by SVTC command + SVTC bias value
This setting item is not indicated when [Option: C5] is not added.
0
Controller/ Converter function selection
Selects controller or converter function.
This setting item is indicated only when the control output
is DC current output type.
Controller function:
, Converter function:
Controller
function
Output status selection when input burnout
Selects whether the OUT output is turned OFF or not when
DC input is overscale or underscale.
This setting item is indicated only when DC input and DC
current output type.
(output OFF), (output ON)
Output OFF
Sensor correction function
This corrects the input value from the sensor. When a sensor cannot be set at a location where control
is desired, the sensor measuring temperature may deviate from the temperature in the controlled location.
When controlling with multiple controllers, the accuracy of the sensors or dispersion of load capacity
has influence on the control.
Therefore, sometimes the measured temperature (input value) does not concur with the same setting value.
In such case the control can be set at the desired temperature by correcting the input value of the sensors.
Loop break alarm
The alarm will be activated when the process variable (PV) does not rise as much value as the span or
greater within the time it takes to assess the Loop break alarm after the manipulated variable has reached
0% or the output low limit value. When the control action is Direct (Cooling), the alarm acts conversely.
Energized/Deenergized function
[If alarm action Energized is selected]
When the alarm output indicator is lit, the alarm output (between terminal 8 and 9) is conducted (ON).
When the alarm output indicator is unlit, the alarm output is not conducted (OFF).
[If alarm action Deenergized is selected]
When the alarm output indicator is lit, the alarm output (between terminal 8 and 9) is not conducted (OFF).
When the alarm output indicator is unlit, the alarm output is conducted (ON).
High limit alarm (Energized setting) High limit alarm (Deenergize
setting)
ON
OFF
Main setting
¢
+Alarm setting point
Alarm 1 hysteresis
