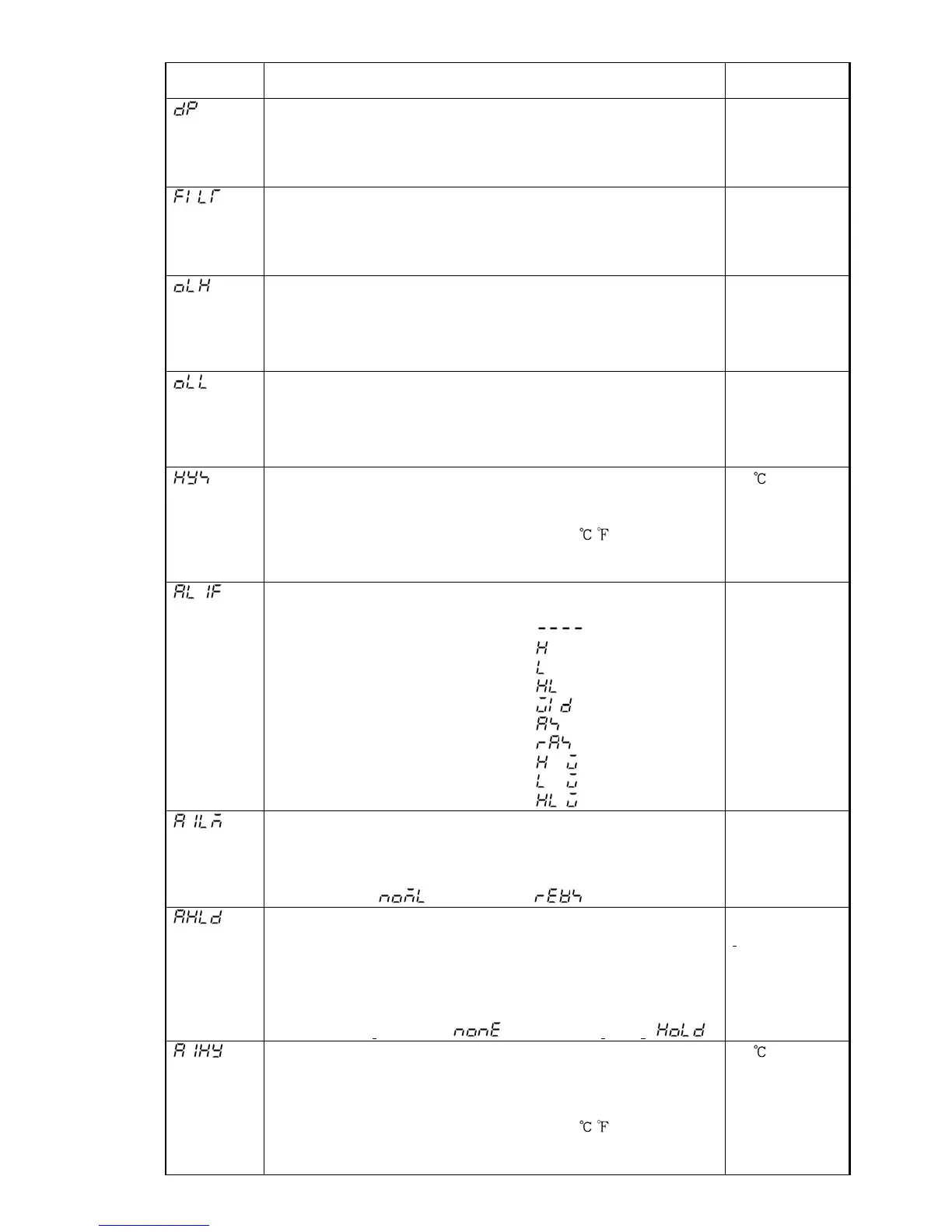

Shinko DCL-33A Instructions

(For DC voltage and current inputs, decimal point place follows
the selection.)
Decimal point place selection
• Selects the decimal point place.
However, when thermocouple or RTD input is selected in the
sensor selection, this setting item is not indicated.
• No decimal point to 3 digits after decimal point
No decimal
point
PV filter time constant setting
• Sets the PV filter time constant.
If the setting value is too large, it affects control result due to
the response delay.
• Setting range: 0.0 to 10.0 seconds
0.0 seconds
OUT high limit setting
• Sets the OUT high limit value.
• This setting item is not indicated when ON/OFF action.
• Setting range: OUT low limit value to 105%
Setting greater than 100% is effective to DC current output type.
100%
OUT low limit setting
• Sets the OUT low limit value.
• This setting item is not indicated during ON/OFF action.
• Setting range: -5% to OUT high limit value
Setting less than 0% is effective to DC current output type.
0%
OUT ON/OFF action hysteresis setting
• Sets the ON/OFF action hysteresis for the OUT.
• This setting item is indicated only for ON/OFF action (P=0).
• Thermocouple and RTD inputs: 0.1 to 100.0
( )
DC voltage and current inputs : 1 to 1000
(Decimal point place follows the selection)
1.0
Alarm action selection
• Selects an alarm action type.
No alarm :
High limit alarm :
Low limit alarm :
High/Low limits alarm :
High/Low limit range alarm :
Process high alarm :
Process low alarm :
High limit alarm with standby :
Low limit alarm with standby :
High/Low limits alarm with standby :
No alarm
Alarm action Energized/Deenergized
• Selects the alarm action Energized/Deenergized.
• This setting item is not indicated when “No alarm” action is
selected in [Alarm action selection].
• Energized :
, Deenergized:
Energized
Alarm HOLD function selection
• Selects whether alarm HOLD function is [Used] or not.
If alarm HOLD function is set to [Used], once the alarm
functions, alarm output remains until the power is turned off.
• This setting item is not indicated when “No alarm” action is
selected in [Alarm action selection].
• Alarm HOLD [
Not used]: , Alarm HOLD [Used]:
Alarm HOLD
[
Not used]
Alarm hysteresis setting
• Sets the alarm hysteresis.
• This setting item is not indicated when “No alarm” action is
selected in [Alarm action selection].
• Thermocouple and RTD inputs: 0.1 to 100.0
( )
DC voltage and current inputs : 1 to 1000 (Decimal point
place follows the selection.)
1.0
