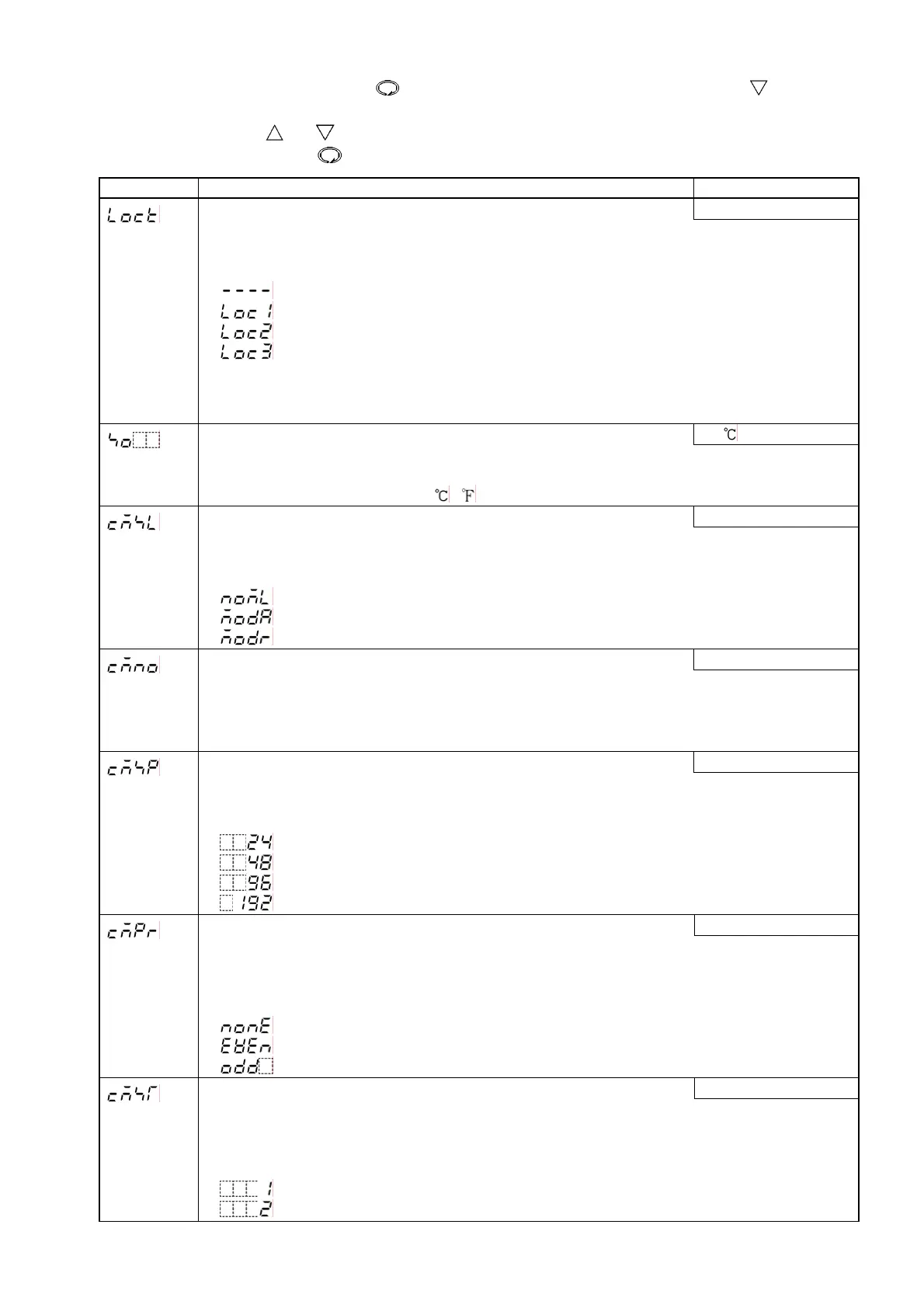

5.4 Sub setting mode
Sets Set value lock, Sensor correction, Communication parameters (when C5 option is added), etc.
In the PV/SV display mode, press the
key for approx. 3 seconds while holding down the key to
proceed to the Sub setting mode.
To set values, use the
or key.
To register the value, use the
key.
Character Name, Function, Setting range Default value
Set value lock selection Unlock
• Locks the set values to prevent setting errors.
The setting item to be locked depends on the selection.
• Selection range:
(Unlock): All set values can be changed.
(Lock 1): None of the set values can be changed.
(Lock 2): Only SV (desired value) can be changed.
(Lock 3): All set values can be changed.
However, do not change any setting item in the Setup mode.
Changed values revert to their previous value after power is turned
off because they are not saved in the non-volatile memory.
Sensor correction setting 0.0
• Sets the correction value for the sensor.
PV= Current actual temperature + Sensor correction value
• Setting range: –100.0 to 100.0
( ), or –1000 to 1000
Communication protocol selection Shinko protocol
• Selects the communication protocol.
• Available only when the C5 option is applied.
• Selection range:
: Shinko protocol
: Modbus ASCII mode
: Modbus RTU mode
Instrument number setting 0
• Sets the instrument number individually to each instrument when communicating
by connecting plural instruments in serial communication.
• Available only when the C5 option is added.
• Setting range: 0 to 95
Communication speed selection 9600bps
• Selects a communication speed equal to that of the host computer.
• Available only when the C5 option is added.
• Selection range:
: 2400bps
: 4800bps
: 9600bps
: 19200bps
Parity selection Even parity
• Selects the parity.
• Not available if the C5 option is not added or if Shinko protocol is selected
during the Communication protocol selection.
• Selection range:
: No parity
: Even parity
: Odd parity
Stop bit selection 1
• Selects the stop bit.
• Not available if the C5 option is not added or if Shinko protocol is selected
during the Communication protocol selection.
• Setting range:
: 1
: 2
