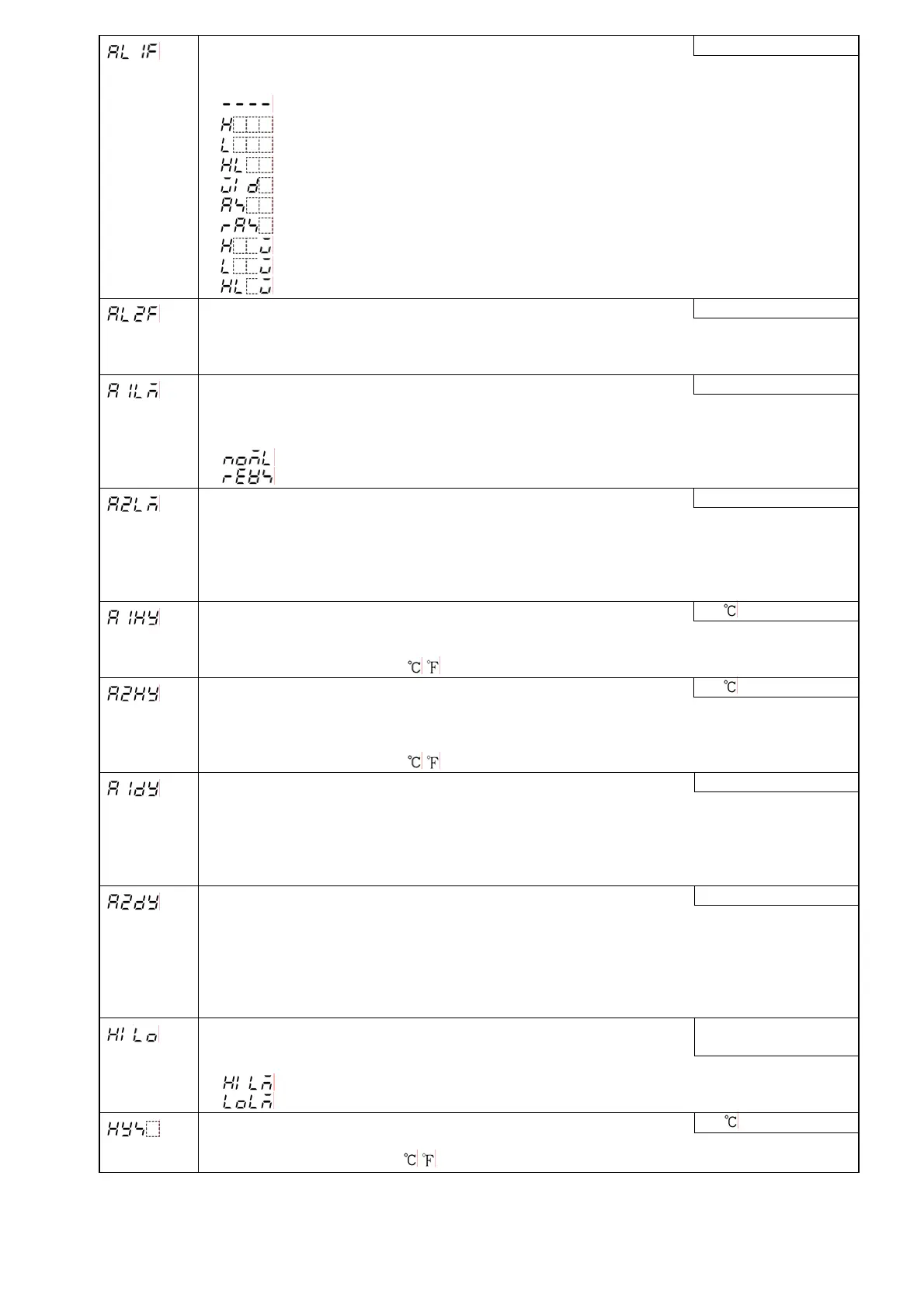

A1 type selection
No alarm action
• Selects an action type for A1.
• Selection range:
: No alarm action
: High limit alarm
: Low limit alarm
: High/Low limits alarm
: High/Low limit range alarm
: Process high alarm
: Process low alarm
: High limit alarm with standby
: Low limit alarm with standby
: High/Low limits alarm with standby
A2 type selection
No alarm action
• Selects an action type for A2.
• Available only when A2 option is added
• Selection range and default value are the same as those of A1 type selection.
A1 action Energized/Deenergized selection
Energized
• Selects Energized/Deenergized for A1.
• Not available if No alarm action is selected during A1 type selection
• Selection range:
: Energized
: Deenergized
A2 action Energized/Deenergized selection
Energized
• Selects Energized/Deenergized for A2.
• Not available if A2 option is not added or if No alarm action is selected during
A2 type selection
• Selection range and default value are the same as those of A1 action
Energized/Deenergized selection.
A1 hysteresis setting
1.0
• Sets hysteresis for A1.
• Not available if No alarm action is selected during A1 type selection
• Setting range: 0.1 to 100.0
( ), or 1 to 1000
A2 hysteresis setting
1.0
• Sets hysteresis for A2.
• Not available if A2 option is not added or if No alarm action is selected during A2 type
selection
• Setting range: 0.1 to 100.0
( ), or 1 to 1000
A1 action delayed timer setting 0 seconds
• Sets action delayed timer for A1.
When setting time has elapsed after the input enters the alarm output range, the alarm
is activated.
• Not available if No alarm action is selected during A1 type selection
• Setting range: 0 to 9999 seconds
A2 action delayed timer setting
0 seconds
• Sets action delayed timer for A2.
When setting time has elapsed after the input enters the alarm output range, the alarm
is activated.
• Not available if A2 option is not added or if No alarm action is selected during A2 type
selection
• Setting range: 0 to 9999 seconds
High/Low limit control action selection
• Selects either High limit or Low limit control action.
High limit control
action
• Selection range:
: High limit control action
: Low limit control action
OUT (Limit control output) hysteresis setting
1.0
• Sets OUT (Limit control output) hysteresis.
• Setting range: 0.1 to 100.0 ( ), or 1 to1000
