3.4 Mounting
Mount the controller vertically to ensure it adheres to the Dust-proof/Drip-proof specification (IP66).
Mountable panel thickness: 1 to 15mm

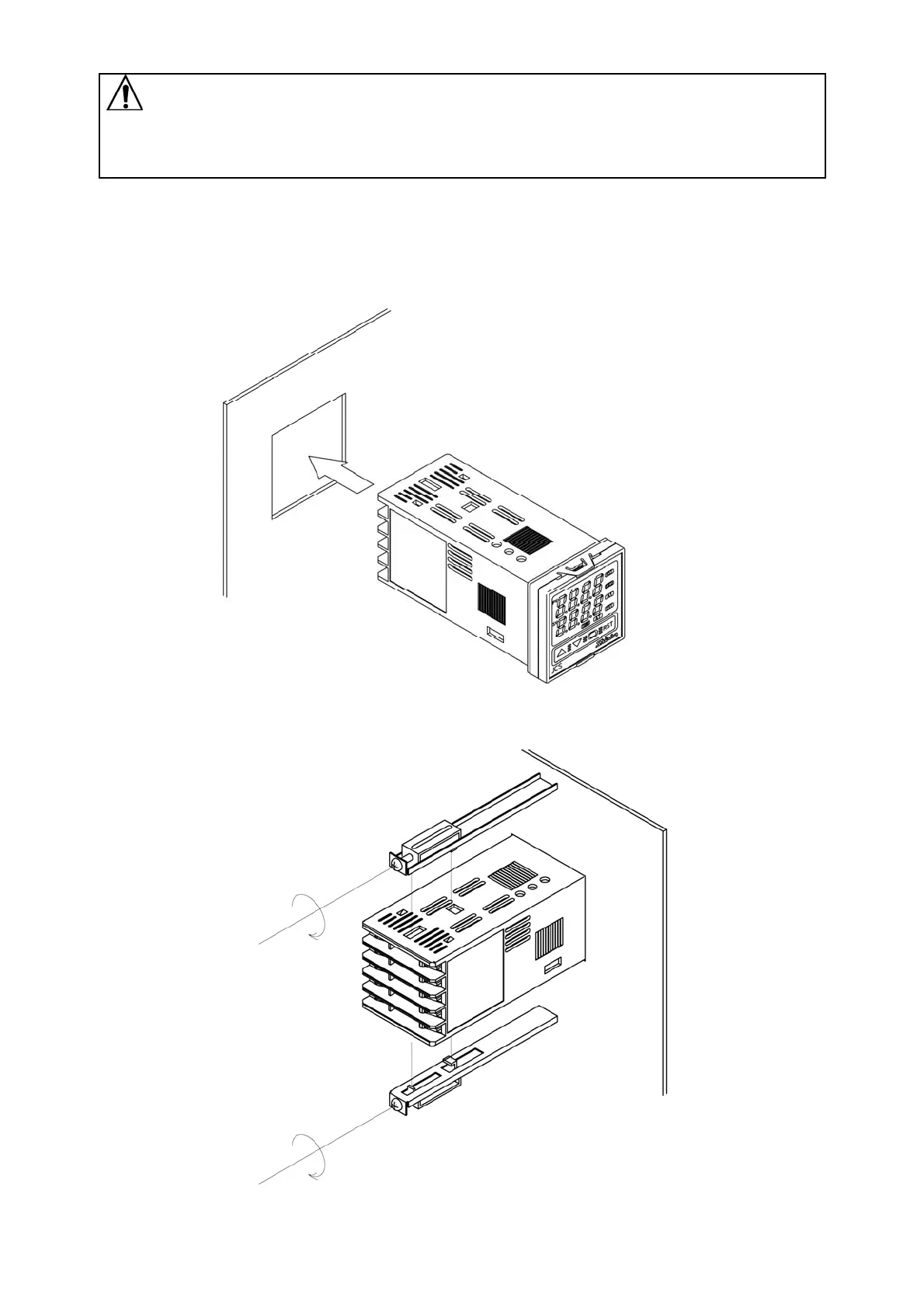

(1) Insert the controller from the front side of the panel. (Fig.3.4-1)
(2) Attach the mounting brackets by the holes at the top and bottom of the case and secure the controller
in place with the screws. (Fig.3.4-2)
(Fig.3.4-1)
(Fig.3.4-2)
Caution
As the case is made of resin, do not use excessive force while screwing in the
mounting bracket, or the case or screw type mounting bracket could be damaged.
The torque is approximately 0.12N•m.
