Model W1849 (For Machines Mfd. Since 11/16)
SERVICE
Aligning Wheels
The following adjustment was performed at the factory
and should not need to be performed again unless there
is a wheel alignment problem, or one or more wheels are
replaced.
When wheels are coplanar (see Figure 98), the bandsaw
is more likely to cut straight without wandering; and
vibration, heat, and blade wear are considerably
decreased because the blade is automatically balanced on
the wheel.
Bringing the wheel into alignment may require a
combination of shimming a wheel and adjusting the
position of the lower wheel shaft.
Items Needed Qty
53" Long 2x4 .....................................................1
Hex Wrenches 4 & 6 mm ..................................1 Ea
Wrench 13mm ...................................................1
Tape Measure ....................................................1
Fine Ruler ........................................................1

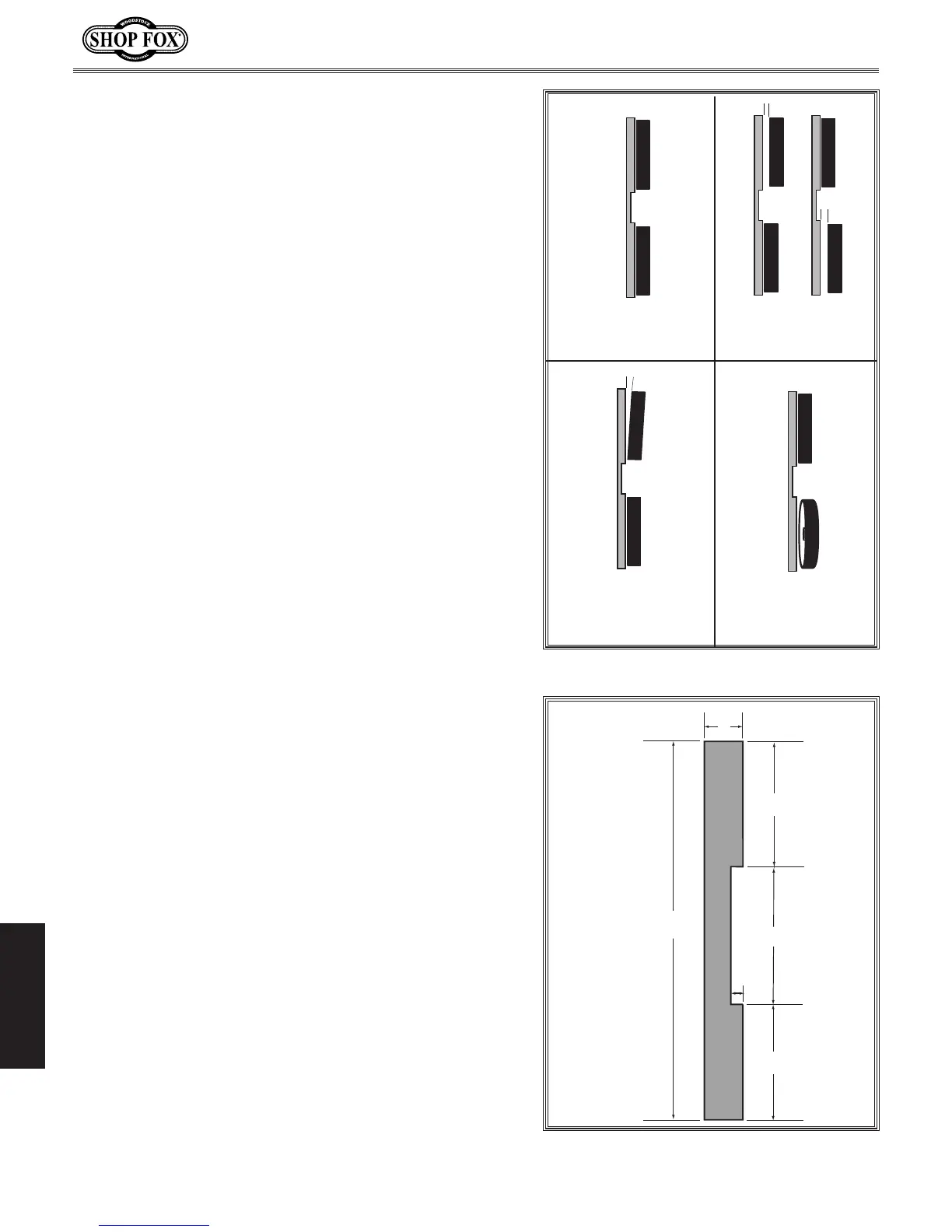

Figure 98. Wheel alignment illustration.
or
Wheels parallel and
coplanar.
Wheels parallel, but
not coplanar.
Upper wheel is not
vertically aligned with
lower wheel.
Lower wheel is not
laterally aligned with
upper wheel.
Coplanarity Gauge
WHEEL
WHEEL
Figure 99. Dimensions of coplanarity
gauge.
Side View
53"
3
1
⁄2"
15"
15"
23"
1
1
⁄2"
Checking Wheel Alignment
1. Make "Coplanarity Gauge" shown in Figures 98–99.
Note: For best results, straighten the 2x4 with a
jointer before cutting. Alternatively, you can cut
the gauge out of a new sheet of
1
⁄2"—
3
⁄4" plywood
using a table saw. The "factory edge" of the plywood
will ensure a straight and parallel gauge.
2. DISCONNECT MACHINE FROM POWER!
3. Remove blade (refer to Changing Blade on Page 50),
remove table, then re-install and properly tension
blade (refer to Tensioning Blade on Page 30).
