Shop fox W1849 - Fence

-81-
Model W1849 (For Machines Mfd. Since 11/16)
PARTS

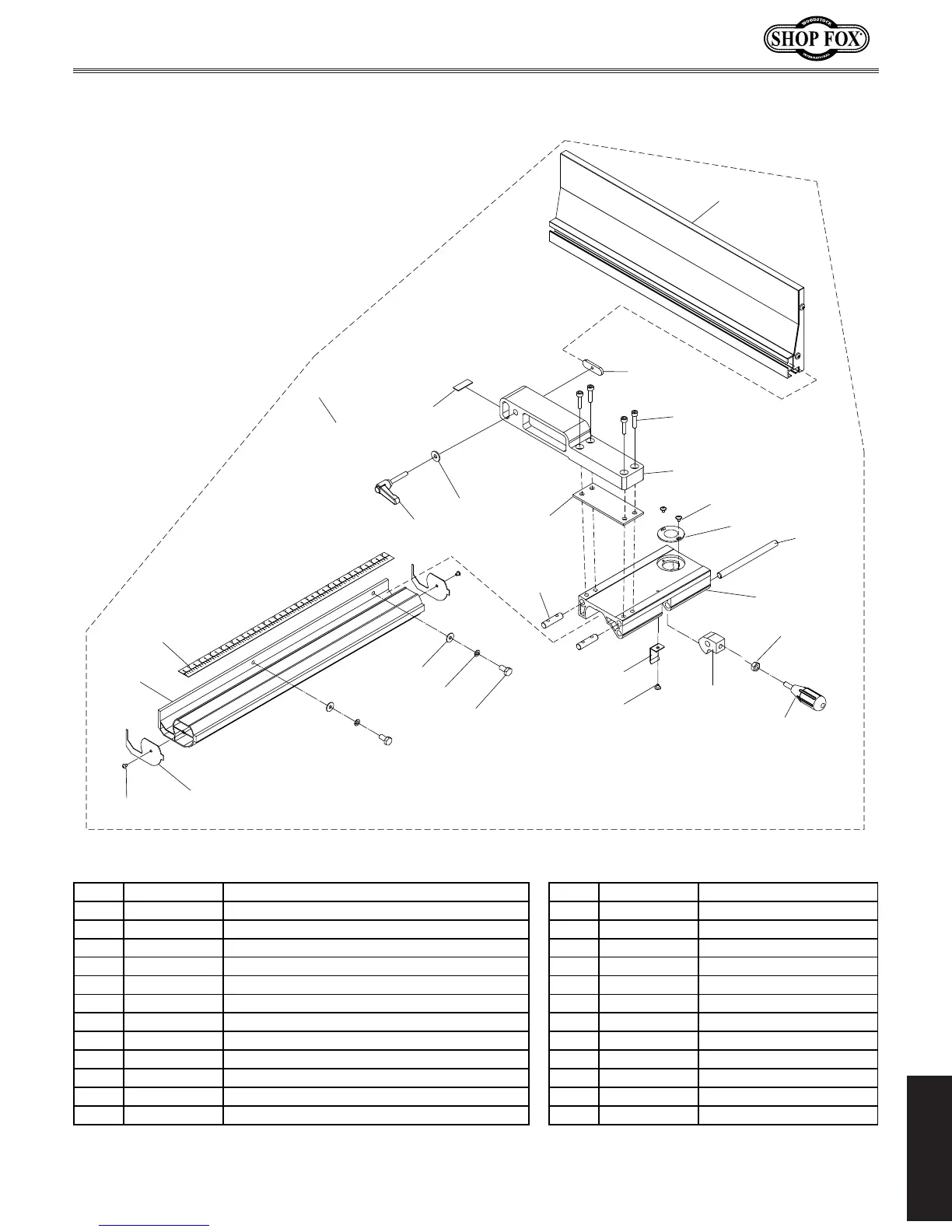

Fence
REF PART # DESCRIPTION REF PART # DESCRIPTION
102 X1849102 FENCE ASSEMBLY 102-13 X1849102-13 LOCK CAM
102-1 X1849102-1 FENCE RAIL 102-15 X1849102-15 HEX NUT M8-1.25
102-2 X1849102-2 FENCE BASE 102-16 X1849102-16 FLANGE SCREW M4-.7 X 6
102-3 X1849102-3 ALIGNMENT PIN 102-17 X1849102-17 FENCE RAIL END CAP
102-4 X1849102-4 LOCK CAM SHAFT 102-18 X1849102-18 FENCE GUIDE PLATE
102-5 X1849102-5 SPRING PLATE 102-20 X1849102-20 TAP SCREW M3.5 X 12
102-6 X1849102-6 ADJ HANDLE 78L, M8-1.25 X 50 102-21 X1849102-21 FENCE SCALE
102-7 X1849102-7 FENCE MOUNT BRACKET 102-22 X1849102-22 LOCK WASHER 6MM
102-8 X1849102-8 FLAT WASHER 8MM 102-24 X1849102-24 HEX BOLT M6-1 X 20
102-9 X1849102-9 LOCK HANDLE M8-1.25 X 22, 30 X 77 102-25 X1849102-25 FLANGE SCREW M4-.7 X 8
102-10 X1849102-10 SLIDE (NYLON) 102-26 X1849102-26 FLAT WASHER 6MM
102-11 X1849102-11 SCALE WINDOW 102-27 X1849102-27 FENCE MOUNTING PLATE
102-12 X1849102-12 CAP SCREW M6-1 X 25 102-28 X1849102-28 RESAW FENCE
