SHOWTEC Explorer 250 Pro - Product Specifications; Product Specification

23
Product Specification
Model: Showtec Explorer Pro
Voltage: 240V-50Hz (CE)
Fuse: 10A / 250V

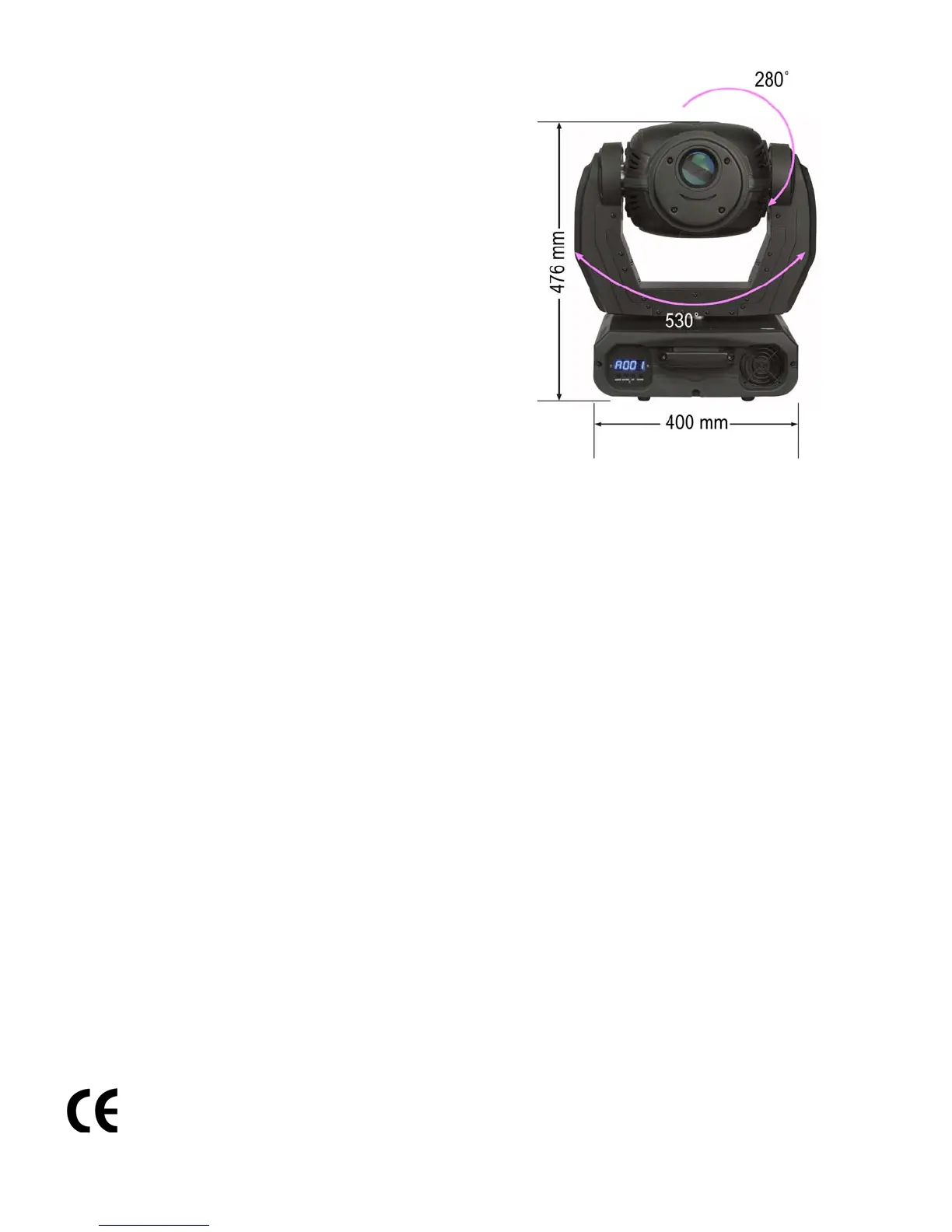

Dimensions: 400x400x476mm (LxWxH)
Weight: 26 kg
Operation and Programming
Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+)
Set Up and Addressing: LED control panel
DMX Channels: 16
Signal input 3-pin XLR male
Signal output 3-pin XLR female
Lamp
Allowed lamp models*:
Showtec NSD 250/2 (2000 hr) (ordercode 82603)
Philips MSD 250 (3000 hr; 6700K) ordercode 80920P
Osram HSD 250 (2000 hr; 6000K) ordercode 80926O
Osram HSD 250/78 (1000 hr; 7800K) (ordercode 80933O)
Osram HSD 250/80 (1000 hr; 8000K) (ordercode 80935)
Control: Automatic and DMX remote ON / OFF
Electro-mechanical effects
Colors: 7 colors plus white
Gobos rotating: 2 rotating metal gobos, 3 rotating glass gobos and open
Static Gobo-wheel: 2 static gobos, 1 glass gobo and 3 color gobos
Colour-wheel with variable rotation speed
Gobo rotation: adjustable speed,
All lenses are anti-reflection coated
High luminous-efficiency parabolic system
Strobe-effect with variable speed (1 flash -- 10 flashes/sec.)
DMX-control via standard DMX-controller
Pan 0º -- 530º
Tilt 0º -- 280º
Automatic Pan / Tilt position correction
Zoom: 15º, 18º, 21º, 24º, 26º
Prism: 3-facet prism
Gobos
Glass gobo: heat-resistant and intensify glass; dichroic glas coating
Max. ambient temperature t
a
: 40°C; Max. housing temperature t
B
: 80°C
Rotating Gobo wheel: Outer diameter: 37mm, Inner diameter: 29mm
Static Gobo wheel: Outer diameter: 37mm, Inner diameter: 29mm
Cooling: 3 axial fans - two fan in the projector and one in the base
Motor: high quality stepping-motor controlled by microprocessors
Minimum distance:
Minimum distance from flammable surfaces: 0.5m
Minimum distance to lighted object: 2m
*: Versions for other lamps may be produced. Please check the specification label on your product.
Design and product specifications are subject to change without prior notice.
