Ordercode: 40070
Phantom 65

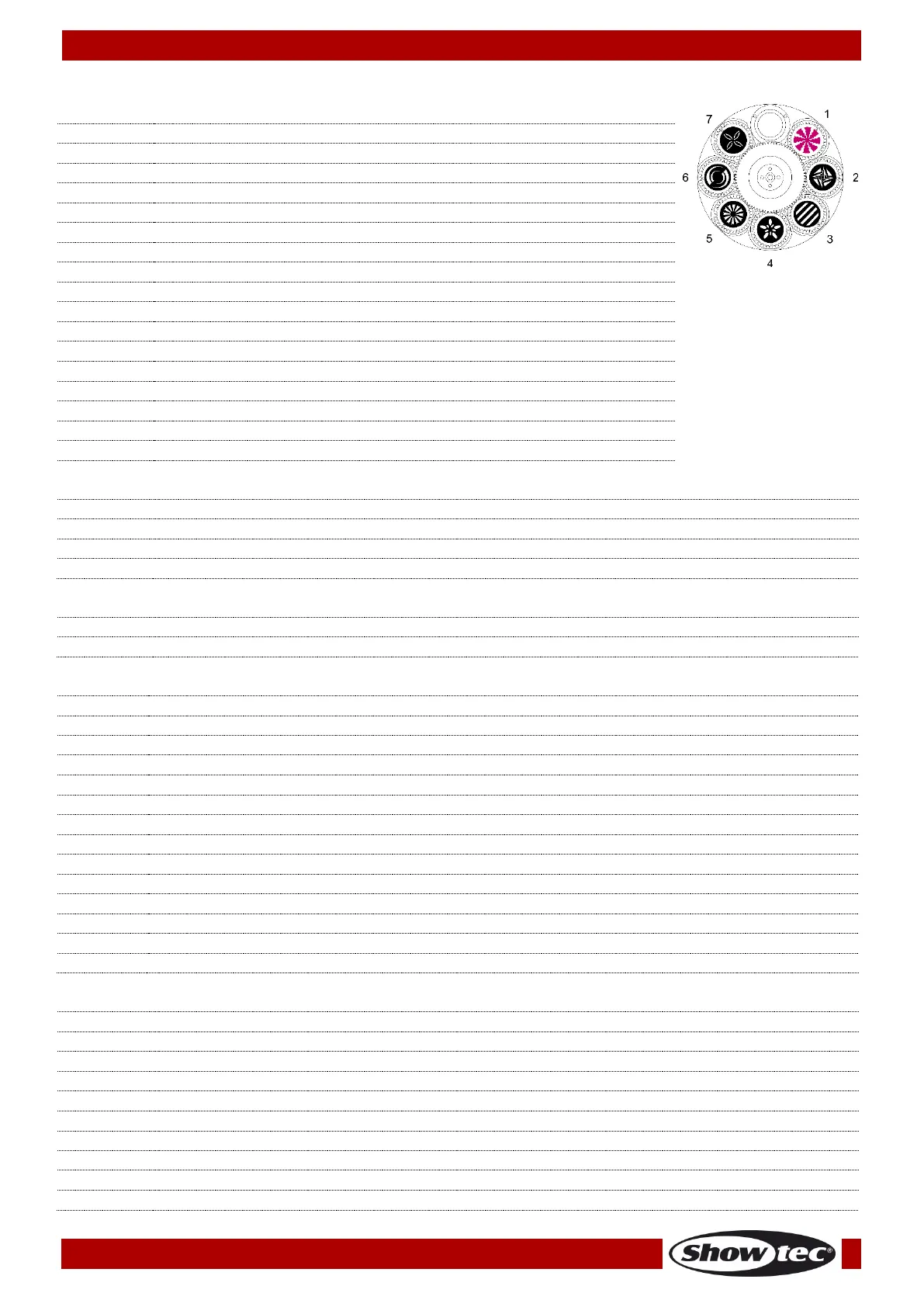

Channel 9 – Rotating Gobo wheel + Gobo Shake
0-7
Open / White
8-15
Gobo 1 (Glass)
16-23
Gobo 2 (Metal)
24-31
Gobo 3 (Metal)
32-39
Gobo 4 (Metal)
40-47
Gobo 5 (Metal)
48-55
Gobo 6 (Metal)
56-63
Gobo 7 (Metal)
64-71
Gobo Shake 7 from slow to fast
72-79
Gobo Shake 6 from slow to fast
80-87
Gobo Shake 5 from slow to fast
88-95
Gobo Shake 4 from slow to fast
96-103
Gobo Shake 3 from slow to fast
104-111
Gobo Shake 2 from slow to fast
112-119
Gobo Shake 1 from slow to fast
120-127
Open / White
128-191
Clockwise rotation (CW) rainbow effect from slow to fast
192-255
Counterclockwise rotation (CCW) rainbow effect from slow to fast
Channel 10 – Gobo rotation
0-7
No function
8-119
Clockwise rotation (CW) from slow to fast
120-231
Counterclockwise rotation (CCW) from slow to fast
232-255
Gobo bouncing, from quick short bounce to longer rotation bounce
Channel 11 – Prism
0-15
Not functional
16-255
Prism
Channel 12 – Channel Functions
0-7
Not functional
8-27
Blackout during Pan/Tilt movement
28-47
Blackout during gobo wheel movement
48-67
Blackout during Pan-Tilt/gobo wheel movement
68-107
Blackout during color wheel movement
108-127
Blackout during color wheel/gobo wheel movement
128-147
Blackout during Pan-Tilt/color wheel movement/gobo wheel movement
148-157
Reset Pan
158-167
Reset Tilt
168-177
Reset Color wheel
178-187
Reset Gobo wheel
188-197
Reset prism (CH11 must be on and then set to off, then the prism wheel will reset)
198-207
Reset all
208-255
Not functional
Channel 13 – Built-in Programs + Sound-controlled Programs
0-7
No Function
8-23
Built-in Program 1
24-39
Built-in Program 2
40-55
Built-in Program 3
56-71
Built-in Program 4
72-87
Built-in Program 5
88-103
Built-in Program 6
104-119
Built-in Program 7
120-135
Built-in Program 8
136-151
Sound-controlled Program 1
