SHOWTEC PHANTOM 65 V1 - Channels

19
Ordercode: 40070
Phantom 65
13 Channels
Channel 1 – Horizontal movement (Pan)
Move the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Move the slider up, in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 – Pan fine 16 bit
Channel 4 – Tilt fine 16 bit
Channel 5 – PAN/TILT Speed
0-255
From Max Speed (0) to Min. Speed (255)
Channel 6 – Dimmer intensity
0-255
From dark to brightest
Channel 7 – Strobe
0-7
Not functional
8-15
Open
16-131
Synchronized strobe, from low to high frequency
132-167
Fast close/slow open strobe, from low to high frequency
168-203
Slow close/fast open strobe, from low to high frequency
204-239
Pulse strobe, from low to high frequency
240-250
Random strobe effect, from low to high frequency
251-255
Open

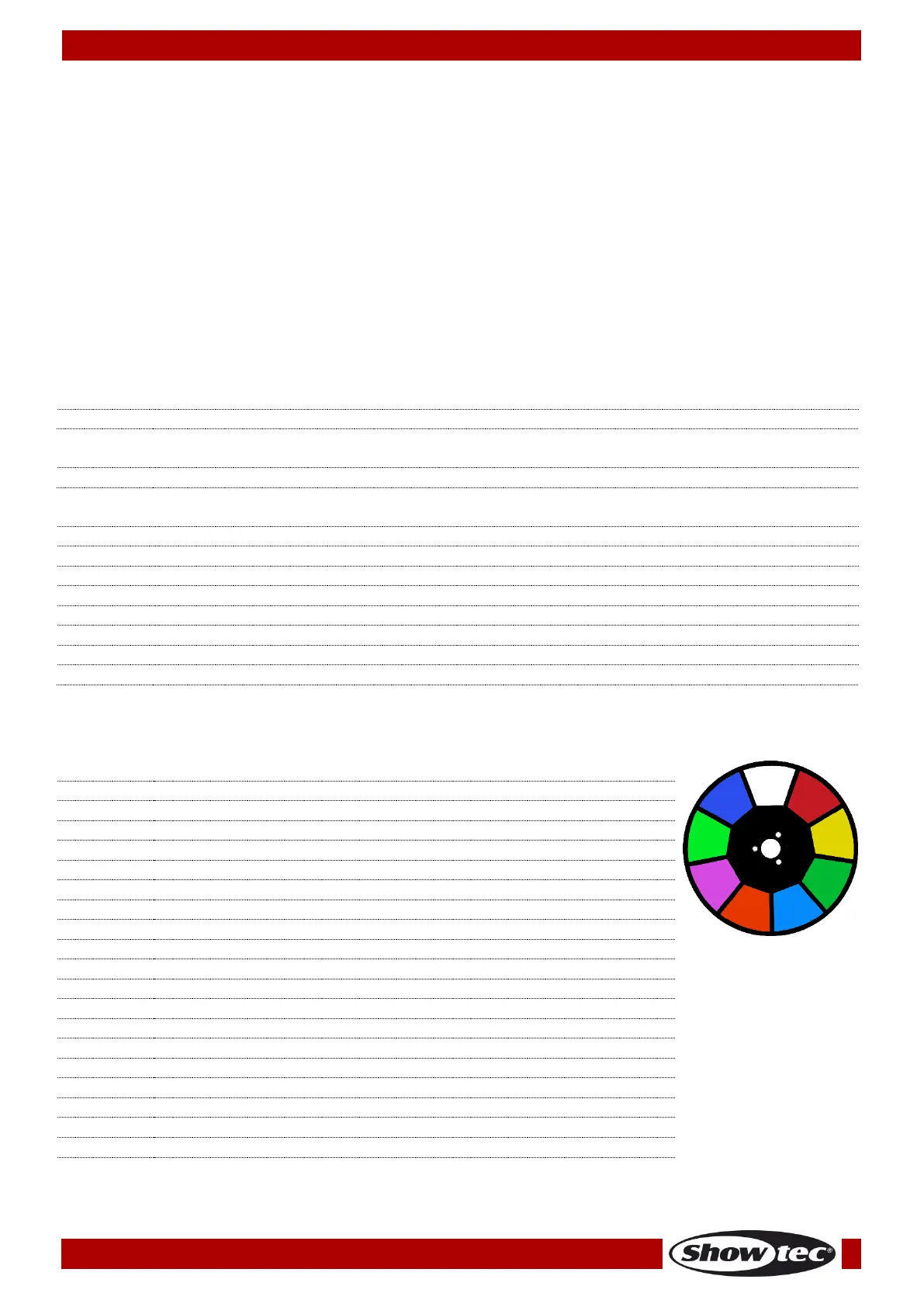

Channel 8 – Color wheel
Linear color change following the movement of the slider. Between 196-224 and 227-255, the color wheel
rotates continuously (so-called “Rainbow” effect).
0-6
Open / White
7-13
Red
14-20
Yellow
21-27
Green
28-34
Light Blue
35-41
Orange
42-48
Pink
49-55
Light Green
56-64
UV
65-71
Split color White/Red
72-78
Split color Red/Yellow
79-85
Split color Yellow/Green
86-92
Split color Green/Light Blue
93-99
Split color Light Blue/Orange
100-106
Split color Orange/Pink
107-113
Split color Pink/Light Green
114-120
Split color Light Green/UV
121-127
Split color UV/White
128-191
Clockwise rotation (CW) rainbow effect from slow to fast
192-255
Counterclockwise rotation (CCW) rainbow effect from slow to fast
