Shure Incorporated
21/38

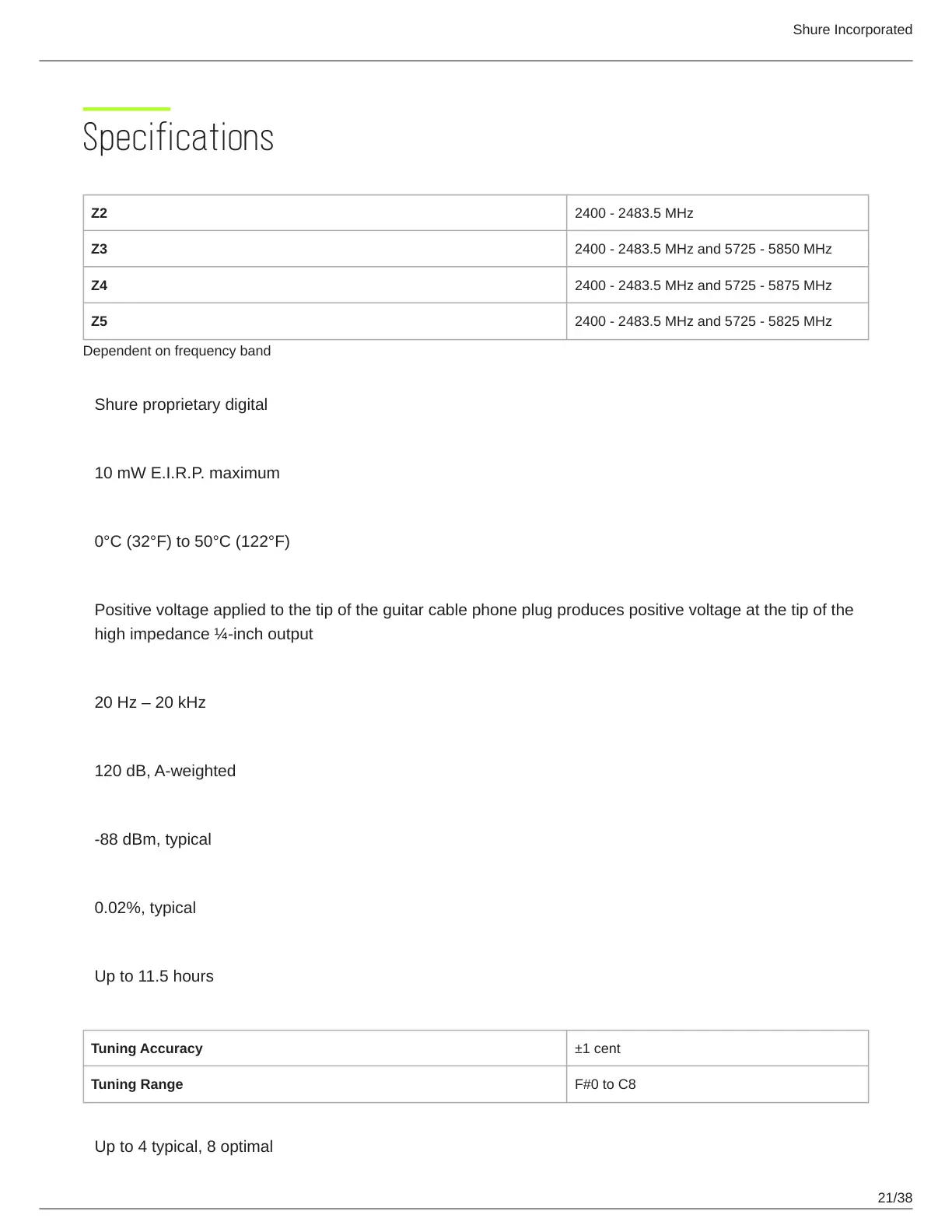

Specifications
Tuning Bandwidth
Z2 2400 - 2483.5 MHz
Z3 2400 - 2483.5 MHz and 5725 - 5850 MHz
Z4 2400 - 2483.5 MHz and 5725 - 5875 MHz
Z5 2400 - 2483.5 MHz and 5725 - 5825 MHz
Dependent on frequency band
Transmit Mode
Shure proprietary digital
RF Output Power
10 mW E.I.R.P. maximum
Operating Temperature Range
0°C (32°F) to 50°C (122°F)
Polarity
Positive voltage applied to the tip of the guitar cable phone plug produces positive voltage at the tip of the
high impedance ¼-inch output
Audio Frequency Response
20 Hz – 20 kHz
Dynamic Range
120 dB, A-weighted
RF Sensitivity
-88 dBm, typical
Total Harmonic Distortion
0.02%, typical
Battery Life
Up to 11.5 hours
Guitar Tuner
Tuning Accuracy ±1 cent
Tuning Range F#0 to C8
Channel Count
Up to 4 typical, 8 optimal
