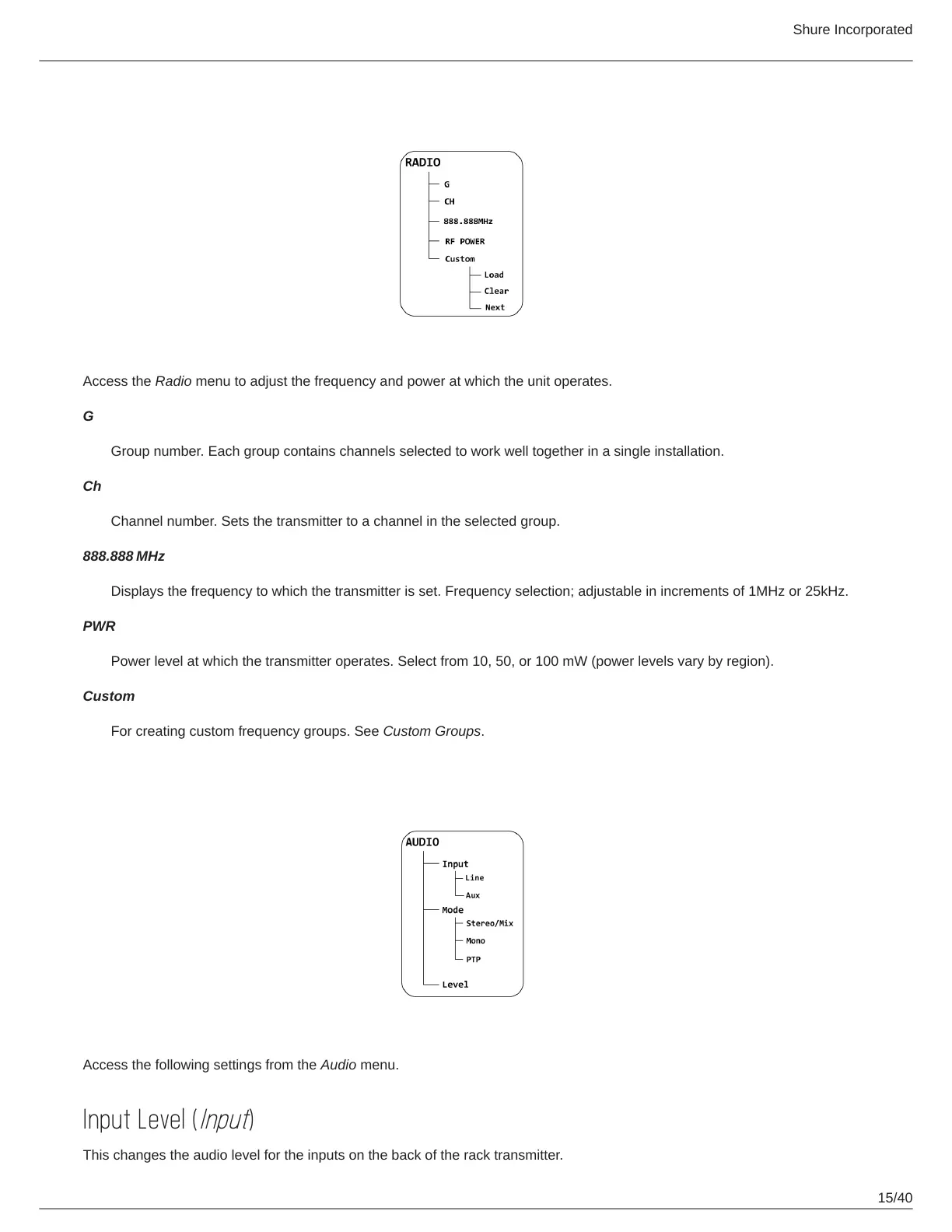

Radio Frequency (RF) Settings
Access the Radio menu to adjust the frequency and power at which the unit operates.
G
Group number. Each group contains channels selected to work well together in a single installation.
Ch
Channel number. Sets the transmitter to a channel in the selected group.
888.888 MHz
Displays the frequency to which the transmitter is set. Frequency selection; adjustable in increments of 1MHz or 25kHz.
PWR
Power level at which the transmitter operates. Select from 10, 50, or 100 mW (power levels vary by region).
Custom
For creating custom frequency groups. See Custom Groups.
Audio Settings
Access the following settings from the Audio menu.
Input Level ( Input )
This changes the audio level for the inputs on the back of the rack transmitter.

Shure PSM1000 Specifications

General

Frequency Range	470–952 MHz (country dependent)
Operating Range	100 m (328 ft) (Typical)
Audio Input	XLR
Network Interface	Ethernet
Receiver Audio Output	XLR, 1/4" (6.3 mm) balanced/unbalanced
Receiver Battery Type	AA
Power Supply	100 to 240 V AC, 50-60 Hz
Weight	Varies by model (refer to specific model documentation)
