Shure Incorporated
21/40

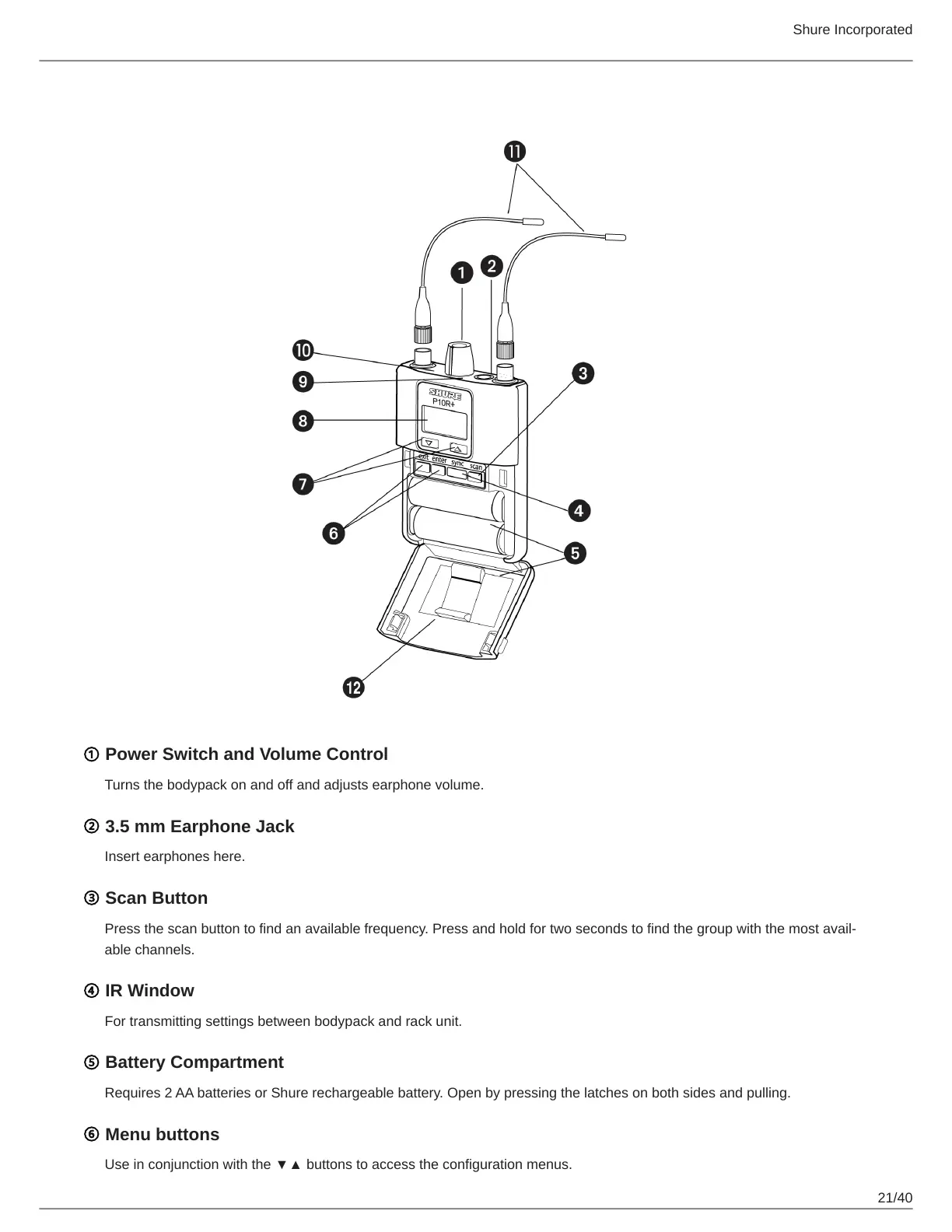

Bodypack Receiver
Power Switch and Volume Control
Turns the bodypack on and off and adjusts earphone volume.
3.5 mm Earphone Jack
Insert earphones here.
Scan Button
Press the scan button to find an available frequency. Press and hold for two seconds to find the group with the most avail
able channels.
IR Window
For transmitting settings between bodypack and rack unit.
Battery Compartment
Requires 2 AA batteries or Shure rechargeable battery. Open by pressing the latches on both sides and pulling.
Menu buttons
Use in conjunction with the ▼▲ buttons to access the configuration menus.

Other manuals for Shure PSM1000

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Shure PSM1000 and is the answer not in the manual?

Shure PSM1000 Specifications

General IconGeneral
Frequency Range470–952 MHz (country dependent)
Operating Range100 m (328 ft) (Typical)
Audio InputXLR
Network InterfaceEthernet
Receiver Audio OutputXLR, 1/4" (6.3 mm) balanced/unbalanced
Receiver Battery TypeAA
Power Supply100 to 240 V AC, 50-60 Hz
WeightVaries by model (refer to specific model documentation)
