Shure PSM1000 User Manual

Shure Incorporated
11/40
1.
2.
3.
4.
5.
Bodypack

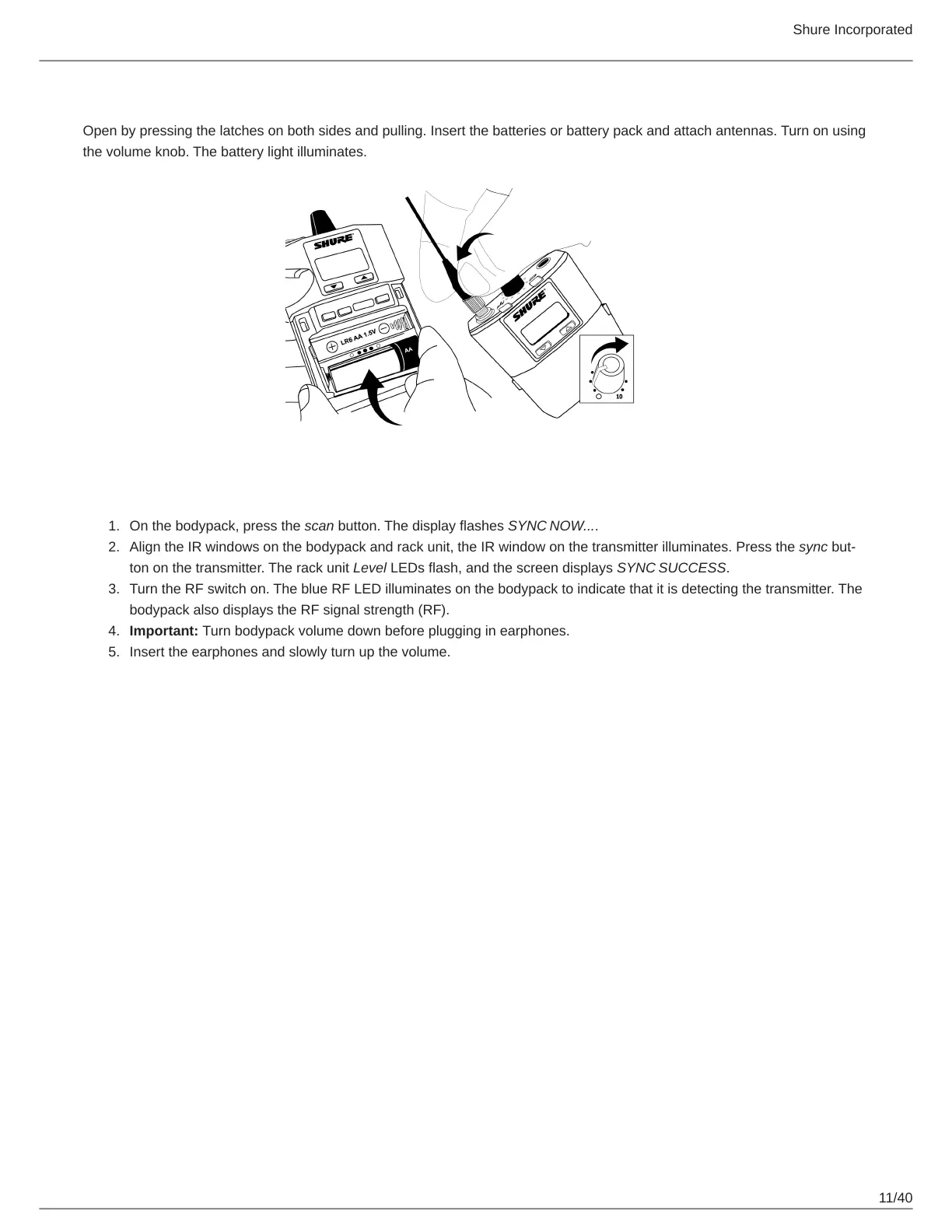

Open by pressing the latches on both sides and pulling. Insert the batteries or battery pack and attach antennas. Turn on using
the volume knob. The battery light illuminates.
Scan and Sync
On the bodypack, press the scan button. The display flashes SYNC NOW....
Align the IR windows on the bodypack and rack unit, the IR window on the transmitter illuminates. Press the sync but
ton on the transmitter. The rack unit Level LEDs flash, and the screen displays SYNC SUCCESS.
Turn the RF switch on. The blue RF LED illuminates on the bodypack to indicate that it is detecting the transmitter. The
bodypack also displays the RF signal strength (RF).
Important: Turn bodypack volume down before plugging in earphones.
Insert the earphones and slowly turn up the volume.

Shure PSM1000 Specifications

General

Frequency Range	470–952 MHz (country dependent)
Operating Range	100 m (328 ft) (Typical)
Audio Input	XLR
Network Interface	Ethernet
Receiver Audio Output	XLR, 1/4" (6.3 mm) balanced/unbalanced
Receiver Battery Type	AA
Power Supply	100 to 240 V AC, 50-60 Hz
Weight	Varies by model (refer to specific model documentation)
