Shure SCM268 User Manual

Shure Incorporated
11/16
1.
2.

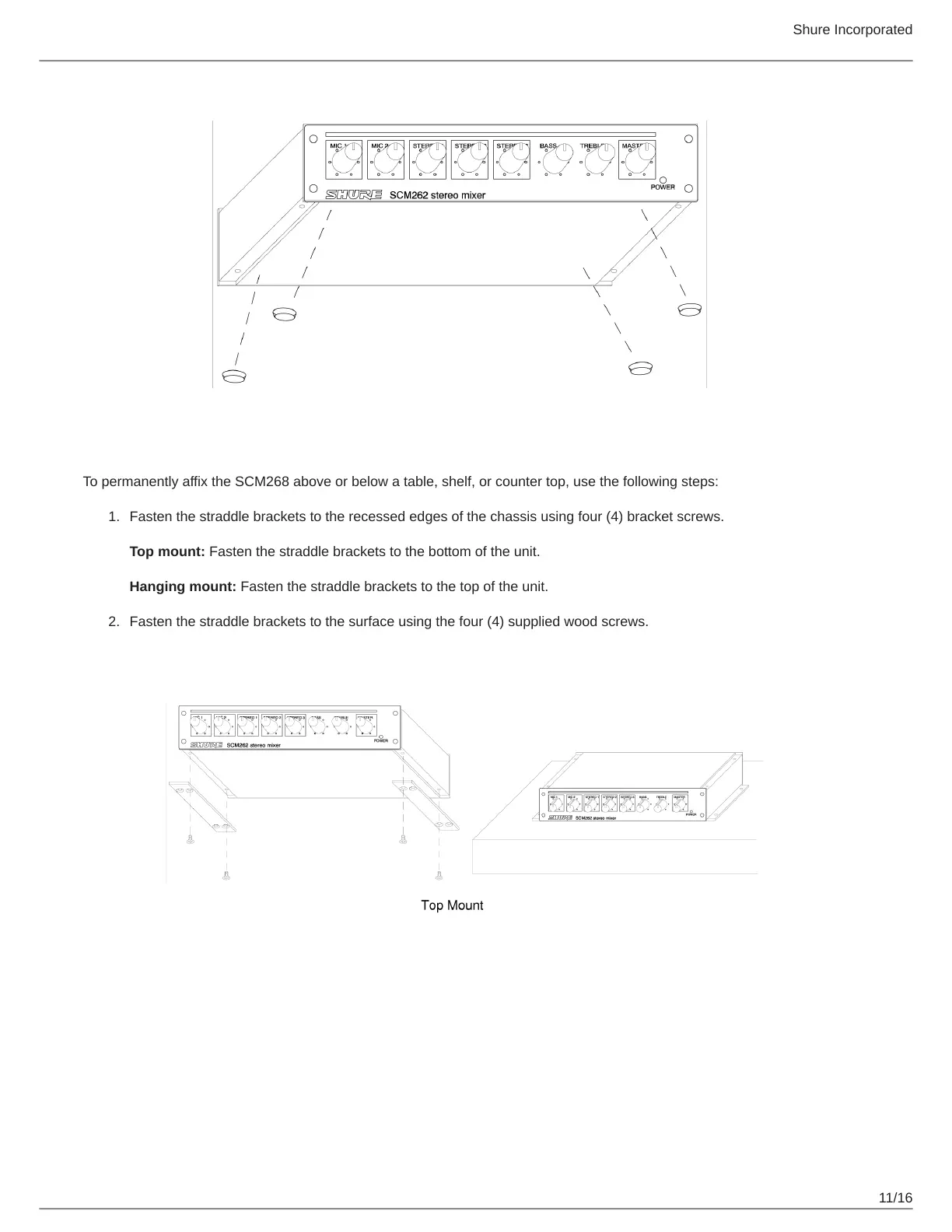

Fixed Installation
To permanently affix the SCM268 above or below a table, shelf, or counter top, use the following steps:
Fasten the straddle brackets to the recessed edges of the chassis using four (4) bracket screws.
Top mount: Fasten the straddle brackets to the bottom of the unit.
Hanging mount: Fasten the straddle brackets to the top of the unit.
Fasten the straddle brackets to the surface using the four (4) supplied wood screws.

Shure SCM268 Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	4 channels
Digital sound processing	- bit
Microphone input impedance	1.2 Ω
Output impedance	870 Ω
Total Harmonic Distortion (THD)	0.25 %
DJ mixer	-
Product color	Black
Video capability	No
AC input voltage	220 - 240 V
Power consumption	30 mA
AC input frequency	50 / 60 Hz
AUX in	Yes
AUX out ports	1
Number of microphone inputs	4
