Shure SLX User Manual

10
Shure SLX Wireless

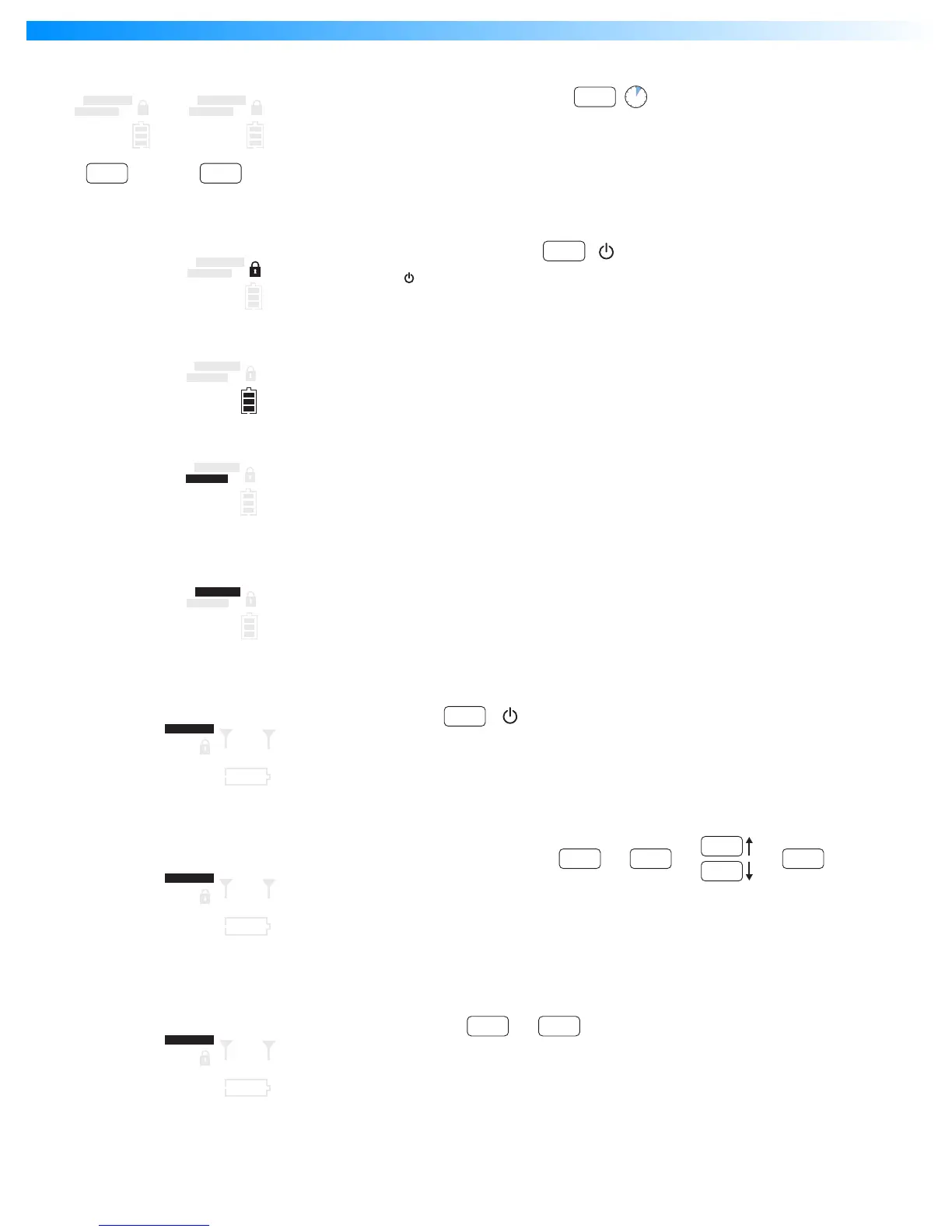

SLX1 and SLX2 Transmitter Programming
Manually Select a Group and/or Channel
1. Press and hold the select button until the GROUP and CHANNEL displays begin to
alternate.
2. To change the group setting, release the select button while GROUP is displayed  .
While GROUP is flashing, pressing select increases the group setting by one.
3. To change the channel setting, release the select button while CHANNEL is displayed
 . While CHANNEL is flashing, pressing select increases the channel setting by one.
Lock or Unlock Transmitter Settings
Press the mute/ and select buttons simultaneously to lock or unlock the transmitter set-
tings. When locked, the current settings cannot be changed manually. Locking the transmitter
does not disable infrared synchronization.
Battery Status
Indicates charge remaining in transmitter batteries.
Master List Indicator
Indicates that a master list frequency is currently in use. No group or channel information is
displayed.
Note: the transmitter cannot be used to change master list settings.
INCOMPATIBLE Frequency Warning
The INCOMPATIBLE warning indicates that the receiver and transmitter are set to incompatible fre-
quency bands. Contact your Shure retailer for assistance.
The Master Frequency List
Using the Master List
The “Master List” of frequencies should be accessed only by experienced users in situations
which call for precise frequency selection. The “Master List” is a comprehensive index of all avail-
able frequencies in 25 kHz increments. (125 kHz increments in the JB band.)
To access the Master List, hold down the menu button while powering on the SLX receiver.
Select Frequencies in the Master List
While FREQUENCY SELECT is flashing, the select button scrolls down through all available
frequencies; the menu button scrolls up. Press and release to change the frequency in 25 kHz
increments; press and hold to scroll quickly.
When the correct frequency is displayed, either wait five seconds for the screen to time out,
or press sync.
Exit the Master List
To exit the Master List and return to normal system operations, press menu, then select.
select
5
i8 i8
MASTER LIST
Incompatible
GROUP
CHANNEL
i8 i8
MASTER LIST
Incompatible
GROUP
CHANNEL


select select
select
+
i8 i8
MASTER LIST
Incompatible
GROUP
CHANNEL
i8 i8
MASTER LIST
Incompatible
GROUP
CHANNEL
i8 i8
MASTER LIST
Incompatible
GROUP
CHANNEL
i8 i8
MASTER LIST
Incompatible
GROUP
CHANNEL
menu
+
888.888
GROUP
CHANNEL
AUTO
CHANNEL
SELECT
GROUP
SELECT
MANUAL
CHANNEL
SELECT
DISPLAY
FREQUENCY
SELECT
EXIT
MASTER
LIST
ANTENNA
A
B
MASTER LIST
MHz
LOW BATT
menu select
select
menu

sync

888.888
GROUP
CHANNEL
AUTO
CHANNEL
SELECT
GROUP
SELECT
MANUAL
CHANNEL
SELECT
DISPLAY
FREQUENCY
SELECT
EXIT
MASTER
LIST
ANTENNA
A
B
MASTER LIST
MHz
LOW BATT
2x
menu select

888.888
GROUP
CHANNEL
AUTO
CHANNEL
SELECT
GROUP
SELECT
MANUAL
CHANNEL
SELECT
DISPLAY
FREQUENCY
SELECT
EXIT
MASTER
LIST
ANTENNA
A
B
MASTER LIST
MHz
LOW BATT

Shure SLX Specifications

General

Operating Range	100 m (300 ft), typical
Dynamic Range	>100 dB
Total Harmonic Distortion	<0.5%, typical
RF Output Power	10 mW (region dependent)
Receiver Outputs	XLR and 1/4"
Transmitter Type	Handheld or Bodypack
Microphone Capsule (Handheld)	Shure SM58 or Beta 58A (depending on model)
Power Supply	Transmitter: Batteries
Modulation	FM
Signal-to-Noise Ratio	>100 dB
Weight (Transmitter)	Handheld: 290 g
Frequency Range	470-952 MHz (region dependent)
