7
English

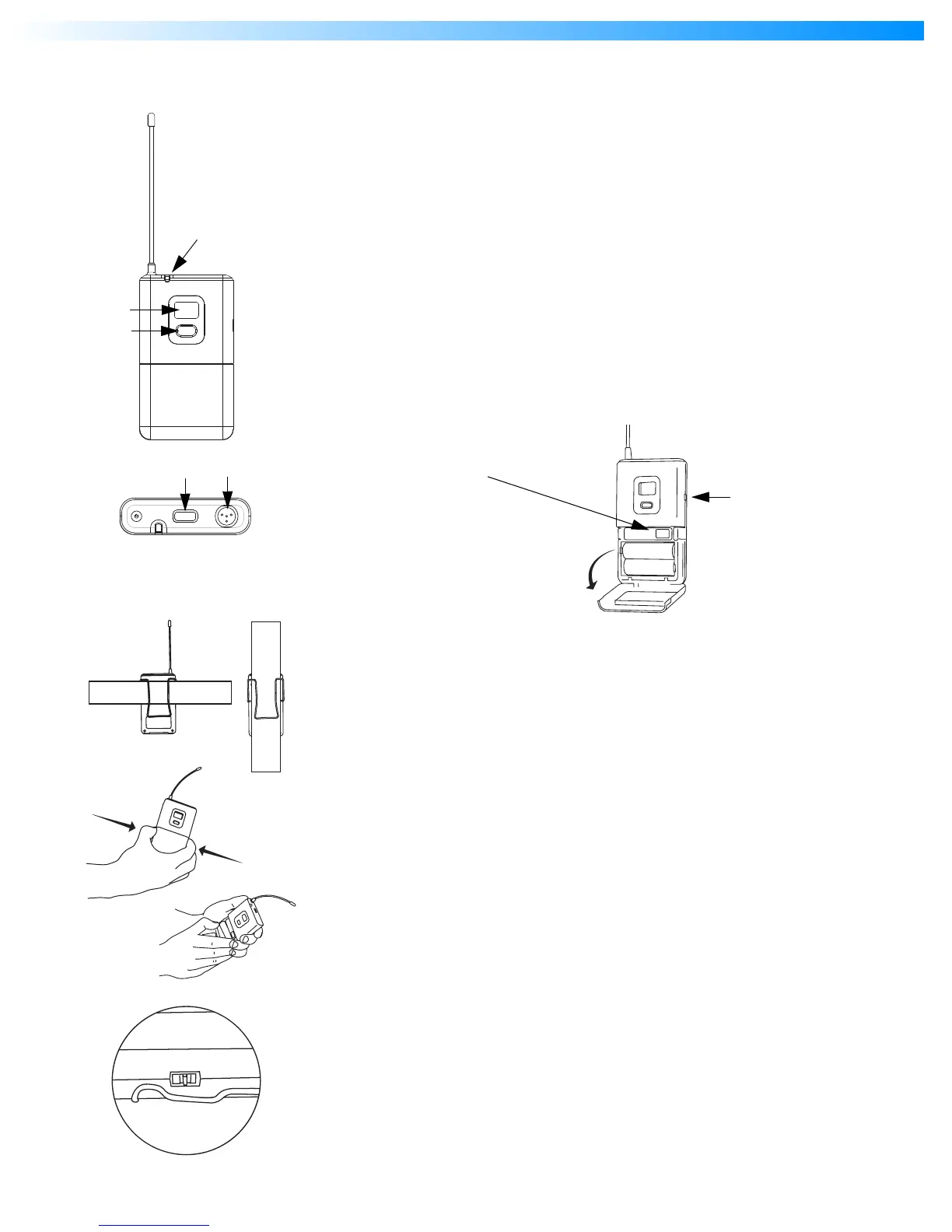

SLX1 Bodypack
Transmitter
Features
Antenna
Power / Infrared (IR) / Mute indicator
Green: ready
Amber: mute on
Flashing red: IR transmission in process
Glowing red: battery power low
Pulsing red: battery dead (transmitter cannot be turned off until batteries are changed)
LCD screen
See “SLX1 and SLX2 Transmitter Programming” on page 10.
Select switch
See “SLX1 and SLX2 Transmitter Programming” on page 10.
On-off / mute switch
Press and hold to turn on or off. Press and release to mute or unmute.
4-Pin Microphone Input Jack
IR port
Receives infrared beam to synchronize frequencies. When using multiple systems, only one
transmitter IR port should be exposed at a time.
Gain adjustment switch (see below)
Wearing the Bodypack Transmitter
•
Clip the transmitter to a belt
or slide a guitar strap through the transmitter clip
as
shown.
•
For best results, slide the transmitter until the belt
is pressed against the base of the
clip.
Changing Batteries
•
Expected life for an Alkaline battery is approximately 8 hours.
•
When the transmitter light glows red, the batteries should be changed immediately, as
shown on the left.
Adjusting Gain
•
Three gain settings are available on the SLX1. Choose the appropriate setting for your
instrument.
•
mic
: Microphone (higher amplification)
•
0
: Guitar with passive pickups (medium amplification)
•
-10
: Guitar with active pickups (lower amplification)
•
If the receiver LED indicates the input volume is overloading the receiver, try switching
the gain to a lower setting.
-10
0 mic
