5
English

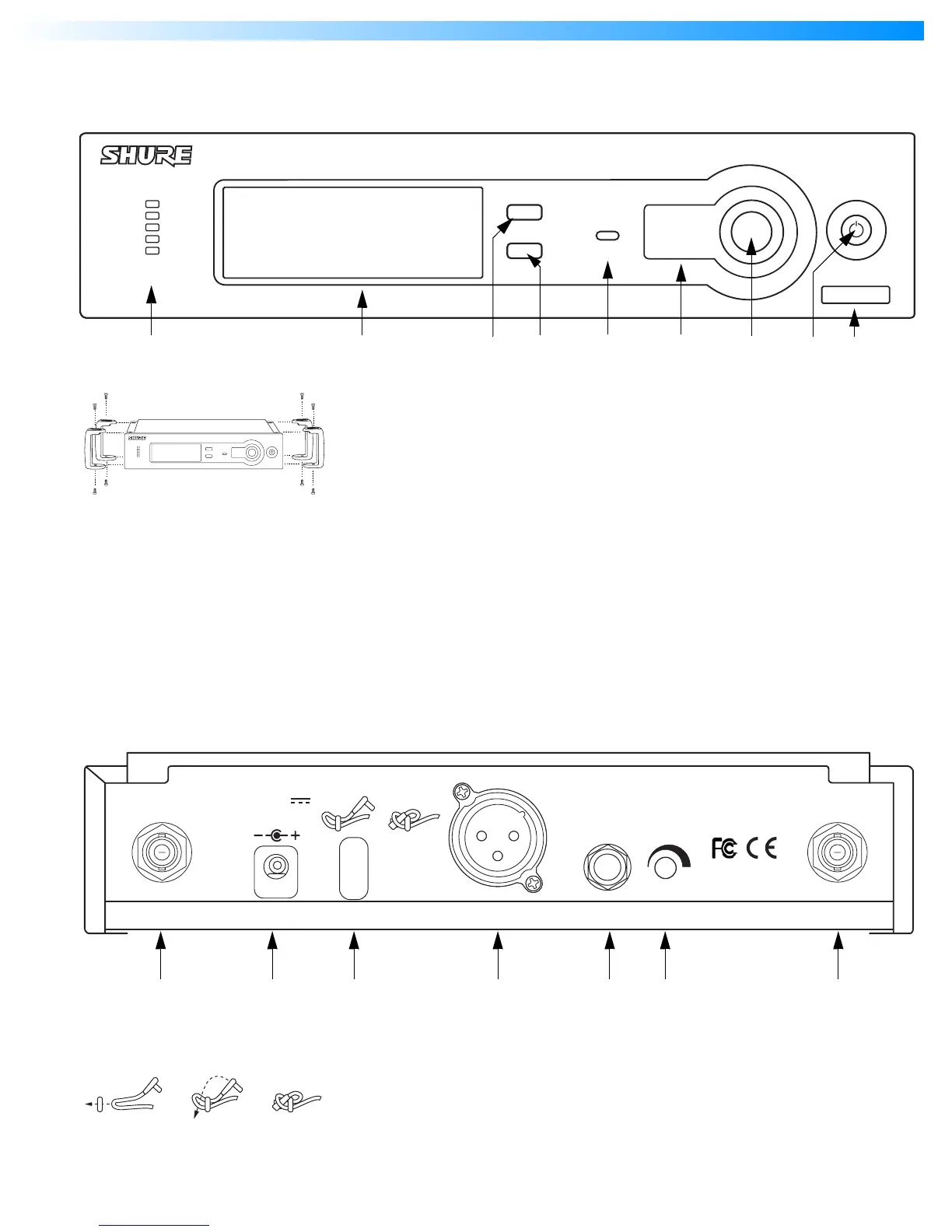

SLX4 Receiver Features
Front Panel
Audio LED
Indicates strength of incoming audio
signal.
LCD panel
See “SLX Programming” on page 9.
Menu switch
Press to scroll through menu options.
See “SLX Programming” on page 9.
Select switch
Press to select the currently displayed
menu option. See “SLX Programming”
on page 9.
Sync Ready Indicator
Illuminates when frequencies of
receiver and transmitter are
synchronized. See “SLX Programming”
on page 9.
Infrared (IR) port
Broadcasts IR signal to transmitter to
synchronize frequencies.
Sync Button
Press to initiate IR connection between
receiver and transmitter. See “SLX
Programming” on page 9.
On/Off switch
Tap to turn on, hold to turn off.
Frequency Band
Indicates the name and range of
receiver frequency band.
Adding protective bumpers
Recommended if receiver is not rack
mounted. Use supplied screws. For
rack-mounting instructions, See “Rack-
Mounting an SLX Receiver” on
page 11.
Back Panel
Antenna jack B
AC adapter jack
Adapter cord tie-off
Follow steps shown to secure cord to
receiver body
XLR output jack
1/4” output jack
Volume adjustment dial
Decreases receiver output level. See
“Receiver Volume Control” on page 12.
Antenna jack A
audio
menu
select ready
sync
SLX4
H5 518-542 Mhz
power
ANTENNA B
POWER
MIC OUT LINE OUT VOLUME ANTENNA A
BALANCED
LOW Z
UNBALANCED
HIGH Z
12–18 V
160 mA
SHURE INCORPORATED
NILES, IL 60714
SLX4 RECEIVER
IC: 616A–SLX4
