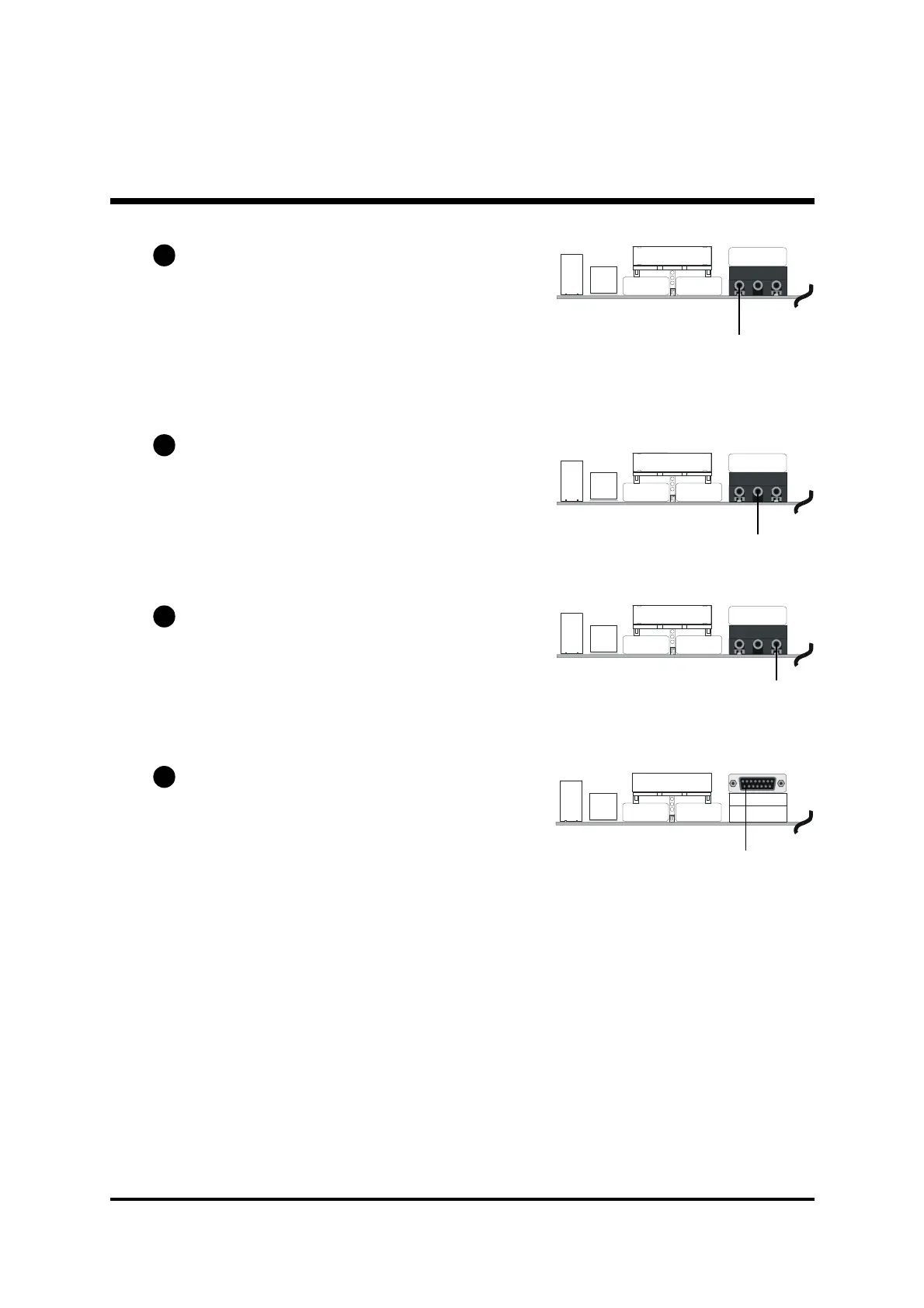

Line-Out
Line-Out is a stereo output port through
which the combined signal of all internal
and external audio sources on the board
is output. It can be connected to 1/8-inch
TRS stereo headphones or to amplified
speakers.
Line-In
Line-In is a stereo line-level input port that
accepts a 1/8-inch TRS stereo plug. It can
be used as a source for digital sound re-
cording, a source to be mixed with the
output, or both.
Mic-In
MIC-IN is a 1/8-inch jack that provides a
mono input. It can use a dynamic mono
or stereo microphone with a resistance of
not more than 600 Ohms.
MIDI/GAME Port
The MIDI/GAME port is a 15-pin female
connector. This port can be connected to
any IBM PC compatible game with a 15-
pin D-sub connector.
MIDI Instrument Connection
You will need a MIDI adapter to connect a MIDI compatible instrument
to the sound card. The MIDI adapter can in turn be connected to the
Joystick/MIDE port. You will also need the MIDI sequencing soft-
ware to run MIDI instruments with your computer.
B5
B8
B6
B7
Line-Out
MIDI/GAME Port
Line-In
Mic_in
