5.5 RS485 Modbus communication protocol
The digital communication protocol is based on standard Modbus RTU Half-plex mode. A master
(PC or PLC) can communicate with multiple slaves (the current product) for data exchange and
communication parameter configuration.
5.5.1 Hardware connection

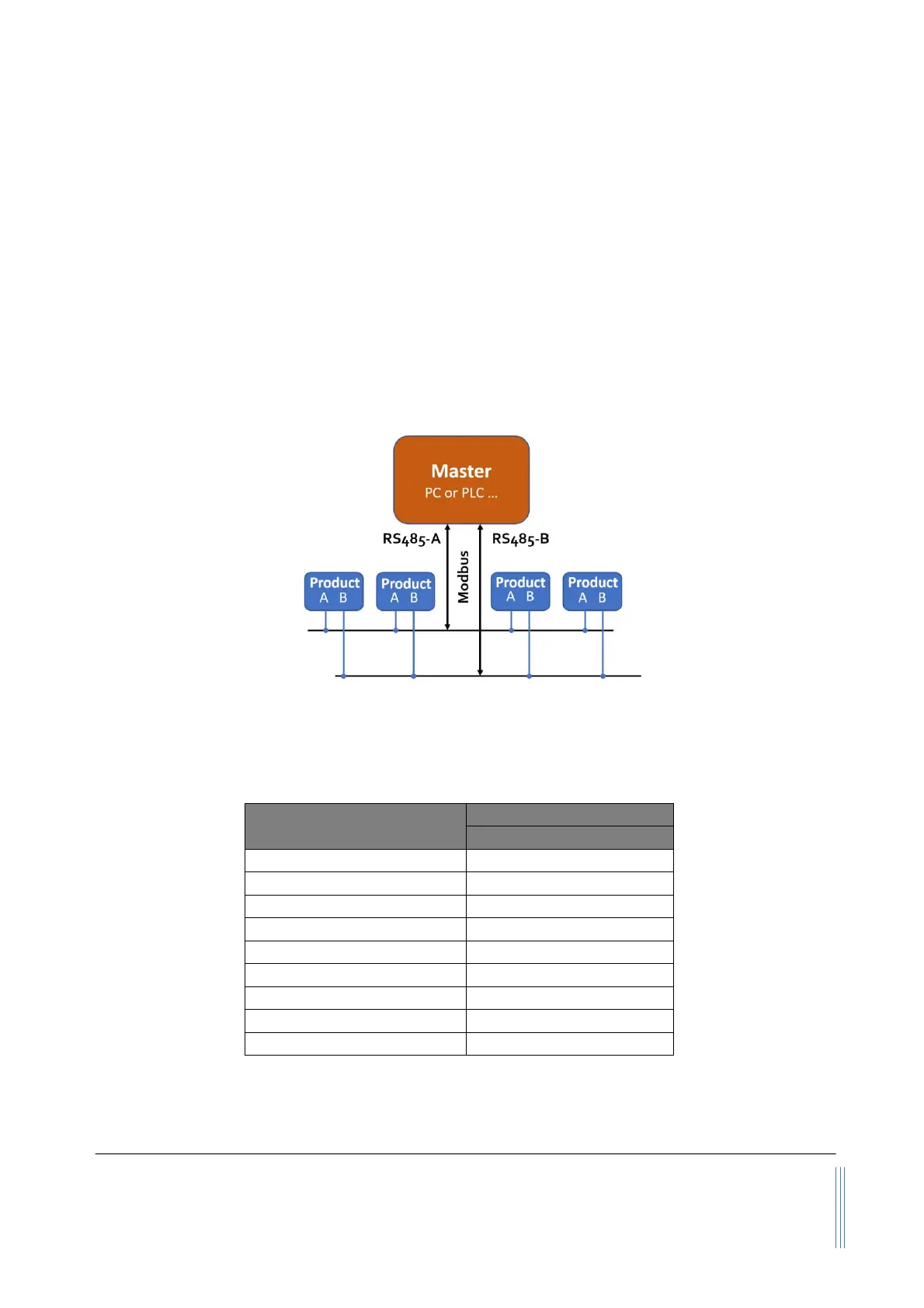

The hardware layer is
TIA/EIA
-485-A, as illustrated below. In this configuration, the product
(MF5806E1) is a slave.
5.5.2 Communication parameters
The PC UART communication parameters are listed in the following table.
Parameters
Protocol
RTU
Baud rate (Bits per second)
9600 bps
Start bits
1
Data bits
8
Stop bits
1
Even/Odd parity
None
Bits period
104.2 μsec
Bytes period
1.1458 msec
Maximum data length
20
Maximum nodes
247
