Siargo MF5806E1 - Power and Data Cable Description; Mechanical Dimensions

www.Siargo.com MF5806E1 User Manual 8 | Page
3.3 Power and data cable description
Table 3.2: MF5806E1 wire assignment.

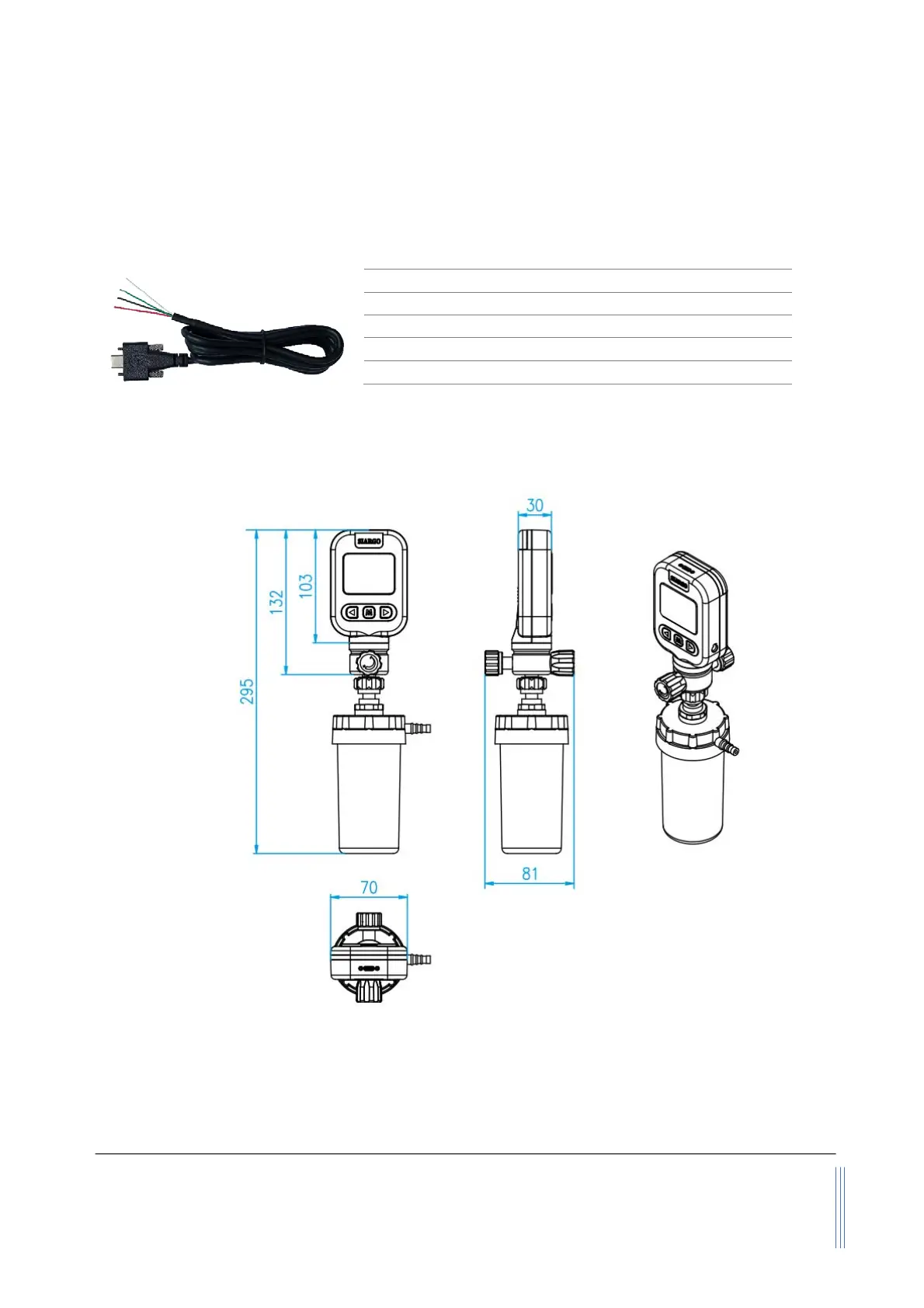

Figure 3.3: MF5806E1 data cable
3.4 Mechanical dimensions
Note: The water cup size may be different from region to region.
Figure 3.4: MF5806E1 dimensions
Wire
Color
Definition
1
Red
Power supply (+24 Vdc)
2
Black
GND, ground
3
Green
RS485A (+)
4
White
RS485B (-)
