Sicam SBM 95 - Programming and Fixing Adhesive Weights with Special Gauge; Programming and Fixing Adhesive Weights on Aluminium and Light Alloy Rims

COD.642400 Rev. 1
16
PROGRAMMING AND FIXING ADHESIVE WEIGHTS WITH SPECIAL GAUGE
For aluminium and light alloy rims

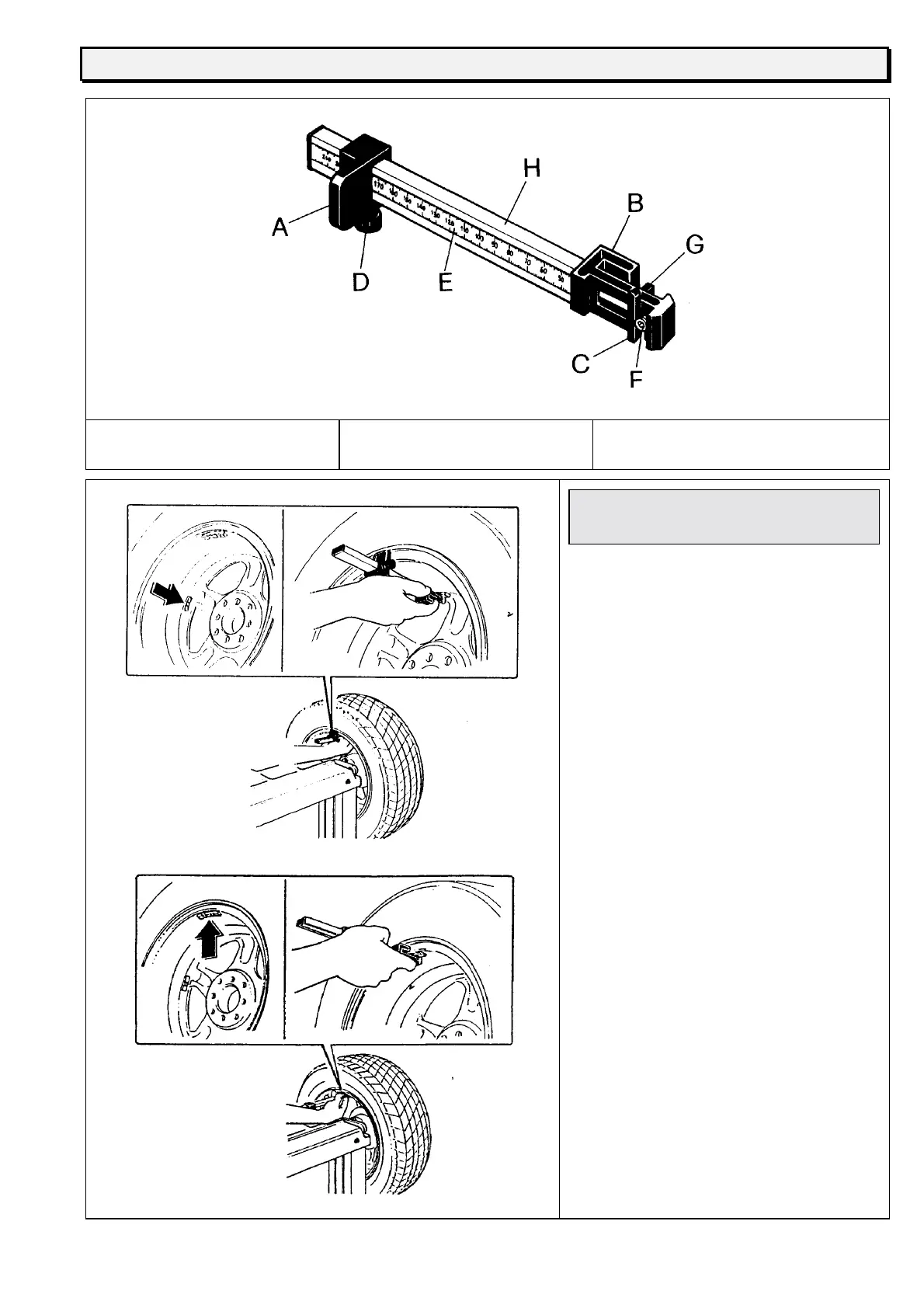

Fig.22a : SPECIAL GAUGE
A: BOTTOM GAUGE SLIDE
B: WEIGHT POSITION GAUGE HEAD
C: EXTERNAL JAWS
D: SCREW KNOB
E: MILLIMETRE PLATE
F: EXTRUDER
G: INTERNAL JAWS FOR WEIGHT FIXING
H: HANDLE WITH PLATE SEAT
fig.22b
fig.22c
PROGRAMMING AND FIXING ADHESIVE
WEIGHTS
ON ALUMINIUM AND LIGHT ALLOY RIMS.
A SPECIAL GAUGE is supplied on request for
programming (ALU) and for fixing adhesive
weights on aluminium and light alloy rims.
This gauge, functioning only in the system ALU
2 and 3, allows the determination with the
maximum of precision (and according to the
form of the rim) the exact position for the
positioning of adhesive weights.
Refer to figures 21 a, b, c, and proceed as
follows:
n Set the machine on the ALU 2 program
n Position the gauge with the base (A) on the
inside edge of the rim.
n Slide the base A on the millimetre cursor (E)
to position the outside jaws (C) to the best
position required for the fixing of the weight.
n Fix the base (A) with the screw knob (D).
n Read the measurement in mm. and enter it on
the keyboard as rim width.
n Run a balancing cycle. The weight values will
be displayed (internal and external).
n Move the wheel into position and mount the
weight (given on the display as external) on the
outside jaws (C).
n Move the base (A) to the edge of the rim (12
o'clock) ad fix the weight with the extruder (F)
(see fig. 22b).
n Move the wheel into position and mount the
weight (given on the display as internal) on the
inside jaws (G).
n Move the gauge head (B) to the edge of the
rim and fix the weight with the extruder (F) (see
fig. 22c).
N.B. For the ALU 3 program the outside
procedure remains the same; for the internal fix
the spring weight on the edge of the rim.
