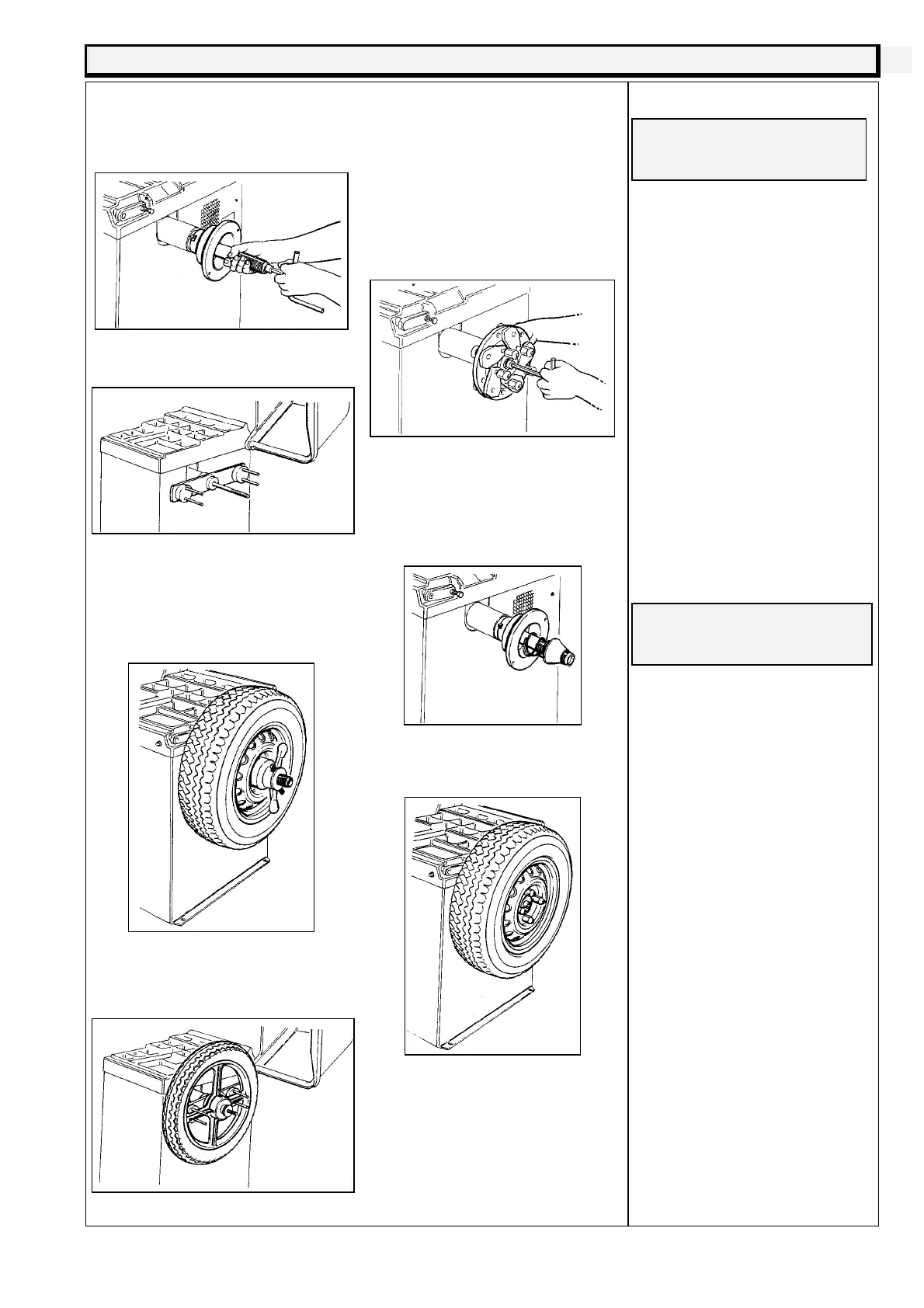

FLANGE INSTALLATION
fig.9
fig.11
fig.13
fig.15
fig.10
fig.12
fig.14
FLANGE MOUNTING
Before mounting the flange on
the machine it is advisable to
clean the machine axle cone and
the flange hole.
Bad flange adjustment would
influence balancing precision.
The illustrations show the flange
fixing systems:
• Fig. 9 shows shows the cone
flange fixing system.
• Fig. 10 shows the universal
flange fixing system
• Fig. 11 shows the motorcycle
flange fixing system.
WHEEL ATTACHMENT
CAR WHEEL ATTACHMENT
• Figs. 12 and 13 show the
attachment system for car
wheels using the cone flange.
• Fig. 14 shows the attachment
system for car wheels using
the universal 3/4/5 hole flange.
MOTORCYCLE WHEEL
ATTACHMENT
• Fig. 15 shows the attachment
system for motorcycle wheels
using the motorcycle flange.
